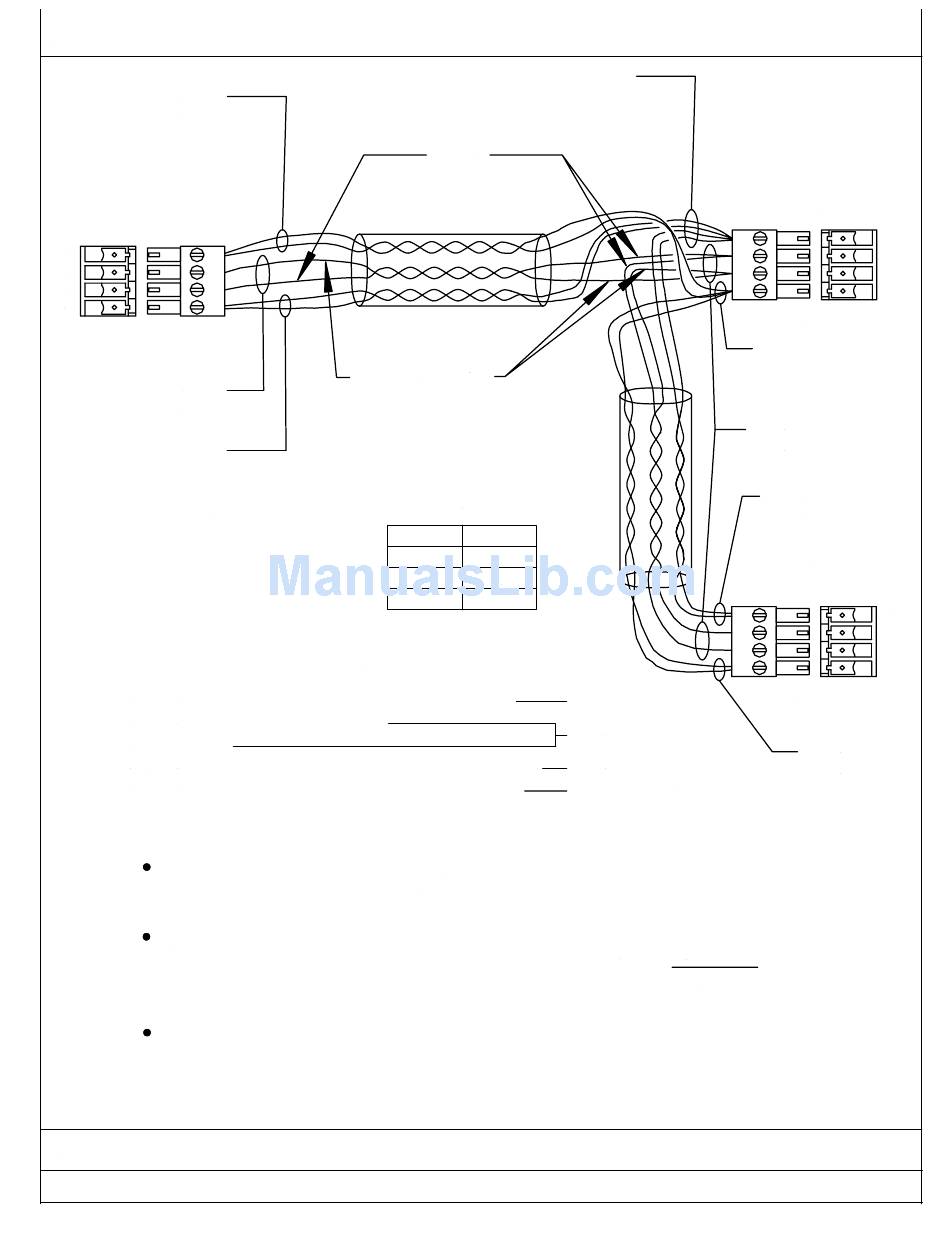

CRESNET MINI NETWORK CAT 5 INTERCONNECT DRAWING DATA SHEET

TWISTED
PAIR A
TO
CONTROL SYSTEM
G
Z
Y
24
FRONT VIEW
TWISTED
PAIR B
TWISTED
PAIR C
TWISTED PAIR D
UNUSED (NOT SHOWN)

RECOMMENDED CATEGORY 5 CABLE COLOR CODE

= GREEN AND WHITE w/GREEN STRIPE
GND
Z = WHITE w/BLUE STRIPE
Y = BLUE
24 = ORANGE AND WHITE w/ORANGE STRIPE
SPARES = BROWN AND WHITE w/BROWN STRIPE
CAUTION: POSSIBLE EQUIPMENT DAMAGE IF MISWIRED.
DO NOT POWER UP SYSTEM UNTIL ALL WIRING IS VERIFIED.
CARE SHOULD BE TAKEN TO ENSURE DATA (Y,Z)
AND POWER (24,G) CONNECTIONS ARE NOT CROSSED.
TO CALCULATE MAX. CAT 5 CABLE LENGTH
L = MAXIUM CABLE LENGTH (FEET)
PF = TOTAL POWER FACTOR FOR EQUIPMENT
ON RUN (WATTS)
MODEL CNHBLOCK: NETWORK DISTRIBUTION
BLOCK IS RECOMMENDED FOR TESTING
PURPOSES AND CONVENIENCE IN WIRING.
CRESTRON ELECTRONICS, INC. ROCKLEIGH, N.J. 1-888-CRESTRON
Specifications subject to change without notice
BLUE
WHITE
w/BLUE STRIPE

1 TO 1 PINOUT REFERENCE

24 24
Y Y
Z Z
G G
TWISTED
PAIR C
PAIR A
PAIR B
PAIR C
PAIR D (NOT SHOWN)
3000
L =
PF
04.02
TO
NETWORK DEVICE
24
Y
Z
G
FRONT VIEW
TWISTED
PAIR A
TWISTED
PAIR B
TWISTED
PAIR C
TO
NETWORK DEVICE
24
Y
Z
G
FRONT VIEW
TWISTED
PAIR A
