Purpose

Addendum #1 for DOC. 6347B

The purpose of this addendum is to provide correction to a diagram and provide

additional information not supplied with the latest version of the CLS/CLSI-C6/C6M

Operations Guide (Doc. 6347). Specifically, this addendum:

•

Corrects the hardware hookup diagram on page 11.

•

Adds a note on page 16 defining which load types to choose when

using expansion modules.

The following diagram replaces the one that follows the paragraph on page 11

describing hardware hookup procedures. The diagram removes specific rating

information for the circuit breaker supplying power to the iLux unit, and instead

refers to the specifications to determine the appropriate rating. The diagram also

includes information on the use of extension modules with the units.

ilux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M • 1

™

iLux

Lighting System

Table of Contents

Do you have a question about the iLux CLSI-C6 and is the answer not in the manual?

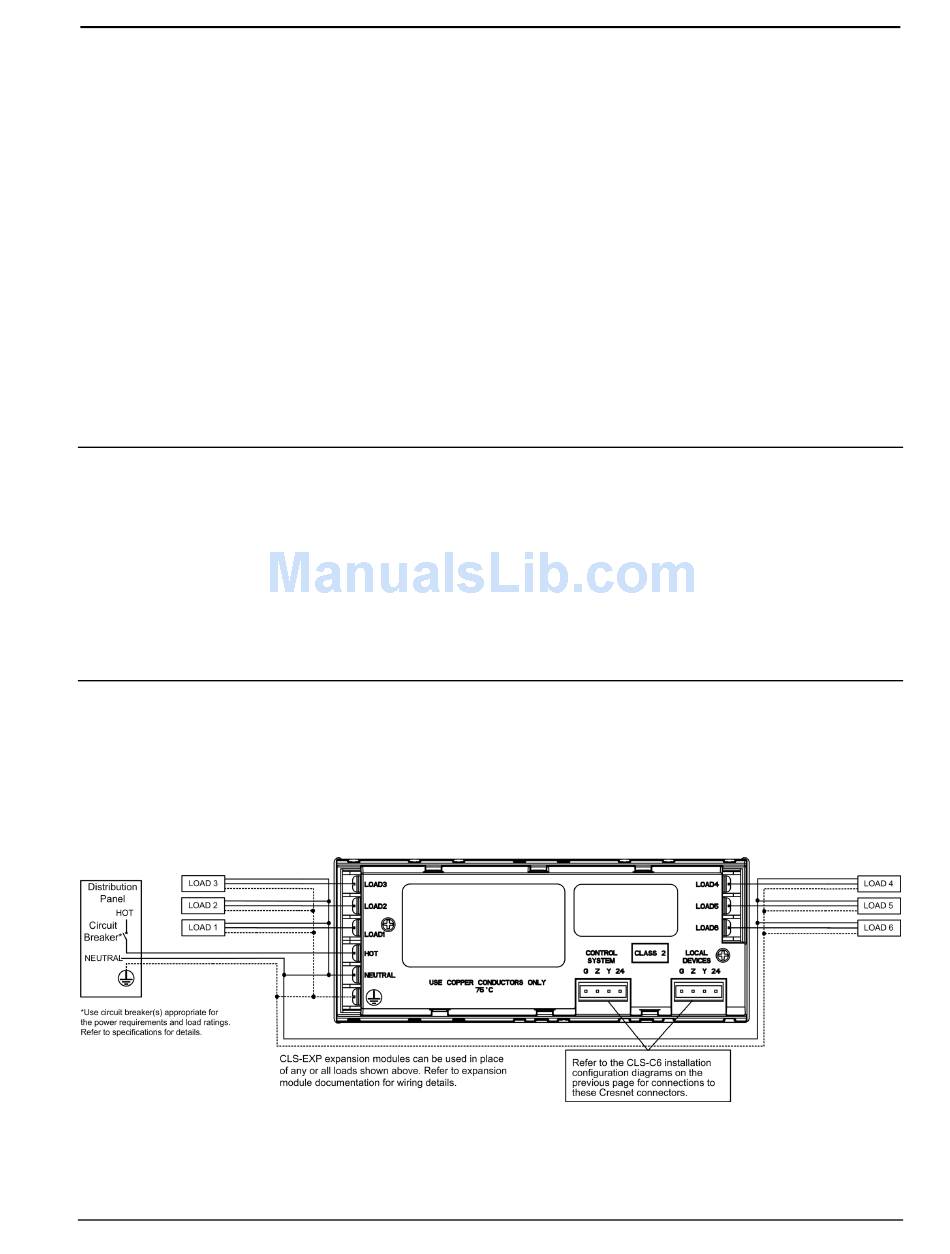

Page 1 Crestron CLS/CLSI-C6 & CLS/CLSI-C6M ™ ilux Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M Purpose The purpose of this addendum is to provide correction to a diagram and provide additional information not supplied with the latest version of the CLS/CLSI-C6/C6M Operations Guide (Doc. 6347). Specifically, this addendum: Correction of Hookup Diagram The following diagram replaces the one that follows the paragraph on page 11 describing hardware hookup procedures.
Page 2 ™ iLux Lighting System Addition of Note Add the following at the beginning of page 16. The note defines the selection of load types when using expansion modules as loads on an iLux lighting system. NOTE: When using an expansion module for dimmed loads, choose the Incandescent load type;...
