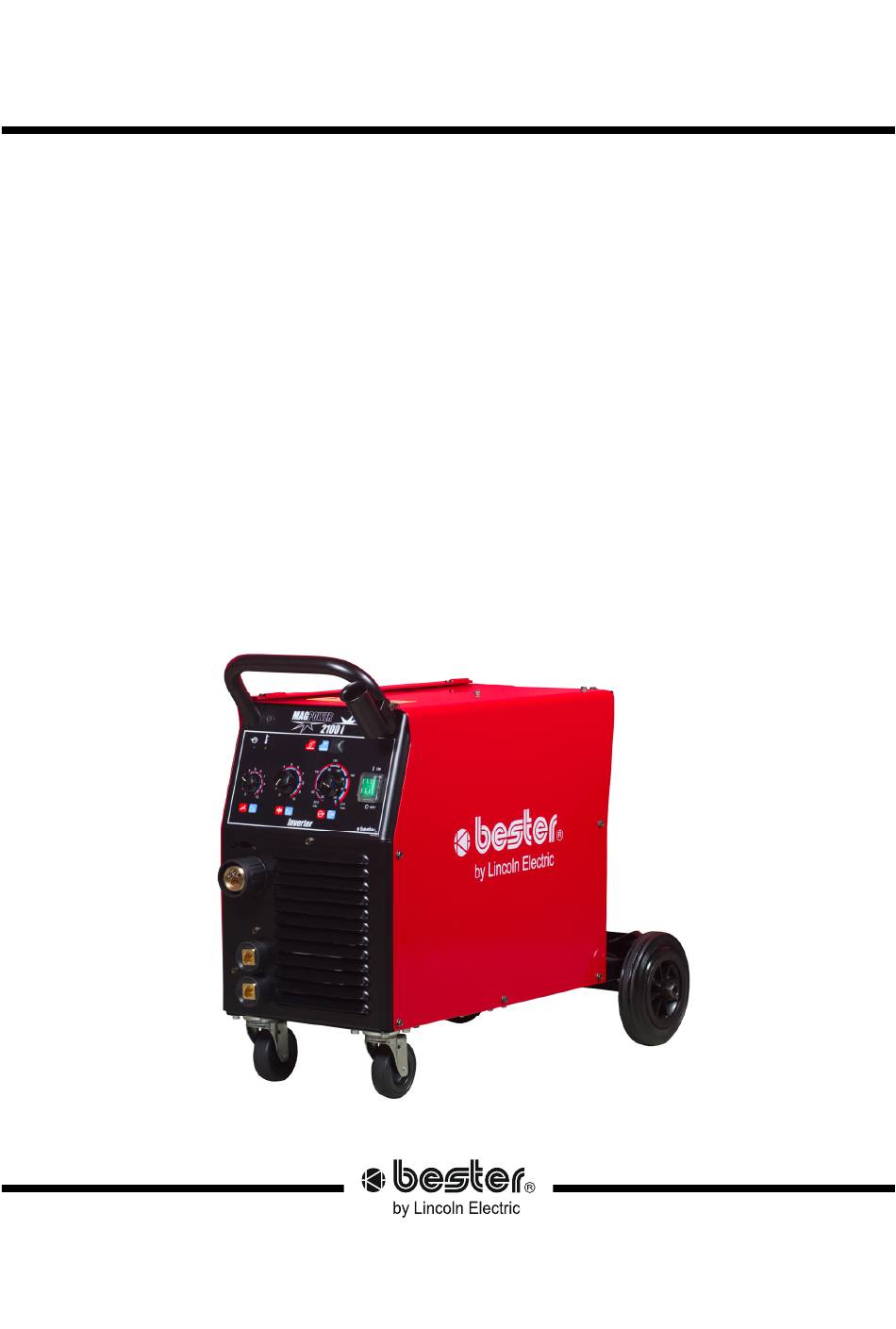

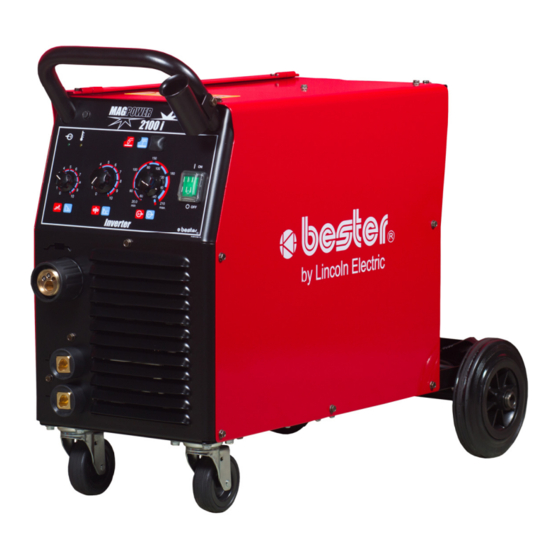

- Page 1 I-207-558-1 12/2020 REV02 MAGPOWER 2100 i OPERATOR’S MANUAL ENGLISH Lincoln Electric Bester Sp. z o.o. ul. Jana III Sobieskiego 19A, 58-260 Bielawa, Poland www.lincolnelectric.eu...
-
Page 2: Table Of Contents
12/05 THANKS! For having chosen the QUALITY of the Lincoln Electric products. Please Examine Package and Equipment in case of Damage. Claims for material damaged in shipment must be notified immediately to the dealer. For future reference record in the table below your equipment identification information. Model Name, Code & Serial Number can be found on the machine rating plate. -
Page 3: Technical Specifications
Technical Specifications NAME INDEX MAGPOWER 2100 i B18252-1 INPUT Input Voltage U EMC Class Frequency 230 V ± 10% 50 / 60 Hz 1 – phase Input Power at Rated Cycle Input Amperes I 1max 7,6 kVA @ 20 % Duty Cycle (40°C) -
Page 4: Eco Design Information
Efficiency and idle power consumption: Efficiency when max power consumption Index Name Equivalent model / Idle power consumption B18252-1 MAGPOWER 2100 i 82,9% / 45W No equivalent model Idle state occurs under the condition specified in below table IDLE STATE Condition Presence... - Page 5 Typical gas usage for MIG/MAG equipment: DC electrode positive Wire Wire Feeding Gas flow Material type diameter Shielding Gas Current Voltage [m/min] [l/min] [mm] Carbon, low 0,9 ÷ 1,1 95 ÷ 200 18 ÷ 22 3,5 – 6,5 Ar 75%, CO alloy steel Aluminium 0,8 ÷...
-
Page 6: Electromagnetic Compatibility (Emc)
Electromagnetic Compatibility (EMC) 11/04 This machine has been designed in accordance with all relevant directives and standards. However, it may still generate electromagnetic disturbances that can affect other systems like telecommunications (telephone, radio, and television) or other safety systems. These disturbances can cause safety problems in the affected systems. Read and understand this section to eliminate or reduce the amount of electromagnetic disturbance generated by this machine. -
Page 7: Safety
Safety 11/04 WARNING This equipment must be used by qualified personnel. Be sure that all installation, operation, maintenance and repair procedures are performed only by qualified person. Read and understand this manual before operating this equipment. Failure to follow the instructions in this manual could cause serious personal injury, loss of life, or damage to this equipment. Read and understand the following explanations of the warning symbols. - Page 8 WELDING SPARKS CAN CAUSE FIRE OR EXPLOSION: Remove fire hazards from the welding area and have a fire extinguisher readily available. Welding sparks and hot materials from the welding process can easily go through small cracks and openings to adjacent areas. Do not weld on any tanks, drums, containers, or material until the proper steps have been taken to insure that no flammable or toxic vapors will be present.
-
Page 9: Introduction
The machinery. Normal operation may adversely affect welding machine MAGPOWER 2100 i must be connected the operation of nearby radio controlled machinery, to a correctly installed plug-in socket with an earth pin. - Page 10 Power Source Placement WARNING Avoid excessive dust, acid and corrosive materials in the air. Keep protected from rain and direct sun when in use outdoors. There should be 500 mm space about for the welding machine to have good ventilation. Use adequate ventilation when in confined areas.
- Page 11 7. Thermal Overload Indicator: It indicates that 13. Wire Drive (for GMAW, FCAW-SS process): 2-Roll the machine is overloaded or that the cooling wire drive. is not sufficient. 14. Welding Wire (for GMAW / FCAW-SS). WARNING 15. Spooled Wire (for GMAW / FCAW-SS): The machine If the welding current exceed 200 A, output power will be does not include a spooled wire.
- Page 12 Table 1. Table 2. English English...
- Page 13 Wire Spool Type S200 Loading Wire Spool Loading Wire spool type S300 and BS300 can be installed on the wire spool support without adapter. WARNING ® Turn the input power OFF at the welding power source Wire spool type S200, B300 or Readi-Reel can be installed, but the applicable adapter must be purchased.
- Page 14 Wire Spool Type B300 Loading WARNING Position the spool type B300 so that it will rotate in a WARNING direction when feeding so as to be de-reeled from bottom Turn the input power OFF at the welding power source of the spool. before installation or changing a wire spool.
- Page 15 MAGPOWER 2100 i is equipped with drive roll V0.8/V1.0 Turning the screw M10 anticlockwise decreases the for steel wire. For others wire sizes, is available the proper spring tension and you can decrease the brake torque.
- Page 16 Screw fastening cap [38]. Manually feed the wire from the wire reel, the wire MAGPOWER 2100 i can be used to welding GMAW and through the guide tubes, over the roller and guide tube FCAW-SS process. of Euro Socket into liner of gun.
- Page 17 Welding SMAW (MMA) Process Maintenance MAGPOWER 2100 I does not include the electrode holder with lead necessary for SMAW welding, but the WARNING one can be purchased separately. See "Accessories" For any repair operations, modifications or maintenances, chapter. it is recommended to contact the nearest Technical...
- Page 18 Customer Assistance Policy The business of The Lincoln Electric Company is manufacturing and selling high quality welding equipment, consumables, and cutting equipment. Our challenge is to meet the needs of our customers and to exceed their expectations. On occasion, purchasers may ask Lincoln Electric for advice or information about their use of our products.
-
Page 19: Weee
WEEE 07/06 Do not dispose of electrical equipment together with normal waste! In observance of European Directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE) and its implementation in accordance with national law, electrical equipment that has reached the end of its life must be collected separately and returned to an environmentally compatible recycling facility. -
Page 20: Suggested Accessories
Suggested Accessories K10429-15-3M The gas-cooled gun LGS150 G-3.0 to GMAW process - 3m K10429-15-4M The gas-cooled gun LGS150 G-4.0 to GMAW process - 4m K10429-15-5M The gas-cooled gun LGS150 G-5.0 to GMAW process - 5m KP10461-1 Gas nozzle conical Ø12mm KP10440-06 Contact Tip M6x25mm ECu 0.6mm KP10440-08...
