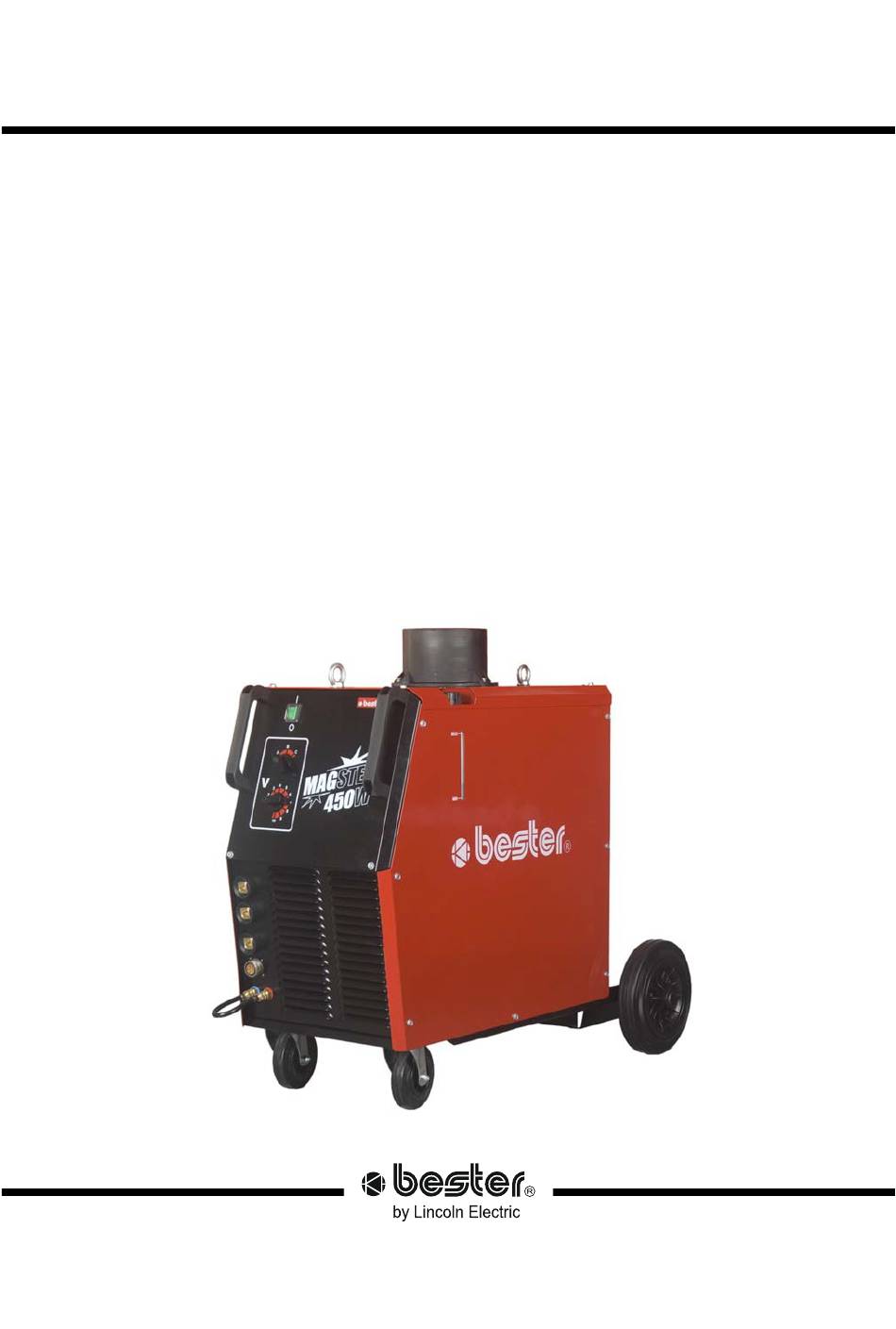

- Page 1 I-207-538-1 11/2020 REV04 Magster 380, 450, 450W OPERATOR’S MANUAL ENGLISH Lincoln Electric Bester Sp. z o.o. ul. Jana III Sobieskiego 19A, 58-260 Bielawa, Poland www.lincolnelectric.eu...
-
Page 2: Table Of Contents
12/05 THANKS! For having chosen the QUALITY of the Lincoln Electric products. Please Examine Package and Equipment in case of Damage. Claims for material damaged in shipment must be notified immediately to the dealer. For future reference record in the table below your equipment identification information. Model Name, Code & Serial Number can be found on the machine rating plate. -
Page 3: Technical Specifications
Technical Specifications NAME INDEX MAGSTER 380 B18223-2 MAGSTER 450 B18224-1 MAGSTER 450 B18224-2 MAGSTER 450W B18225-4 INPUT Input Voltage U Input Amperes I 1max 400V ± 10% 3-phase 450W Input Power [kVA] Power Factor cos Frequency 17,3 21,5 0,96 50 / 60 Hz... - Page 4 PHYSICAL DIMENSIONS Length Width Height Weight (Net) 145 kg 910mm 450mm 1010 mm 154 kg 450W 161 kg COOLING SYSTEM PARAMETERS & COOLANT Rated Cooling Power (V=1l/min) [kW] Maximum Liquid Pressure [MPa] 450W 0,32 Recommended 450W FREEZCOOL - W000010167 coolant Pre-packaged welding industry coolants.
-
Page 5: Eco Design Information
ECO design information The equipment has been designed in order to be compliant with the Directive 2009/125/EC and the Regulation 2019/1784/EU. Efficiency and idle power consumption: Efficiency when max power consumption Index Name Equivalent model / Idle power consumption B18225-4 MAGSTER 450W 66,2% / 300W No equivalent model... - Page 6 Typical gas usage for MIG/MAG equipment: DC electrode positive Wire Wire Feeding Gas flow Material type diameter Shielding Gas Current Voltage [m/min] [l/min] [mm] Carbon, low 0,9 ÷ 1,1 95 ÷ 200 18 ÷ 22 3,5 – 6,5 Ar 75%, CO alloy steel Aluminium 0,8 ÷...
-
Page 7: Electromagnetic Compatibility (Emc)
Electromagnetic Compatibility (EMC) 11/04 This machine has been designed in accordance with all relevant directives and standards. However, it may still generate electromagnetic disturbances that can affect other systems like telecommunications (telephone, radio, and television) or other safety systems. These disturbances can cause safety problems in the affected systems. Read and understand this section to eliminate or reduce the amount of electromagnetic disturbance generated by this machine. -
Page 8: Safety
Safety 11/04 WARNING This equipment must be used by qualified personnel. Be sure that all installation, operation, maintenance and repair procedures are performed only by qualified person. Read and understand this manual before operating this equipment. Failure to follow the instructions in this manual could cause serious personal injury, loss of life, or damage to this equipment. Read and understand the following explanations of the warning symbols. - Page 9 WELDING SPARKS CAN CAUSE FIRE OR EXPLOSION: Remove fire hazards from the welding area and have a fire extinguisher readily available. Welding sparks and hot materials from the welding process can easily go through small cracks and openings to adjacent areas. Do not weld on any tanks, drums, containers, or material until the proper steps have been taken to insure that no flammable or toxic vapors will be present.
-
Page 10: Installation And Operator Instructions
Installation and Operator Instructions Read this entire section before installation or operation of Input Supply Connection the machine. WARNING Location and Environment Only a qualified electrician can connect the welding This machine will operate in harsh environments. machine to the supply network. Installation the outlet plug However, it is important that simple preventative to power lead and connecting the welding machine had to measures are followed to assure long life and reliable... - Page 11 REAR PANEL Controls and Operational Features FRONT PANEL Figure 2 1. Bracket for fastening the gas cylinder. Figure 1 UWAGA 1. Power Switch: Turns the machine on/off. Switching on After installation, protect the shielding gas cylinder from is indicated by lighting up of the switch button. overturn with the chain.
- Page 12 Water Cooling System (Magster 450W Final Actions only) Connect the ground cable to the work piece with the work clamp. Connect the shielding gas cylinder to the shielding gas input through the gas regulator. Insert the plug of the power input cable of the welder into the mains socket.
- Page 13 The frequency of the maintenance operations may vary in Customer Assistance Policy accordance with the working environment where the The business of The Lincoln Electric Company is machine is placed. manufacturing and selling high quality welding equipment, consumables, and cutting equipment. Our challenge is to WARNING meet the needs of our customers and to exceed their Do not touch electrically live parts.
-
Page 14: Weee
WEEE 07/06 Do not dispose of electrical equipment together with normal waste! In observance of European Directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE) and its implementation in accordance with national law, electrical equipment that has reached the end of its life must be collected separately and returned to an environmentally compatible recycling facility. -
Page 15: Accessories Suggested
Accessories Suggested B10357-1 Verbindungskabel PZ-380-450-5M (Magster 380 &450) B10357-2 Verbindungskabel PZ-380-450-10M (Magster 380 &450) B10357-3 Verbindungskabel PZ-380-450-15M (Magster 380 &450) B10357-4 Verbindungskabel PZ-380-450-20M( Magster 380 &450) B10356-1 Verbindungskabel PZW-380-450-5M (Magster 450W) B10356-2 Verbindungskabel PZW-380-450-10M (Magster 450W) B10356-3 Verbindungskabel PZW-380-450-15M (Magster 450W)
