Medivators 2-8-633HAN Hookup Connection Manual

2-8-633HAN/2-8-633CAS
Using Medivators ® ADVANTAGE
ADVANTAGE HOOKUP and CHANNEL SEPARATOR
B
A
➂
LOCK UNLOCK
Minntech Corporation
Minneapolis, MN 55447 USA
763.553.3300
Minntech BV
The Netherlands
+31.45.5.471.471
➁
➀

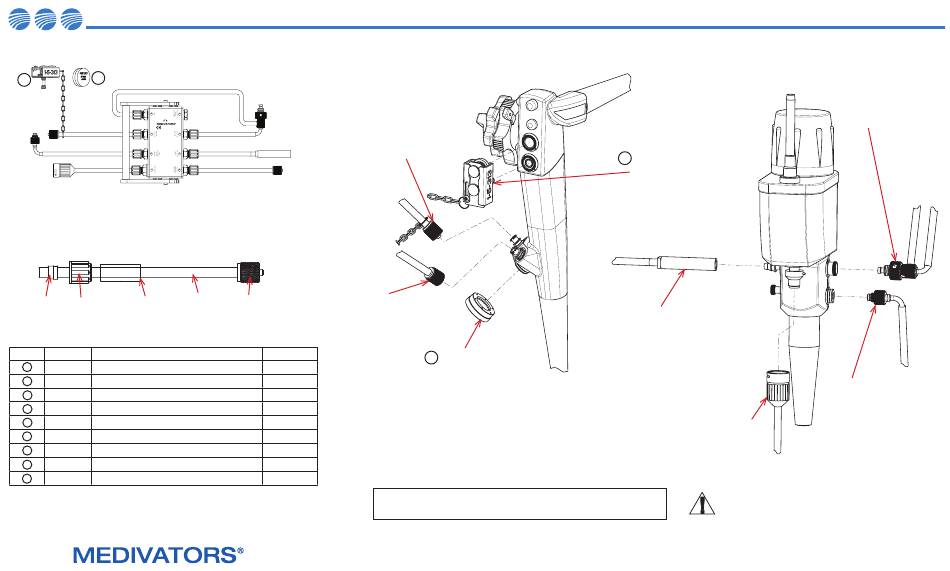

Each Advantage Hookup is comprised of multiple ports and connector assemblies. Each
port is labeled with a Port ID number (circled). This same number also identifies the
corresponding Connector Assembly. Each Connector Assembly is fitted with a specific
endoscope connector. (see Fig. 2).
EXAMPLE CONNECTOR ASSEMBLY (Figure 2)
Tubing
Ferrule
Connector Label
Coupling
CONNECTOR ASSEMBLY IDENTIFICATION CHART
Port ID Port Name Connector Assembly Description
1 LEAK TEST Leak Test Connector Assembly
2
JET/AUX Forward Water Jet Connector Assembly
3
BIOPSY Biopsy Inlet Connector Assembly
4
AIR Air/Water Connector Assembly
6 WATER Air/Water Connector Assembly
7 SUCTION Suction Connector Assembly
8 EXTRA Biopsy2 Inlet Connector Assembly
A NA Air/Water & Suction Port Separator
B NA Selector Switch Cleaning Cap
If a Connector Assembly needs replacement, locate the port number/name and use
the corresponding order number found in the Connector Assembly Identification Chart.
Connector Assemblies are specific to individual hookups. Check each Hookup Connection
Guide for relevant information.
HOOKUP CONNECTION GUIDE
® Automated Endoscope Reprocessors
(Figure 1)
➃➅
➂
➆
➇
➇ Biopsy2 Inlet Connector
Endoscope
Align stainless steel fitting with
Connector
biopsy port, push and turn
example
clockwise to connect.
Order Number
H28633-1
H28633-2
H28633-3
H28633-46
H28633-46
H28633-7
H28633-8
1-5-313
1-5-381
Locate the endoscope port* and follow the instructions for attaching the
corresponding Endoscope Connector. All connectors must be attached.
Biopsy Inlet Connector
Align stainless steel fitting
with biopsy port, push and
turn clockwise to connect.
Selector Switch
B
Cleaning Cap
Remove Channel Selector Switch.
Place cleaning cap over port and
insert. Press around edge until lip
is fully sealed.
* Representative endoscope for illustrative purposes only. For exact
port locations, refer to endoscope manufacturer's instruction guide.
If you have any questions regarding this hookup, in the U.S., please contact Medivators Technical Support at
1-800-444-4729. Outside the U.S., please contact your Minntech Distributor.
READ ALL INSTRUCTIONS PRIOR TO CONNECTION
Air/Water and Suction
A
Port Separator
Align the separator with the
piston ports and push to
compress spring before sliding
the frame forward to fully
engaged.
➆
Suction Connector
Align silicone tubing with
suction barb and push tubing
onto barb until fully engaged.
➀ Leak Test Connector
Align the slot on connector with
the pin on the scope. Push on and
turn clockwise to engage.
Ensure proper alignment of all connectors with the
endoscope mating parts prior to attachment.
➃➅
Air/Water Connector
Align air/water fitting with
endoscope port and insert.
Screw knurled collar clockwise
until fully engaged.
➁ Forward Water Jet
Connector
Align with forward water
jet port, insert and screw
clockwise until fully
engaged.
