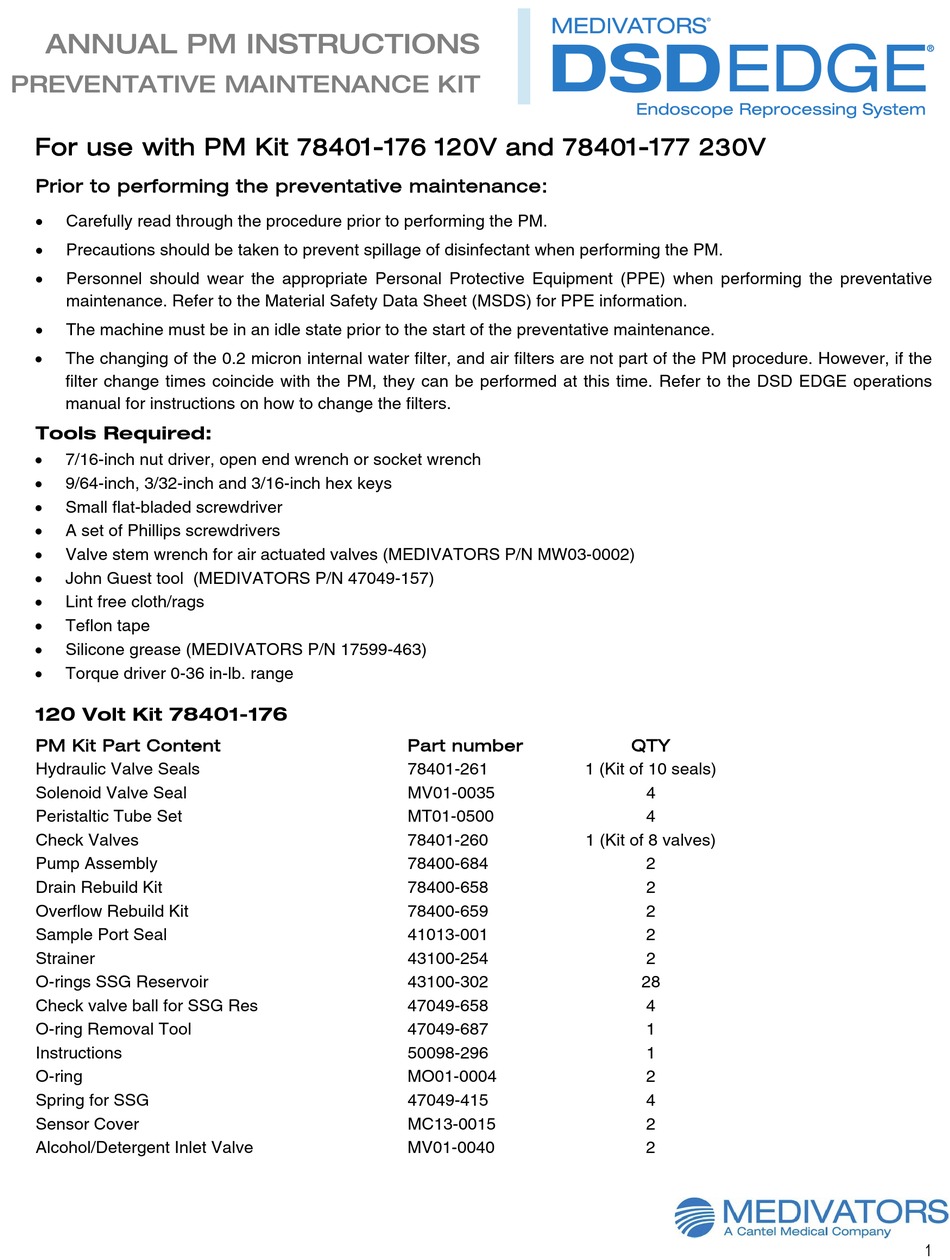

ANNUAL PM INSTRUCTIONS
PREVENTATIVE MAINTENANCE KIT
For use with PM Kit 78401-176 120V and 78401-177 230V
Prior to performing the preventative maintenance:
Carefully read through the procedure prior to performing the PM.
Precautions should be taken to prevent spillage of disinfectant when performing the PM.
Personnel should wear the appropriate Personal Protective Equipment (PPE) when performing the preventative
maintenance. Refer to the Material Safety Data Sheet (MSDS) for PPE information.
The machine must be in an idle state prior to the start of the preventative maintenance.
The changing of the 0.2 micron internal water filter, and air filters are not part of the PM procedure. However, if the
filter change times coincide with the PM, they can be performed at this time. Refer to the DSD EDGE operations
manual for instructions on how to change the filters.
Tools Required:
7/16-inch nut driver, open end wrench or socket wrench
9/64-inch, 3/32-inch and 3/16-inch hex keys
Small flat-bladed screwdriver
A set of Phillips screwdrivers
Valve stem wrench for air actuated valves (MEDIVATORS P/N MW03-0002)
John Guest tool (MEDIVATORS P/N 47049-157)
Lint free cloth/rags
Teflon tape
Silicone grease (MEDIVATORS P/N 17599-463)
Torque driver 0-36 in-lb. range
120 Volt Kit 78401-176
PM Kit Part Content
Hydraulic Valve Seals
Solenoid Valve Seal
Peristaltic Tube Set
Check Valves
Pump Assembly
Drain Rebuild Kit
Overflow Rebuild Kit
Sample Port Seal
Strainer
O-rings SSG Reservoir
Check valve ball for SSG Res
O-ring Removal Tool
Instructions
O-ring
Spring for SSG
Sensor Cover
Alcohol/Detergent Inlet Valve
Part number
78401-261
1 (Kit of 10 seals)
MV01-0035
MT01-0500
78401-260
1 (Kit of 8 valves)
78400-684
78400-658
78400-659
41013-001
43100-254
43100-302
47049-658
47049-687
50098-296
MO01-0004
47049-415
MC13-0015
MV01-0040
QTY
4
4
2
2
2
2
2
28
4
1
1
2
4
2
2
1
