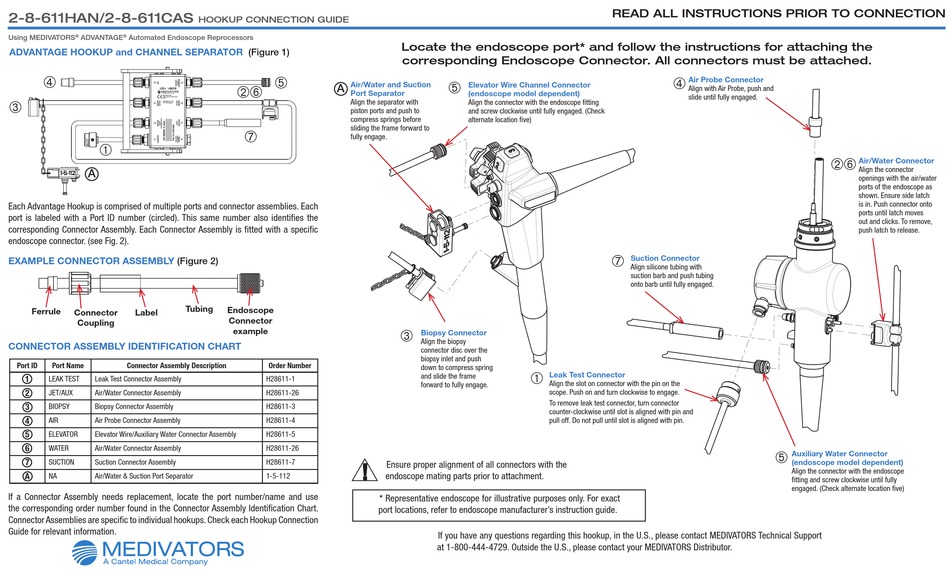

Medivators 2-8-611HAN Hookup Connection Manual

2-8-611HAN/2-8-611CAS
Using MEDIVATORS ® ADVANTAGE ® Automated Endoscope Reprocessors
ADVANTAGE HOOKUP and CHANNEL SEPARATOR



A
Each Advantage Hookup is comprised of multiple ports and connector assemblies. Each
port is labeled with a Port ID number (circled). This same number also identifies the
corresponding Connector Assembly. Each Connector Assembly is fitted with a specific
endoscope connector. (see Fig. 2).
EXAMPLE CONNECTOR ASSEMBLY
(Figure 2)
Tubing
Ferrule
Connector Label
Coupling
CONNECTOR ASSEMBLY IDENTIFICATION CHART
Port ID Port Name Connector Assembly Description
1
LEAK TEST Leak Test Connector Assembly
2 JET/AUX Air/Water Connector Assembly
3 BIOPSY Biopsy Connector Assembly
4 AIR Air Probe Connector Assembly
5 ELEVATOR Elevator Wire/Auxiliary Water Connector Assembly
6
WATER Air/Water Connector Assembly
7
SUCTION Suction Connector Assembly
A
NA Air/Water & Suction Port Separator
If a Connector Assembly needs replacement, locate the port number/name and use
the corresponding order number found in the Connector Assembly Identification Chart.
Connector Assemblies are specific to individual hookups. Check each Hookup Connection
Guide for relevant information.
HOOKUP CONNECTION GUIDE
(Figure 1)

Air/Water and Suction
A

Port Separator
Align the separator with
piston ports and push to
compress springs before
sliding the frame forward to

fully engage.
Endoscope
Connector
example
Order Number
H28611-1
H28611-26
H28611-3
H28611-4
H28611-5
H28611-26
H28611-7
1-5-112
Locate the endoscope port* and follow the instructions for attaching the
corresponding Endoscope Connector. All connectors must be attached.
 Elevator Wire Channel Connector
(endoscope model dependent)
Align the connector with the endoscope fitting
and screw clockwise until fully engaged. (Check
alternate location five)
Biopsy Connector

Align the biopsy
connector disc over the
biopsy inlet and push
down to compress spring
Leak Test Connector

and slide the frame
Align the slot on connector with the pin on the
forward to fully engage.
scope. Push on and turn clockwise to engage.
To remove leak test connector, turn connector
counter-clockwise until slot is aligned with pin and
pull off. Do not pull until slot is aligned with pin.
Ensure proper alignment of all connectors with the
endoscope mating parts prior to attachment.
* Representative endoscope for illustrative purposes only. For exact
port locations, refer to endoscope manufacturer's instruction guide.
If you have any questions regarding this hookup, in the U.S., please contact MEDIVATORS Technical Support
at 1-800-444-4729. Outside the U.S., please contact your MEDIVATORS Distributor.
READ ALL INSTRUCTIONS PRIOR TO CONNECTION
Air Probe Connector

Align with Air Probe, push and
slide until fully engaged.
 Suction Connector
Align silicone tubing with
suction barb and push tubing
onto barb until fully engaged.

Air/Water Connector

Align the connector
openings with the air/water
ports of the endoscope as
shown. Ensure side latch
is in. Push connector onto
ports until latch moves
out and clicks. To remove,
push latch to release.
Auxiliary Water Connector
(endoscope model dependent)
Align the connector with the endoscope
fitting and screw clockwise until fully
engaged. (Check alternate location five)
