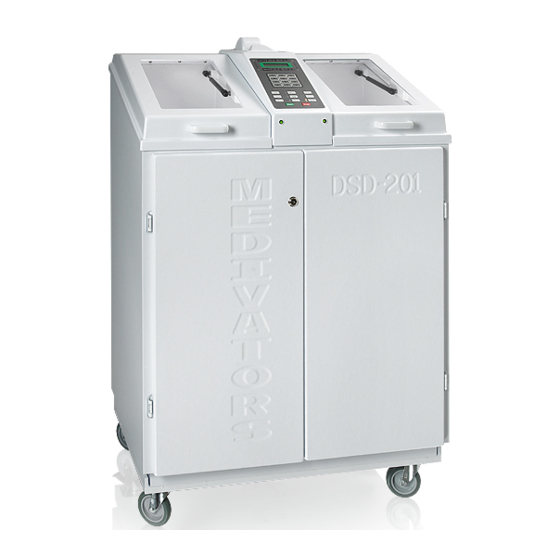

Medivators DSD-201 Site Requirements And Installation
Washer/disinfector
Hide thumbs
Also See for DSD-201:
- Service manual (210 pages) ,
- User manual (108 pages) ,
- Troubleshooting manual (58 pages)
Subscribe to Our Youtube Channel
Related Manuals for Medivators DSD-201
Summary of Contents for Medivators DSD-201

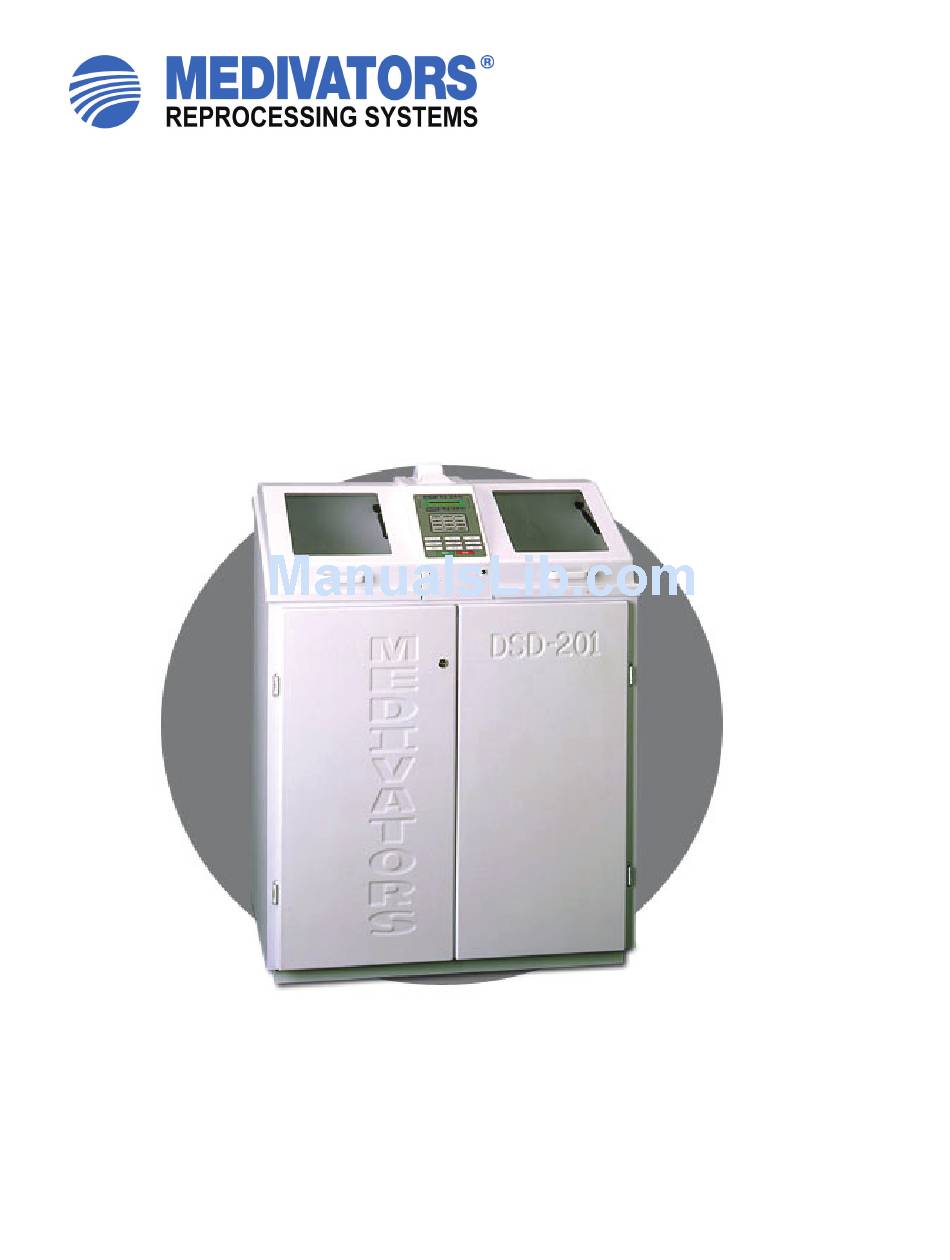

- Page 1 DSD-201 and SSD-102 Site Requirements and Installation Instructions DSD-201 / SSD-102 SITE REQUIREMENTS AND INSTALLATION 50096-924 Rev A Page 1 of 12...
-
Page 2: Site Requirements
DSD/SSD can be properly installed. Applicable Documents • DSD-201/SSD-102 Users and Service Manuals SITE OVERVIEW These criteria must be met to ensure proper operation of the reprocessor. It is the responsibility of the customer to connect the DSD/SSD-201 to the building supply during the installation process. This means the ventilation, electrical and plumbing (water supply lines and drain) are the customers, responsibility. - Page 3 • Units not equipped with ventilation system require 4” clearance from the back wall. 6. DSD-201 Site Requirements Checklist The Installation Checklist is utilized to ensure the installation site meets the required specifications. If all requirements are met, the site is suitable for the installation of the reprocessor.
- Page 4 This checklist should be utilized to ensure the installation site meets the required specification). If all specifications are met, the site is suitable for the installation and use of the DSD-201 and SSD-102 Automated Endoscope Reprocessors. Customer Site Requirements Criteria Section Water supply provides a minimum flow rate of 3.2 GPM (12 liters/minute)
-
Page 5: Installation Instructions
DSD-201 and SSD-102 Site Requirements and Installation Instructions INSTALLATION INSTRUCTIONS The purpose of this section is to provide consistent installation of the DSD-201, SSD-102. Applicable Documents • DSD-201/SSD-102 User Manual • DSD-201/SSD-102 Service Manual Installation Kit: The reprocessor is provided with an installation kit to help the customer adapt the unit to building supplies. - Page 6 DSD-201 and SSD-102 Site Requirements and Installation Instructions Ensure that the incoming water pressure regulator provides a flow rate of 3.2 gal/min (12 liters/min) at a pressure 40-45 PSI (2.75-3.10 Bar). • Incoming water pressure to the regulator must be less than 90 PSI (6.2 Bar).
- Page 7 DSD-201 and SSD-102 Site Requirements and Installation Instructions Housing #2 Housing #1 Contains 0.45 micron filter Contains 1 micron filter 12.50 inches • 50096-924 Rev A Page 7 of 12...
-
Page 8: Water Supply
DSD-201 and SSD-102 Site Requirements and Installation Instructions WARNING: DO NOT over-tighten filter housings (hand-tighten only). Over- tightening will result in failure of the pre-filter components, which can lead to flooding or water leaks. Plumbing fittings should be hand tightened followed by one complete turn with the appropriate wrench. -
Page 9: System Drain
Requirements and Installation Instructions System Drain Connect the 1” drain elbow to the rear drain of the DSD-201/SSD-102. The elbow threads require Teflon tape. Connect the drain tube provided with the reprocessor (36 inches of 1-inch diameter clear tubing) to the drain elbow. - Page 10 SSD-102 (Circle one) Serial Number: This checklist will be utilized to ensure the proper installation of DSD-201 and/or SSD-102 Automated Endoscope Reprocessors. Upon completion of the installation, the unit will be ready for operation. INSTALLATION CHECKLIST Unit leveled in its permanent installation location Adequate space to make plumbing connections to the unit (4 inches required) Drain outlet no more than 18”...
-
Page 11: Installation Verification
DSD-201 and SSD-102 Site Requirements and Installation Instructions Warning: The reprocessor must be protectively grounded. Caution: Operating the 110VAC reprocessor without a hook-up fitting may blow the 8-amp slow blow fuse. Installation Verification To be sure that the system is ready to operate, perform a trial run with water as outlined below. Use the Restrictor Hook-up to simulate an endoscope. - Page 12 DSD-201 and SSD-102 Site Requirements and Installation Instructions 50096-924 Rev A Page 12 of 12...
