Medivators DSD EDGE Quick Start Manual

DSD EDGE
This Quick Start Guide supplements, but does not replace the information provided
in the DSD EDGE
Endoscope reprocessing the way it should be
w w w. m i n n t e c h . c o m / m e d i v a t o r s
™

LOAD Endoscope

• Upon completion of manual cleaning, place endoscope
in basin with control head in right rear corner.

ATTACH Endoscope Hook-up and Leak Tester

2
• Connect appropriate hook-up and leak tester
to basin and endoscope.
• Verify tubing is not kinked or pinched.
• Place floating lid on basin and close reprocessor lid.

SELECT Station

3

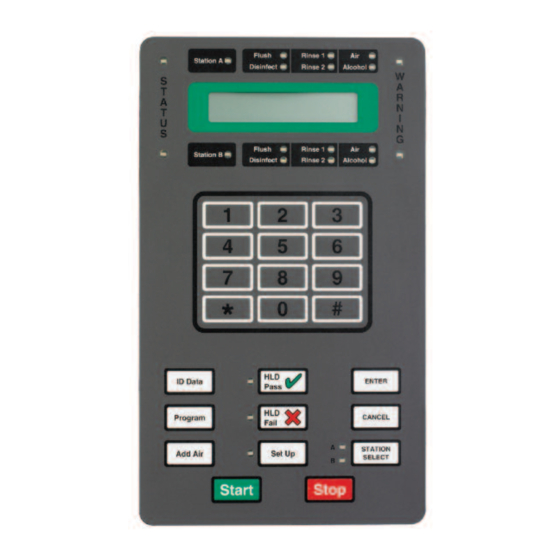

• Press "Station Select" to choose station A or B.

ENTER ID Data

4
• Press "ID Data" and use the number key pad to enter scope,
operator, patient, and physician data (if applicable).
• Press "Enter".

START Reprocessing Cycle

5
• Press "Start" to begin reprocessing Cycle.

TEST Disinfectant Concentration

6
• At the end of the cycle, when prompted, test the MRC
with Rapicide
• Press the HLD Pass or HLD Fail button.

REMOVE Endoscope

7
• LCD Screen will state "Cycle Complete".
• Disconnect hook-up connectors and leak tester
and remove endoscope.
™ User Manual, which came with your reprocessor.
1 - 8 0 0 - 4 4 4 - 4 7 2 9
Refer to User Manual for more detailed instructions
Quick Start Guide
® PA test strip.
MEDIV TORS
©2010 Minntech Corporation, All Rights Reserved. 50092-585/B
