April identiti Installation Instructions Manual
Bifold door
Hide thumbs
Also See for identiti:
- Installation instructions manual (10 pages) ,
- Installation instructions manual (8 pages)
Table of Contents
Advertisement
Quick Links
Bifold Door
INSTALLATION INSTRUCTIONS
www.aprilproducts.co.uk
Lifetime Product Guarantee
ATTENTION!
Are you fitting this April enclosure to an April
shower tray?
The Lifetime Product Guarantee is only valid
when an April enclosure is fitted with an April
shower tray and are used and maintained in
accordance with the manufacturer's instructions
(guarantee excludes seals and magnets).
When April enclosures are used with any other
shower tray the guarantee period is limited to
10 years.
Please see our website for full Terms &
Conditions.
To activate your Product Guarantee please visit
www.aprilproducts.co.uk and complete the
online form.

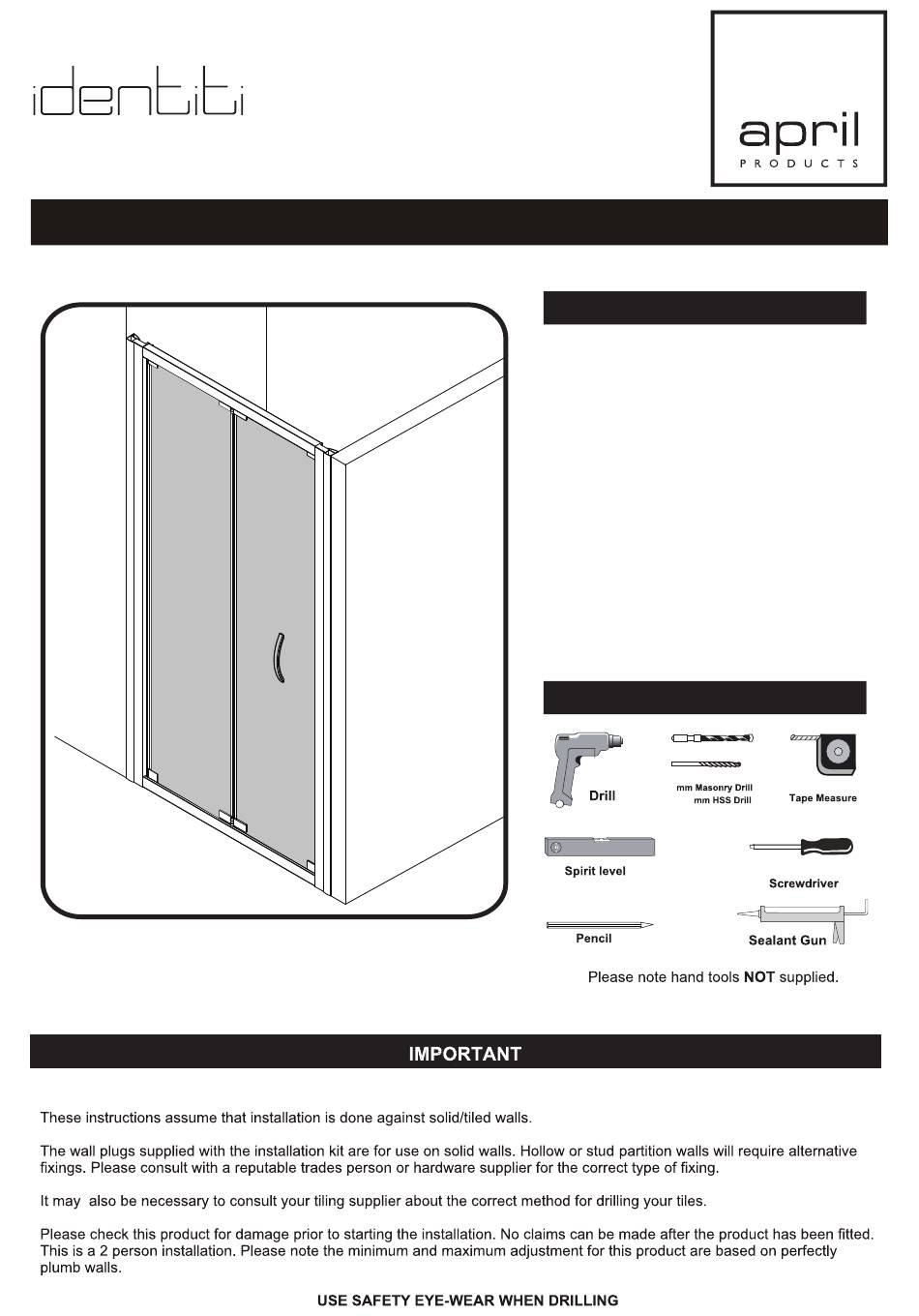

Tools Required
8
2.75
PH2 TYPE
The screen can be constructed either way up, for left or right hand opening.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for April identiti
Summary of Contents for April identiti
- Page 1 INSTALLATION INSTRUCTIONS www.aprilproducts.co.uk Lifetime Product Guarantee ATTENTION! Are you fitting this April enclosure to an April shower tray? The Lifetime Product Guarantee is only valid when an April enclosure is fitted with an April shower tray and are used and maintained in accordance with the manufacturer’s instructions...
- Page 2 COMPONENTS AND BOX CONTENTS Box Contents...
- Page 3 FIXING KIT COMPONENTS, SITE CONDITIONS FIXING KIT Grip Handle × 1 Knob A × 1 Stopper Hinge Bracket Knob B × 1 Screw Cap A × 1 Screw Cap B × 1 Pivot Core Cushion Gasket Cushion Washer × 4 Countersunk Screw ×...
- Page 4 Step 1.3 Step 1.1 & 1.2 Step 1. 1.1 Position the wall profiles (No.1) to wall as shown (roughly 10mm from the front of the tray). 1.2 Level the frame using a spirit level. 1.3 Once you are happy that the frame sits on the tray correctly mark the wall through the 3 pre-drilled screw holes in the wall profiles.
- Page 5 Step 3.1 Step 3.2 Step 3.1 & 3.2 Step 3. 3.1 Push the other wall profile to the hinged side. 3.2 Then insert the frame into the fixed wall profile as shown. Step 4 Step 4. Fix the other wall profile using screws ST4 × 40． Step 5 Step 5.
- Page 6 Step 6.1 Step 6.2 Step 6. 6.1 Drill 3 equally spaced holes with a 2.75mm drill bit through the wall profiles and frame. 6.2 Fix the frame to the wall profiles using the screws ST3.5 × 10 Step 7 Step 7. Fix the handle to the door panel as shown.
- Page 7 Step 9 Step 9. Fit the upright profile top caps and wall profiles top caps as shown. Applying Silicone Sealant 24 HRS Sealing Inside DO NOT USE THE Seal from the top of the wall profile to the bottom on the INSIDE between the wall profile and the wall.
- Page 8 AFTERCARE Cleaning Instructions It is important to clean your April shower enclosure after every use. Please wipe down all glass and metal parts with a clean soft cloth. Ensure that all residual water on the glass is removed after every use.
