Double Door Quadrant / U Shape Quadrant

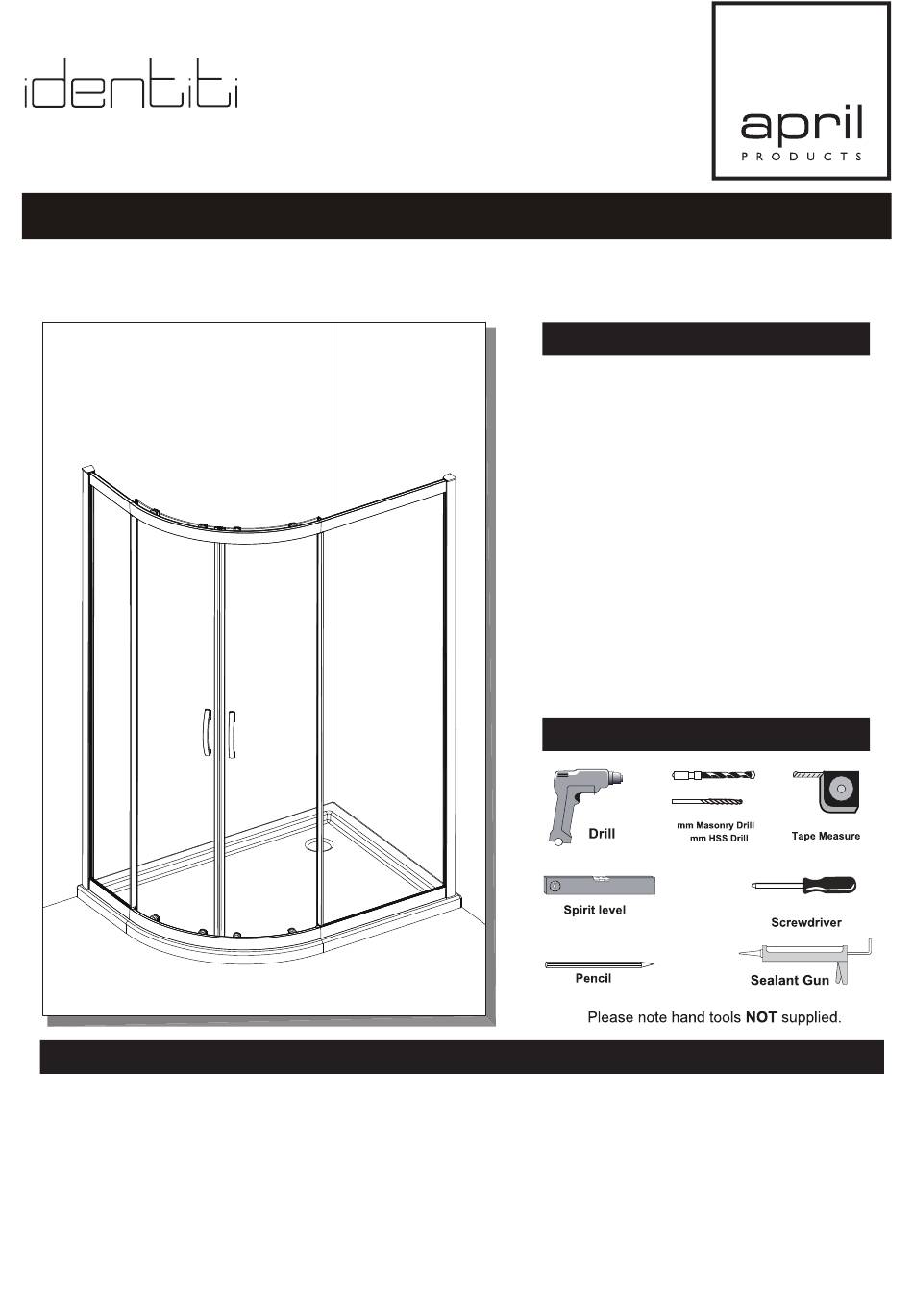

INSTALLATION INSTRUCTIONS
These instructions assume that installation is done against solid/tiled wall.
The wall plugs supplied with the installation kit are for use on solid walls. Hollow or stud-partition walls will require alternative
fixings. Please consult with a reputable trades person or hardware supplier for the correct type of fixing.
It may also be necessary to consult your tiling supplier about the correct method for drilling your tiles.
Please check this product for damage prior to starting the installation. No claims can be made after the product has been fitted.
This is a 2 person installation. Please note the minimum and maximum adjustment for this product are based on perfectly plum
walls.
IMPORTANT
USE SAFETY EYE-WEAR WHEN DRILLING
www.aprilproducts.co.uk
Lifetime Product Guarantee
ATTENTION!
Are you fitting this April enclosure to an April
shower tray?
The Lifetime Product Guarantee is only valid
when an April enclosure is fitted with an April
shower tray and are used and maintained in
accordance with the manufacturer's instructions
(guarantee excludes seals and magnets).
When April enclosures are used with any other
shower tray the guarantee period is limited to
10 years.
Please see our website for full Terms &
Conditions.
To activate your Product Guarantee please visit
www.aprilproducts.co.uk and complete the
online form.
Tools Required
7
3.2
PH2 TYPE
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for April Identiti Series
Summary of Contents for April Identiti Series
- Page 1 INSTALLATION INSTRUCTIONS www.aprilproducts.co.uk Lifetime Product Guarantee ATTENTION! Are you fitting this April enclosure to an April shower tray? The Lifetime Product Guarantee is only valid when an April enclosure is fitted with an April shower tray and are used and maintained in accordance with the manufacturer’s instructions...
-
Page 2: Box Contents
COMPONENTS AND BOX CONTENTS Box Contents NO. Code Description NO. Code Description ID2PF001 Wall Profile 16 ID2FT032 Roller Buffer - L ID2PF002 Cover Strip 17 ID2FT033 Roller Buffer - R ID2PF017 Upright Profile 18 ID2FT034 Cover Strip Fixing Clip ID2PF035 Top Profile 19 ID2FT001 Top roller... - Page 3 FIXING KIT COMPONENTS, SITE CONDITIONS FIXING KIT Grip Handle × 2 Wall Plug 6 pcs Knob A × 2 Horizontal Profile Knob B × 2 End Cap A × 4 Screw Cap A × 2 Round Head Tapping Screw 3.9 × 30 Screw Cap B ×...
-
Page 4: Installation Instructions
INSTALLATION INSTRUCTIONS Step 1 Step 1. Put the horizontal profile end caps (No.12,13) into the top and and bottom profiles (No.4,5). Step 2.1 Step 2.3 Step 2.4 Step 2.2 Step 2. 2.1 Insert the gasket (No.22,23) into the top and bottom profiles (The gasket might be pre-inserted into the profiles). 2.2 Put a little bit of silicone in the corner between the glass and the profile where the glass edge cover (No.14,15) is fixed to the top and bottom profiles (No.4,5), and the end of the top and bottom proifles as shown. - Page 5 Step 4.4 Step 4.1 Step 4.2 & 4.3 Step 4. 4.1 Push the wall profiles (No.1) onto the frame. 4.2 Place the assembled frame onto the tray. 4.3 Level the frame using a spirit level. 4.4 Once you are happy that the frame sits on the tray correctly mark the wall through the 3 pre-drilled screw holes in the wall profiles.
- Page 6 Screw Cap Screw Cup × 6 × 6 Note: For the 800mm and 900mm Quadrant, you need to fix the wall profiles to the frame using Screw Cups and Screw Caps as shown (6 × Screw Cups and Step 6.1 6 ×...
- Page 7 Step 9.1 Step 9.2 Step 9. 9.1 Hang the door on the frame, start by lifting the door up and guiding the top rollers (No.19) into the top horizontal profile (No.4). 9.2 Then using the quick release mechanism on the bottom rollers (No.20) guide them into the bottom horizontal profile (No.5) as shown.
- Page 8 Step 13 Step 13. Fix the handle (No.21) to door panels (No.8). Step 14 Step 14. Once you are happy that the installation is correct, push 5 x Profile Clips (No.18) in to the wall profile and evenly space. Push the Cover Profile (No.2) into the Profile Clips as shown. Note: The 800mm and 900mm Quadrant need the Step 15...
- Page 9 Applying Silicone Sealant 24 HRS Sealing Inside DO NOT USE THE Seal from the top of the wall profile to the bottom on the INSIDE between the wall profile and the wall. ENCLOSURE FOR IMPORTANT: Do not apply sealant on inside of the tray. 24 HOURS AFTER Sealing Outside Seal from the top of the wall profile to the bottom between the...
-
Page 10: Cleaning Instructions
Cleaning Instructions It is important to clean your April shower enclosure after every use. Please wipe down all glass and metal parts with a clean soft cloth. Ensure that all residual water on the glass is removed after every use.
