Inline Panel

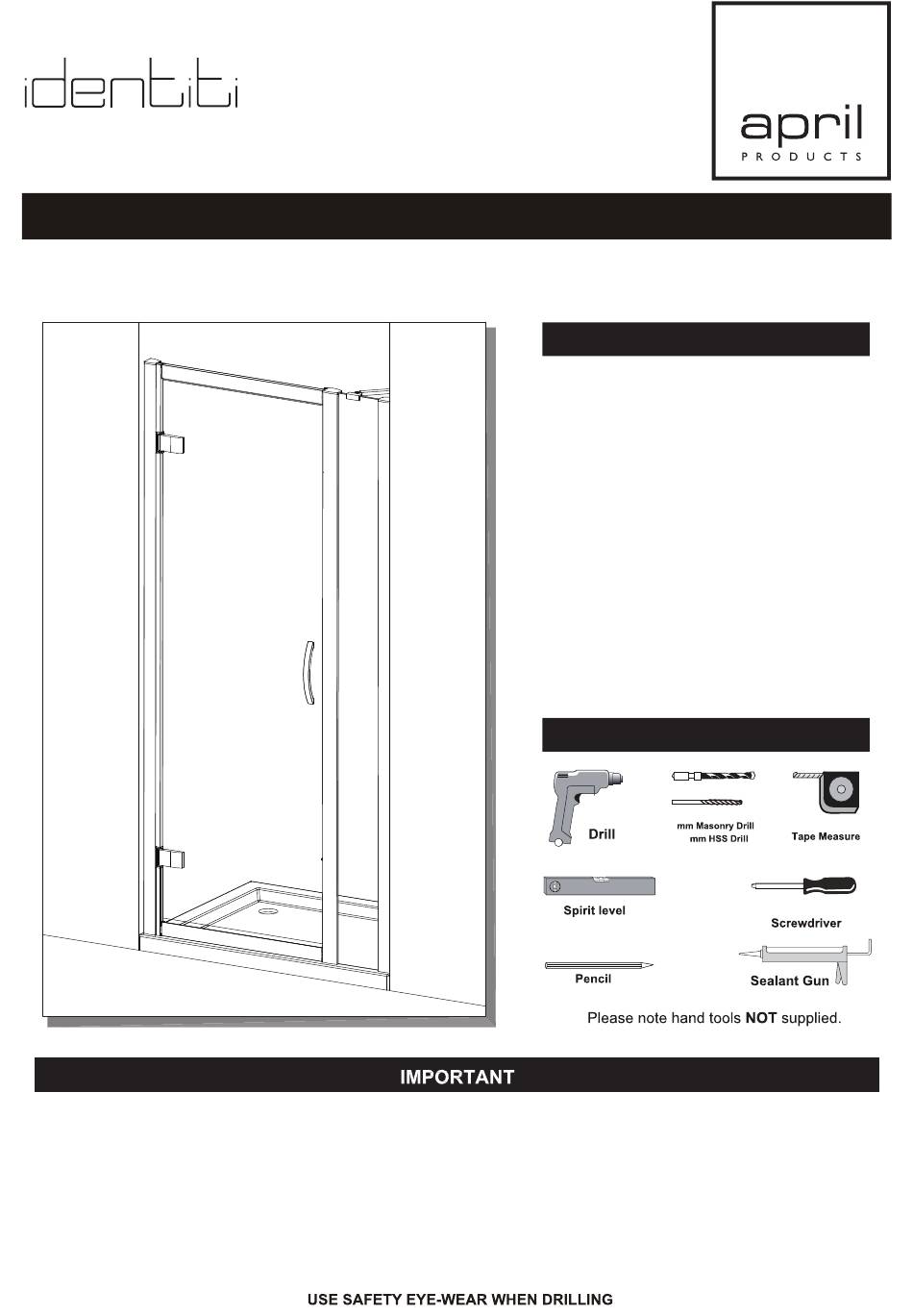

INSTALLATION INSTRUCTIONS
This product should be installed by a suitably qualified and proficient person. The fitting instructions should be
followed carefully to ensure a proper and safe installation. Failure to follow these instructions could result in future
injury.
These instructions and list of parts assume that installation is done against solid/tiled walls.
Please check this product for damage prior to starting the installation. No claims can be made after the product has
been fitted.
PLEASE NOTE :The minimum and maximum adjustment sizes noted on the product brochures are based on
perfectly plumb walls and trays.
www.aprilproducts.co.uk
Lifetime Product Guarantee
ATTENTION!
Are you fitting this April enclosure to an April
shower tray?
The Lifetime Product Guarantee is only valid
when an April enclosure is fitted with an April
shower tray and are used and maintained in
accordance with the manufacturer's instructions
(guarantee excludes seals and magnets).
When April enclosures are used with any other
shower tray the guarantee period is limited to
10 years.
Please see our website for full Terms &
Conditions.
To activate your Product Guarantee please visit
www.aprilproducts.co.uk and complete the
online form.
Tools Required
6
3.2
PH2 TYPE
Advertisement
Table of Contents
Related Manuals for April identiti Inline Panel
Summary of Contents for April identiti Inline Panel
- Page 1 INSTALLATION INSTRUCTIONS www.aprilproducts.co.uk Lifetime Product Guarantee ATTENTION! Are you fitting this April enclosure to an April shower tray? The Lifetime Product Guarantee is only valid when an April enclosure is fitted with an April shower tray and are used and maintained in accordance with the manufacturer’s instructions...
- Page 2 COMPONENTS AND BOX CONTENTS 7 / 8 Box Contents SN Code Descrip on 1 ID2PF013 Inline Post 2 ID2PF017 Upright Profile 3 SNPF018 Cover Strip 4 ID2GS044 Glass Panel 5 SNFT038 Cover Strip Clip 6 ID2FT003 Upright Profile Cap 7 ID2FT012 Inline Post Cap - LH 8 ID2FT013 Inline Post Cap - RH...
- Page 3 FIXING KIT COMPONENTS, SITE CONDITIONS FIXING KIT Rail × 1 Wall Plug 2 pcs Glass Clamp × 2 Inline Post Top Cover Cap × 2 Wall Fixing × 1 Countersunk Tapping Screw M8 Socket Set Screw 4 × 30 With Rubber Tip × 2 2 pcs Countersunk Screw ×...
- Page 4 Step 1.3 Step 1.1 & 1.2 Step 1. 1.1 Position the wall profiles to wall as shown (roughly 10mm from the front of the tray). 1.2 Level the frame using a spirit level. 1.3 Once you are happy that the frame sits on the tray correctly mark the wall through the 3 pre-drilled screw holes in the wall profiles.
- Page 5 Step 3.1 Step 3.2 Step 3.3 Step 3.1 & 3.2 & 3.3 Step 3. 3.1 Push the wall profile to the hinged side. 3.2 Push the inline panel to the other side of the hinge door. 3.3 Push the other wall profile to the inline panel. Step 4 Step 4.
- Page 6 Step 6.1 Step 6.3 Step 6.4 Step 6.2 Step 6. 6.1 Drill 3 equally spaced holes with a 3mm drill bit through the wall profiles and frame. 6.2 Fix the frame to the wall profiles using the screws ST3.9 × 16 (3 per wall profile). 6.3 Drill 3 equally spaced holes with a 3mm drill bit through the inline post and frame.
- Page 7 Step 8. Once you are happy that the installation is correct, push 5 x Profile Clips (No.5) in to the wall profile and evenly space. Push the Cover Profile (No.3) into the Profile Clips as shown. Step 9 Step 9. Fit the upriht profile top cap (No 6) and inline post top cap (No.7 or 8) as shown.
- Page 8 Cleaning Instructions It is important to clean your April shower enclosure after every use. Please wipe down all glass and metal parts with a clean soft cloth. Ensure that all residual water on the glass is removed after every use.
