Side Panel

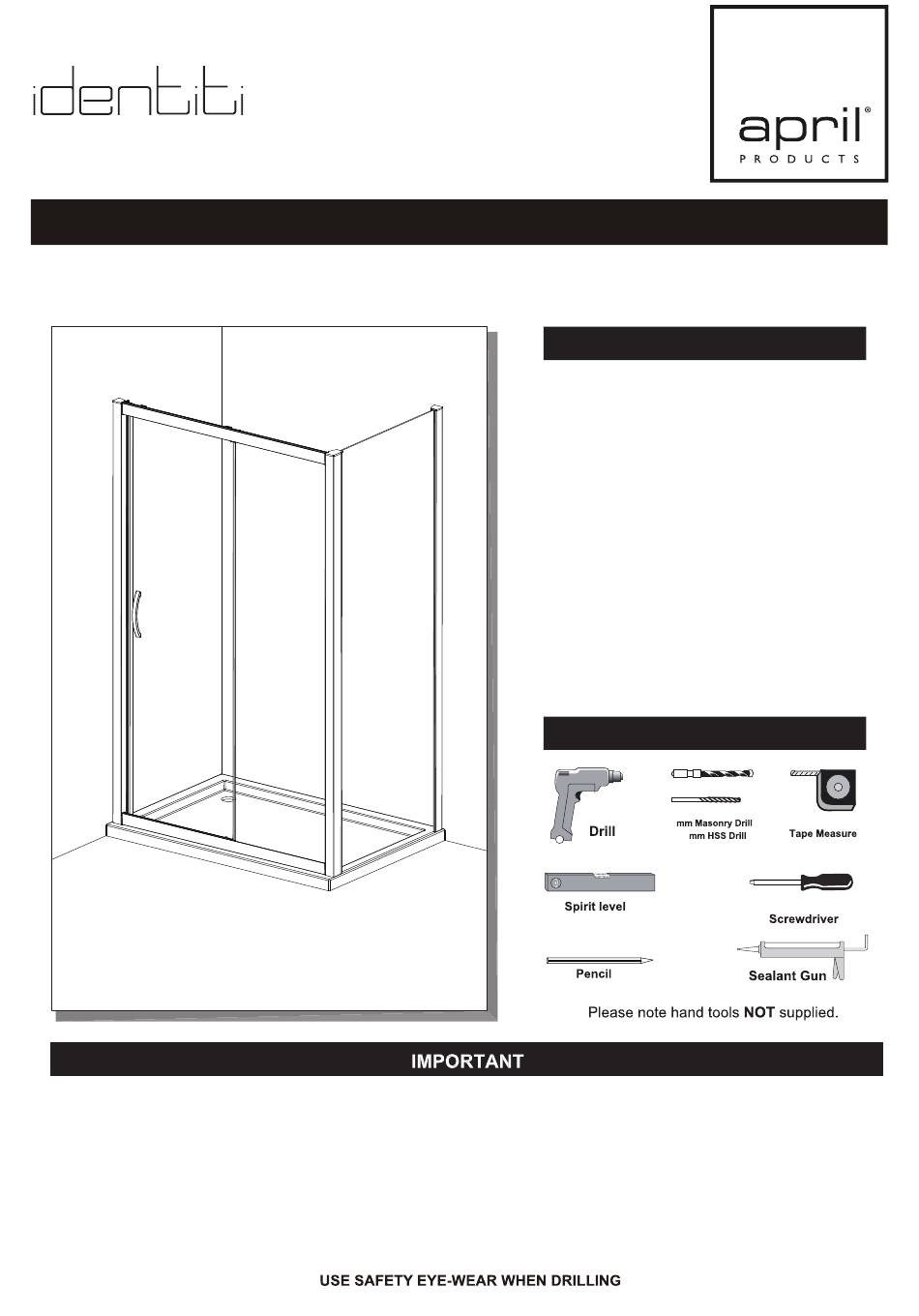

INSTALLATION INSTRUCTIONS
Note:
Instruction shows fitting of a Side panel with a Sliding
door as an example only.
This Side panel can fit with the Sliding door, Hinge door,
Pivot door, Bi-fold door and Inline panel etc.
This product should be installed by a suitably qualified and proficient person. The fitting instructions should be
followed carefully to ensure a proper and safe installation. Failure to follow these instructions could result in future
injury.
These instructions and list of parts assume that installation is done against solid/tiled walls.
Please check this product for damage prior to starting the installation. No claims can be made after the product has
been fitted.
PLEASE NOTE :The minimum and maximum adjustment sizes noted on the product brochures are based on
perfectly plumb walls and trays.
www.aprilproducts.co.uk
Lifetime Product Guarantee
ATTENTION!
Are you fitting this April enclosure to an April
shower tray?
The Lifetime Product Guarantee is only valid
when an April enclosure is fitted with an April
shower tray and are used and maintained in
accordance with the manufacturer's instructions
(guarantee excludes seals and magnets).
When April enclosures are used with any other
shower tray the guarantee period is limited to
10 years.
Please see our website for full Terms &
Conditions.
To activate your Product Guarantee please visit
www.aprilproducts.co.uk and complete the
online form.
Tools Required
6
3.2
PH2 TYPE
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for April identiti
Summary of Contents for April identiti
- Page 1 INSTALLATION INSTRUCTIONS www.aprilproducts.co.uk Lifetime Product Guarantee ATTENTION! Are you fitting this April enclosure to an April shower tray? The Lifetime Product Guarantee is only valid when an April enclosure is fitted with an April shower tray and are used and maintained in accordance with the manufacturer’s instructions...
-
Page 2: Box Contents
COMPONENTS AND BOX CONTENTS Box Contents Image Cover Strip Profile Corner Post Top Cap(L/R) Screws ST 4X12 Note: Further part details for fixing kit available on page 2... - Page 3 FIXING KIT COMPONENTS, SITE CONDITIONS FIXING KIT Corner Post Top Cover Cap × 2 Upright Profile Top Cover Cap × 1 Round Head Tapping Screw 4 × 12 4 pcs IMPORTANT - Missing Components Please check this product for missing components prior to installation. For spare parts visit www.aprilproducts.co.uk IMPORTANT - Installation site 1.
-
Page 4: Installation Instructions
INSTALLATION INSTRUCTIONS Step 1 Step 1. Put the horizontal profile end caps into the top and bottom profiles. Step 2.1 Step 2.3 Step 2.4 Step 2.2 Step 2. 2.1 Insert the gasket into the top and bottom profiles (The gasket might be pre-inserted into the profiles). 2.2 Put a little bit of silicone in the corner between the glass and the profile where the glass edge cover is fixed to the top and bottom profiles, and the end of the top and bottom profiles as shown. - Page 5 Step 4.1 Step 4.1 Step 4.1 Step 4.1 Step 4.2 Step 4.2 Step 4.1 & 4.2 Step 4. 4.1 Push the wall profiles ( packed with the door ) to the assembled frame and side panel. 4.2 Push the side panel to the assembled frame. Step 5.2 Step 5.4 Step 5.1...
- Page 6 Step 6.1 Step 6.2 Step 6. Step 6.1 6.1 Insert the frame into the wall profile. 6.2 Fix the other wall profile using screws ST4× 30. Step 7. Adjust the frame and side panel to ensure that they are central between the wall profiles and corner post and level against the shower tray at the base.
- Page 7 Step 9.1 Step 9.1 Step 9.2 Step 9. 9.1 Fix the frame to the wall profiles using the screws ST4 × 12 (4 per wall profile). 9.2 Fix the frame to the side panel using the screws ST4 x 12. Step 10.1 Step 10.1 Step 10.1...
- Page 8 Step 12.2 Step 12.3 Step 12. 12.1 Remove any excess silicone from Step 2.1. 12.2 Push the shorter vertical seal onto the fixed glass panel, 12.3 Push the longer vertical seal onto the back edge of the moving glass panel (door) as shown. Step 13 Step 13.
- Page 9 Step 16 Step 16. Fit the corner post top cover caps as shown. Applying Silicone Sealant 24 HRS Sealing Inside DO NOT USE THE Seal from the top of the wall profile to the bottom on the INSIDE between the wall profile and the wall. ENCLOSURE FOR IMPORTANT: Do not apply sealant on inside of the tray.
- Page 10 It is important to clean your April shower enclosure after every use. Please wipe down all glass and metal parts with a clean soft cloth. Ensure that all residual water on the glass is removed after every use. For reliable, watertight performance from your April enclosure your shower head should not be positioned so that the shower sprays directly onto the enclosure door.
