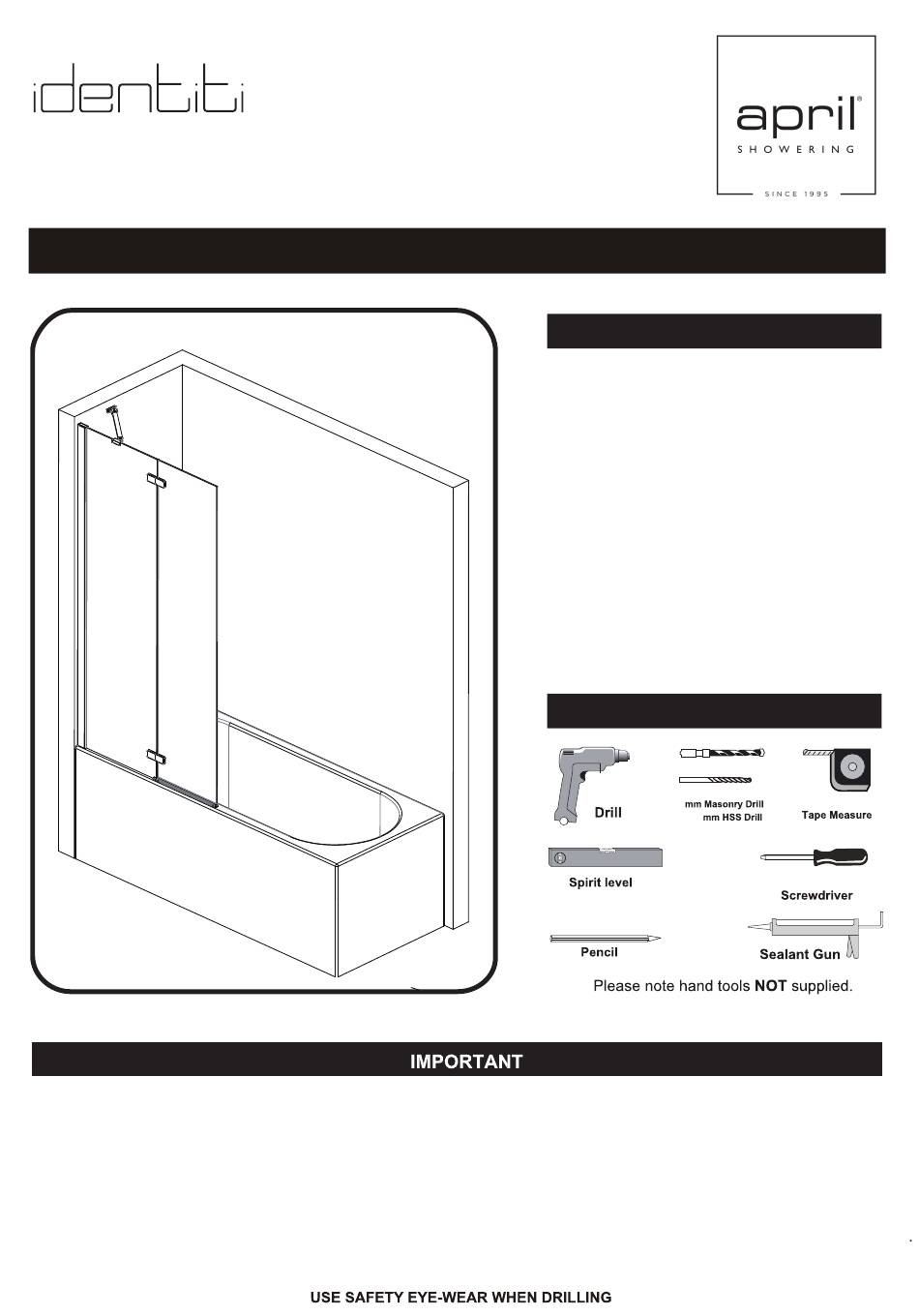

AP6003L/R - 2 Panel Bath Screen LH/RH
AP6003L/R-BLK - 2 Panel Bath Screen Black LH/RH
INSTALLATION INSTRUCTIONS
This product should be installed by a suitably qualified and proficient person. The fitting instructions should be
followed carefully to ensure a proper and safe installation. Failure to follow these instructions could result in future
injury.
These instructions and list of parts assume that installation is done against solid/tiled walls.
Please check this product for damage prior to starting the installation. No claims can be made after the product has
been fitted.
PLEASE NOTE :The minimum and maximum adjustment sizes noted on the product brochures are based on
perfectly plumb walls and trays.
www.aprilproducts.co.uk
Lifetime Product Guarantee
ATTENTION!
The Lifetime Product Guarantee is only valid
once the April Guarantee Registration Form
has been completed and returned within
30 days of installation.
In addition the product must be used and
maintained in accordance with the
manufacturer's instructions
(guarantee excludes seals and magnets).
Please see our website for full Terms &
Conditions.
To activate your Product Guarantee please visit
www.aprilproducts.co.uk and complete the
online form.
Tools Required
6
2.75
PH2 TYPE
Advertisement
Related Manuals for April Identiti AP6003L/R
Summary of Contents for April Identiti AP6003L/R
- Page 1 Lifetime Product Guarantee ATTENTION! The Lifetime Product Guarantee is only valid once the April Guarantee Registration Form has been completed and returned within 30 days of installation. In addition the product must be used and maintained in accordance with the manufacturer’s instructions...
-
Page 2: Box Contents
COMPONENTS AND BOX CONTENTS Box Contents Description Description Wall profile Bottom rail fixing cap A Wall profile top cap Bottom rail Bottom rail fixing cap B Fixed panel assembly Hinges Wall plug Vertical bubble seal Screws ST 4x30 Support arm Screw caps Door panel Screws ST 4x12... - Page 3 FIXING KIT COMPONENTS, SITE CONDITIONS FIXING KIT Hinge Horizontal rail Horizontal rail fixing A x2 fixing B x2 Support arm x1 Cup x3 Wall Plug Screw Cover Cap Screw ST4x12 Glass Clip Support Arm Bottom seal Connector Screw ST4x30 Wall Fixing Screw ST4x30 Wall Plug Wall profile top cap...
- Page 4 Ф2.75 drill bit Ф6 drill bit Step 1 : Position the wall profile (1) onto the bath, approximately 12-15mm from the outside bath edge to ensure that the screen runs along the inside edge of the bath rim.(A) Step 2 : Level the profile with a spirit level, then mark the position using a pencil,mark through the 3 pre-drilled screw holes in the wall profile then drill the marked points using...
- Page 5 Fitting The Support Arm & The Bath Channel Bottom Rail Step 6 : Position the support arm(6) on the fixed glass panel , ensure that the arm is level and horizontal, mark the position on the wall.(G) Step 7 : Remove the support arm then drill on the wall through the marked position using a 6mm masonry drill bit,then insert the wall plugs(12)(H) Step 8 : Replace the support arm onto the fixed glass,attach it...
- Page 6 It is important to clean your April shower enclosure after every use. Please wipe down all glass and metal parts with a clean soft cloth. Ensure that all residual water on the glass is removed after every use. For reliable, watertight performance from your April enclosure your shower head should not be positioned so that the shower sprays directly onto the enclosure door.
