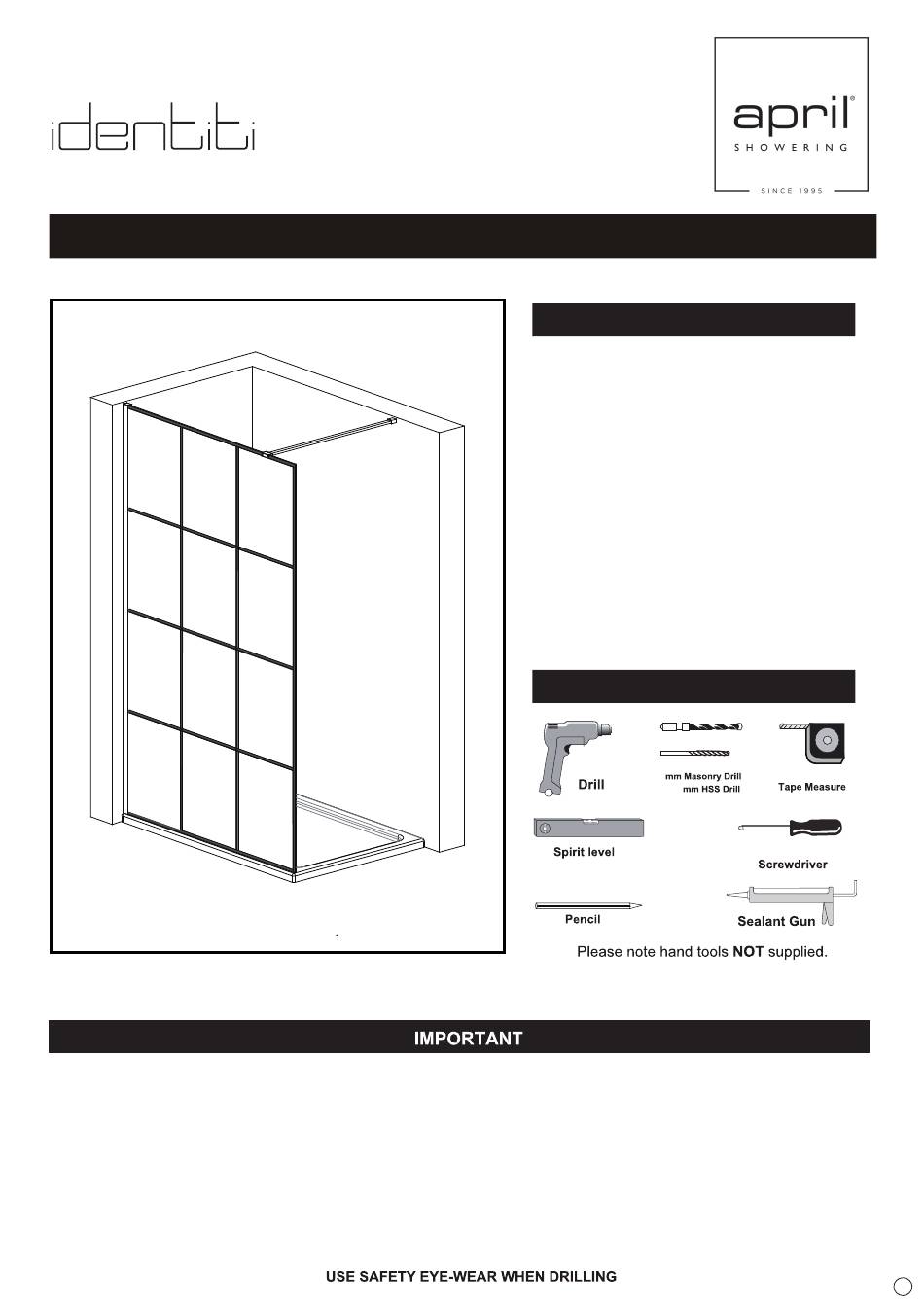

Matrix Wetroom Panel
INSTALLATION INSTRUCTIONS
This product should be installed by a suitably qualified and proficient person. The fitting instructions should be
followed carefully to ensure a proper and safe installation. Failure to follow these instructions could result in future
injury.
These instructions and list of parts assume that installation is done against solid/tiled walls.
Please check this product for damage prior to starting the installation. No claims can be made after the product has
been fitted.
PLEASE NOTE :The minimum and maximum adjustment sizes noted on the product brochures are based on
perfectly plumb walls and trays.
www.aprilproducts.co.uk
Lifetime Product Guarantee
ATTENTION!
Are you fitting this April enclosure to an April
shower tray?
The Lifetime Product Guarantee is only valid
when an April enclosure is fitted with an April
shower tray and are used and maintained in
accordance with the manufacturer's instructions
(guarantee excludes seals and magnets).
When April enclosures are used with any other
shower tray the guarantee period is limited to
10 years.
Please see our website for full Terms &
Conditions.
To activate your Product Guarantee please visit
www.aprilproducts.co.uk and complete the
online form.
Tools Required
6
2.75
PH2 TYPE
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for April Identiti Matrix Wetroom Panel
Summary of Contents for April Identiti Matrix Wetroom Panel
- Page 1 INSTALLATION INSTRUCTIONS www.aprilproducts.co.uk Lifetime Product Guarantee ATTENTION! Are you fitting this April enclosure to an April shower tray? The Lifetime Product Guarantee is only valid when an April enclosure is fitted with an April shower tray and are used and maintained in accordance with the manufacturer’s instructions...
- Page 2 COMPONENTS AND BOX CONTENTS Note:T piece is only packed with Wetroom panel with size under 1000mm Optional Floor Channel Box Contents Description Description Support Arm Vertical Seal Glass Panel Wall Profile Top Cap T-Piece Wall Profile Floor Channel Wall Plugs End Cap Screw ST4×30...
- Page 3 FIXING KIT COMPONENTS SITE CONDITIONS FIXING KIT Vertical Seal ×1 Screws ST 4X30 Wall Plugs Wall Profile Top Cap Screw ST4X30 Wall Plugs 2.0mm 2.5mm Support arm connector 4.0mm Allen Key Wall Bracket IMPORTANT - Missing Components Please check this product for missing components prior to installation. www.aprilproducts.co.uk For spare parts visit IMPORTANT - Installation site...
- Page 4 FIX FRONT PANEL WALL PROFILE Step 1 Place the wall profile onto the edge of the tray roughly 10mm from the front of the shower tray edge. Ensure the wall profile is level to the wall If the panel is fitted without a tray, please ignore Diagram A. Step 2 Mark the position for fixing the wall profile to the wall through the 4 pre drilled holes in the wall profile Diagram B NOTE: You may find it easier to mark and drill the wall if you apply masking tape to it first.
- Page 5 FIX FRONT GLASS PANEL Step 5. Push the clear edge of the glass panel onto the wall profile. Please note the black printing on the glass must be on the outside. INSIDE Step 6. After the glass panel is in its final position press the seal into the wall profile securing from bottom to top DiagramG...
- Page 6 FIX WALL BRACKET Step 7. Measure the support bar tube length then cut it to the required size (Diagram H). Step 8. Fit the support bar onto the glass panel, ensure the support bar is level then mark the wall fixing hole onto the wall (Diagram I). Step 9.
- Page 7 FIX OPTIONAL FLOOR CHANNEL Step 1. Push the glass panel onto the wall profile (Diagram A). Step 2. Put the floor channel onto the tray then mark a line onto the profile cut the profile through marked line to get required length Diagram B Step 3.
- Page 8 APPLYING SILICONE SEALANT Step 12. Fit the top cap onto the wall profile (Diagram Q) Applying Silicone Sealant 24 HRS Sealing Inside DO NOT USE THE Seal from the top of the wall profile to the bottom on the INSIDE between the wall profile and the wall.
- Page 9 OPTIONAL RETURN PANEL INSTRUCTION LEFT HAND RIGHT HAND COMPONENTS AND BOX CONTENTS FIXING KIT Bottom Seal ×1 Vertical Seal ×1 Box Contents SN Descrip on Return Panel Vertical Seal...
- Page 10 FIX RETURN PANEL BOTTOM Step 1. Press the seal onto bottom edge of the return panel glass then insert silicone into the groove of the upright profile(Diagram A). Step 2. 2.1 Push the return panel to the Wetroom glass panel,ensure the cut of the hinges placed inside. (Diagram B) After the glass panel is in its final position press the seal into the profile securing from bottom to top Diagram C).
- Page 11 It is important to clean your April shower enclosure after every use. Please wipe down all glass and metal parts with a clean soft cloth. Ensure that all residual water on the glass is removed after every use. For reliable, watertight performance from your April enclosure your shower head should not be positioned so that the shower sprays directly onto the enclosure door.
