Wheel Replacement

The wheels of the scanner can be changed between low friction and high friction wheels. To replace:
1. Remove the two socket cap screws from the wheels
2. Carefully pull the magnetic wheels away from the wheel hub.
WARNING
Magnetic wheels, risk of figure trap. Handle with care
3. Remove the wheels from the keep plate by unscrewing the thumb nut and removing the
keeper plate clamp.
4. Carefully remove one wheel from the keeper plate in preparation for installation.
5. When installing the new wheels onto the wheel hub, ensure the keyway is aligned correctly
and the wheel sits flat on the wheel hub.
Figure 27: Wheel hub keyway location
6. Replace the two socket cap screws.
7. Carefully place the removed wheel onto keeper plate in the required orientation.
WARNING
Magnetic wheels, risk of figure trap. Handle with care
IMPORTANT
It is recommended to replace each wheel one at a time and placing the removed wheel back
onto the keeper plate prior to replacing the next.
8. Once all four wheels of the scanner have been replaced and the removed wheels are safely
on the keeper plate, place back into the transit case.

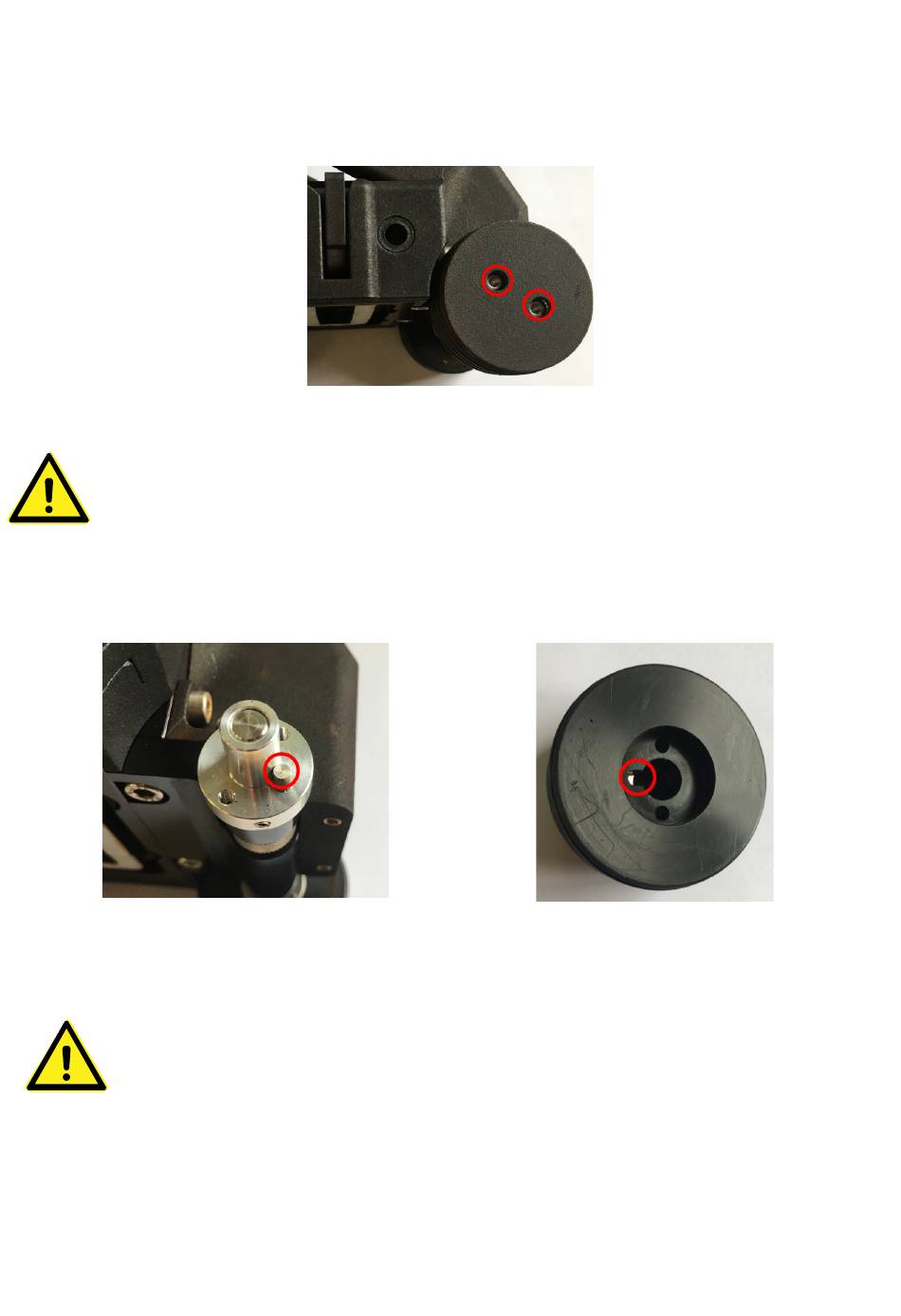

Figure 26: Wheel bolt location
Figure 28: Inside face of wheel keyway location
