Wheel Brake Shoe replacement

The wheel brake sits on top of the replaceable brake shoe. To replace:
1. From beneath remove the two pozi screws securing the dust cover to the rear fairing.
2. Remove the two countersunk bolt and the two socket cap bolts securing the rear fairing to
the chassis.
3. Carefully lift and remove the rear fairing away from the chassis.
4. Remove the four socket cap bolts securing the brake cam lever and brake shoe to the
chassis.
5. Lift off the cam lever assembly to access the brake shoe.
6. Install a new brake shoe and replace the cam lever assembly in the same orientation. Secure
the cam lever assembly using the four socket cap bolts.
7. Check the operation of the brake cam lever. Lift the lever up and the wheels spin freely.
Push the lever down and the brake is applied preventing the wheels from spinning.
8. Replace the rear fairing and dust cover.

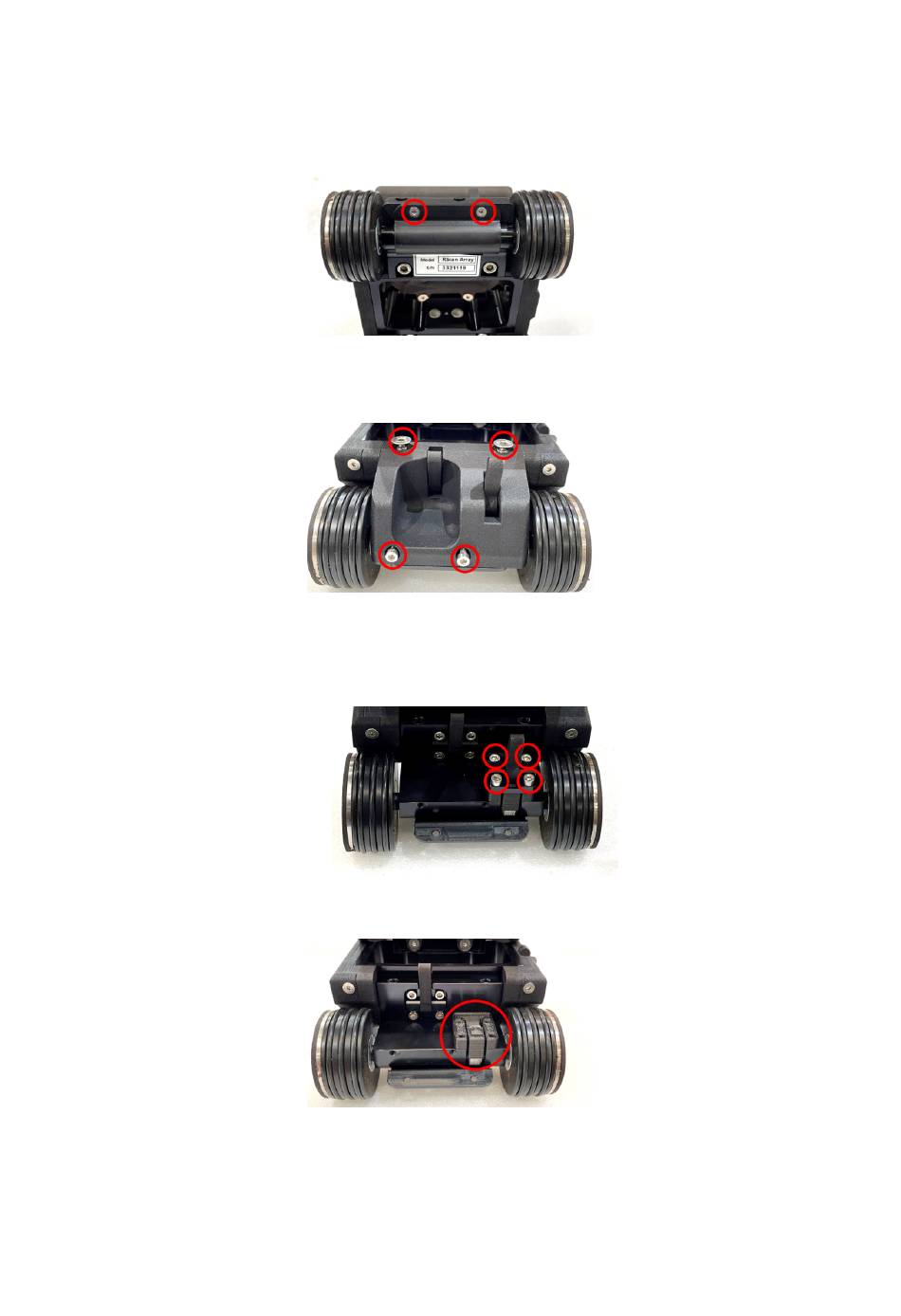

Figure 22: Rear fairing dust cover screw location
Figure 23: Rear fairing bolt location
Figure 24: Brake lever bolt location
Figure 25: Brake shoe location
