Maintenance

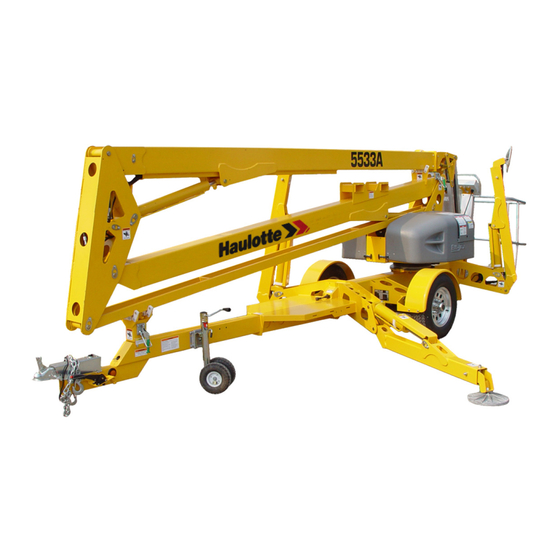

10 - Manual outrigger retraction

The Manual Outrigger Retraction procedure allows the outriggers to be retracted into the "stowed" (upright)
position during hydraulic power interruption or power failure.
The Manual Outrigger Control Kit, Part Number: A-00819, including a wire harness, is required to perform this
manual procedure.
The hand pump is a component of the hydraulic power unit which is located in the pump compartment. "The hand
pump and the hydraulic valve C7 (4); must be used to manually retract the outriggers".
The boom(s) must be completely lowered and in the "stowed" position prior to raising the outriggers. Use manual
controls if necessary to "stow" the booms. If necessary, refer to
4001010720

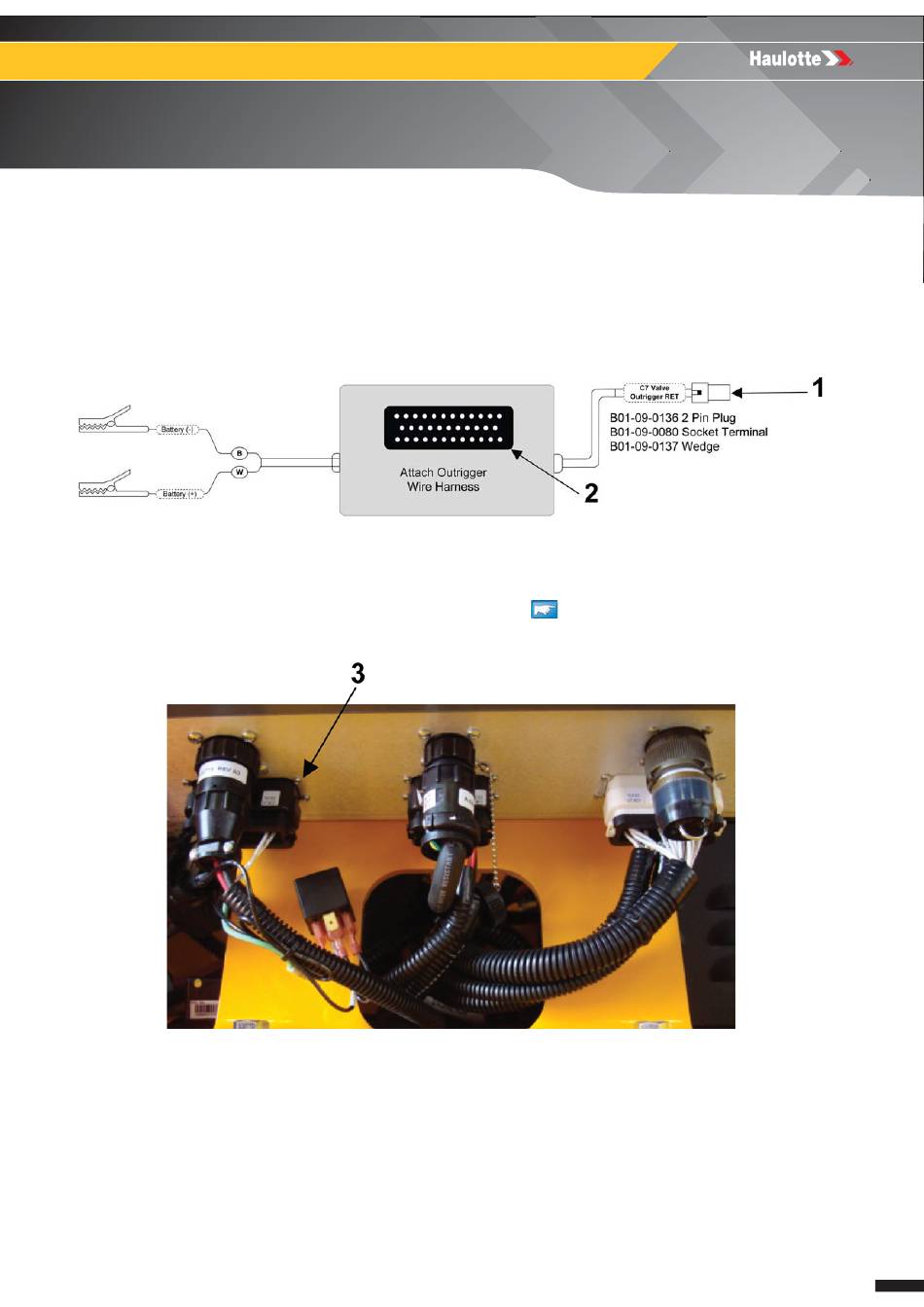

Manual outrigger Control Wire Harness
Bottom Side of the Ground (lower) Control Box
E 04.19
Section D : 5.1 Manual boom operation.
