Haulotte 4527A​

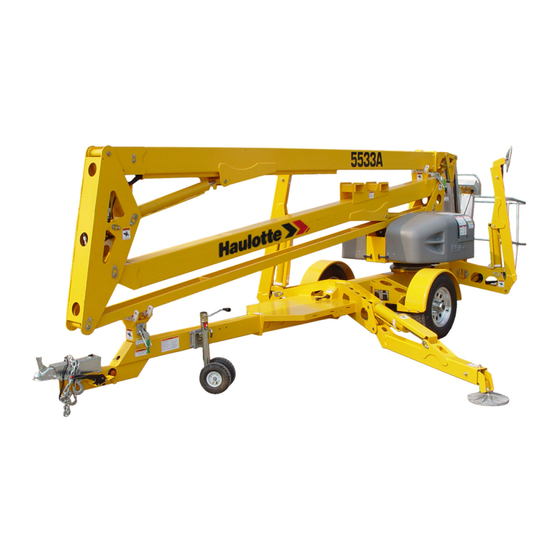

Hydraulic Articulating Boom Lift
1- Park lift on a reasonably flat surface with 14 feet of clearance left to right for outriggers. Outriggers can
level the unit on a grade of up to 12.5°
2- Set parking brake on lift and disconnect from vehicle, unhook all safety chains, cables, and electrical
connections.
3- Release the two green handled lever locks, which secure the boom for transport.
4- Make sure that BOTH red emergency stop buttons are PULLED OUT. There is one on each control panel.
The unit will not power on if one of these is pressed in.
5- At the ground control panel, turn key counter-clockwise for operation from the base.
6- Press and hold the EXTEND and AUTO LEVEL buttons ​ S IMULTANEOUSLY​ until unit stops beeping and all
outrigger lights are green.
Please call us anytime at (928) 634-8531 with any questions or issues.
Q uick-start Guide​

Page1





Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4527A and is the answer not in the manual?

Questions and answers

Summary of Contents for Haulotte 4527A

  • Page 1 Q uick-start Guide​   Haulotte 4527A​ ​ Page1 ​   Hydraulic Articulating Boom Lift    1- Park lift on a reasonably flat surface with 14 feet of clearance left to right for outriggers. Outriggers can  level the unit on a grade of up to 12.5° ...
  • Page 2 Q uick-start Guide​   Haulotte 4527A​ ​ Page2 ​   7- You may now control the lift from the ground panel, if you wish to control the lift from the  platform panel, you must turn the key clockwise. The lift will now only be controlled by the platform panel. ...
  • Page 3 Q uick-start Guide​   Haulotte 4527A​ ​ Page3 ​       Please call us anytime at (928) 634-8531 with any questions or issues.  ...
