NetVanta 4305 Router
Quick Start Guide
CONSOLE
E T A
NABLE ELNET CCESS
The following steps create a password of adtran for Telnet access. By default, Telnet access is
enabled with a password of password.
1. Verify that the prompt of your unit displays (config)#.
2. Enter line telnet 0 4 to change the configuration parameters for the Telnet sessions.
3. Enter login to initiate Telnet access.
Enter password adtran to change the login password for the Telnet sessions.
4.
5. Enter exit to return to the Global Configuration mode.
6. Verify that the prompt of your unit displays (config)#.
7. Enter do write memory to save the current configuration.
C P
ONSOLE INOUTS
Pin Name Description
1 DCD Data Carrier Detect (output)
2 RD Receive Data (output)
3 TD Transmit Data (input)
4 DTR Data Terminal Ready (input)
5 SG Signal Ground
6 DSR Data Set Ready (output)
7 — Unused
8 CTS Clear to Send (output)
9 — Unused
Quick Start Guide, 61200890L1-13D, July 2005

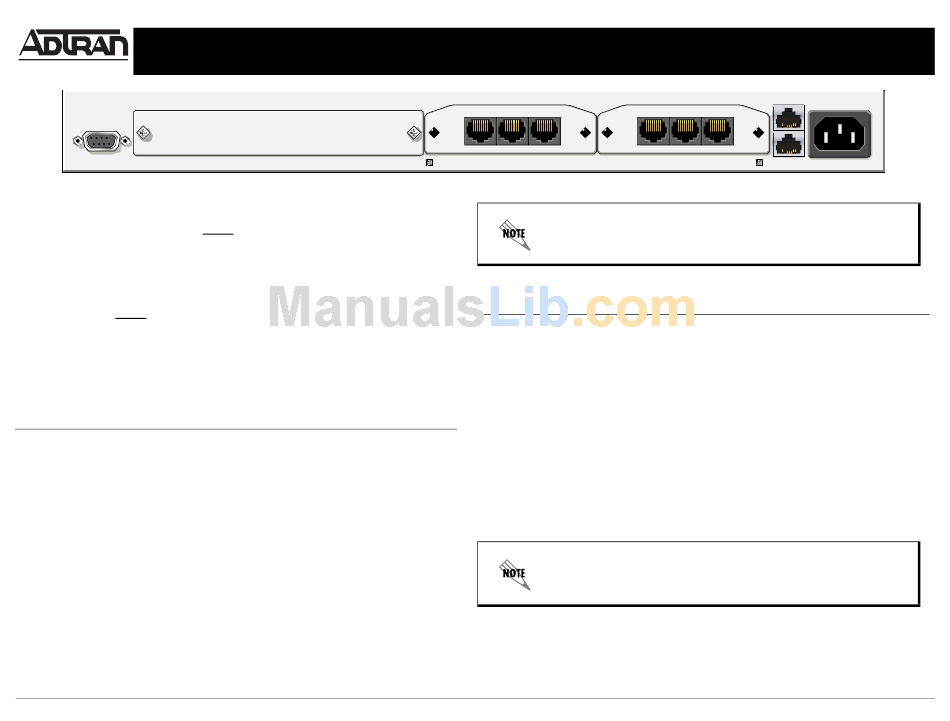

SLOT 3 WIDE MODULE
Technical Support 1-888-4ADTRAN (1-888-423-8726)
For more detailed documentation, visit us online at www.adtran.com.
WAN-T1 DSX-1 DBU WAN-T1
WAN-T1 DSX-1 DBU
SLOT 2 NET/DBU
For information on installing the VPN Accelerator Card, please refer to the
NetVanta 4305 Hardware Installation Guide on the ADTRAN OS System
Documentation CD included in your router shipment.
E P
THERNET INOUT
Pin Name Description
1 TX1 Transmit Positive
2 TX2 Transmit Negative
3 RX1 Receive Positive
4, 5 — Unused
6 RX2 Receive Negative
7, 8 — Unused
C Y A
ONFIGURE OUR PPLICATION
More detailed documentation for configuring your ADTRAN unit is provided on the ADTRAN OS
System Documentation CD included in your shipment. For more detail on hardware setup, refer to
the appropriate NIM Quick Start Guides and the Hardware Installation Guide. For more detail on
configuring your system, refer to the ADTRAN Operating System (AOS) Command Reference
Guide, configuration guides, and technical support notes.
Important: For additional details on product features, specifications,
installation, and safety, refer to the appropriate Hardware Installation
Guide on the ADTRAN OS System Documentation CD shipped with the
base unit and available online at www.adtran.com.
P/N 1200890L2
ETH 0/2
100-250VAC, 0.75A
50/60Hz
DSX-1 DBU
SLOT 1 NET/DBU
ETH 0/1
Copyright © 2005 ADTRAN, All Rights Reserved
