PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use
and low volume applications. A wide selection of powered application equipment for extended-use, production operations is available.
Indenter Die
(Stationary)
Ferrule
Crimp
Sections
Anvil Die
(Moving)

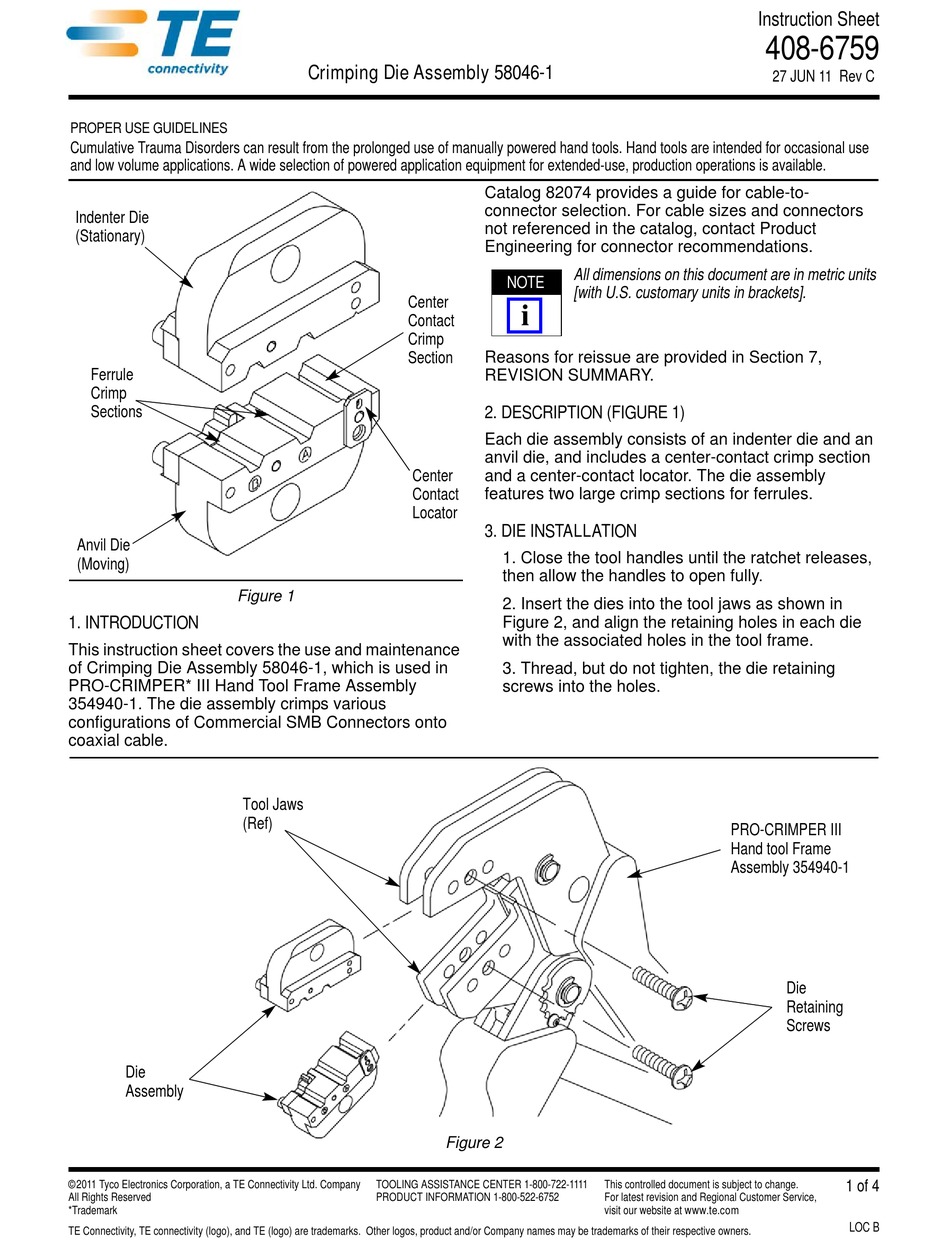

Figure 1
1. INTRODUCTION
This instruction sheet covers the use and maintenance
of Crimping Die Assembly 58046-1, which is used in
PRO-CRIMPER* III Hand Tool Frame Assembly
354940-1. The die assembly crimps various
configurations of Commercial SMB Connectors onto
coaxial cable.
Tool Jaws
(Ref)
Die
Assembly
© 2011 Tyco Electronics Corporation, a TE Connectivity Ltd. Company
All Rights Reserved
*Trademark
TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product and/or Company names may be trademarks of their respective owners.
Crimping Die Assembly 58046-1
Catalog 82074 provides a guide for cable-to-
connector selection. For cable sizes and connectors
not referenced in the catalog, contact Product
Engineering for connector recommendations.
Center
Contact
Crimp
Section
Reasons for reissue are provided in Section 7,
REVISION SUMMARY.
2. DESCRIPTION (FIGURE 1)
Each die assembly consists of an indenter die and an
anvil die, and includes a center-contact crimp section
Center
and a center-contact locator. The die assembly
Contact
features two large crimp sections for ferrules.
Locator
3. DIE INSTALLATION
Figure 2
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
All dimensions on this document are in metric units
NOTE
[with U.S. customary units in brackets].
i
1. Close the tool handles until the ratchet releases,
then allow the handles to open fully.
2. Insert the dies into the tool jaws as shown in
Figure 2, and align the retaining holes in each die
with the associated holes in the tool frame.
3. Thread, but do not tighten, the die retaining
screws into the holes.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.te.com
Instruction Sheet
408-6759
27 JUN 11 Rev C
PRO-CRIMPER III
Hand tool Frame
Assembly 354940-1
Die
Retaining
Screws
1 of 4
LOC B
