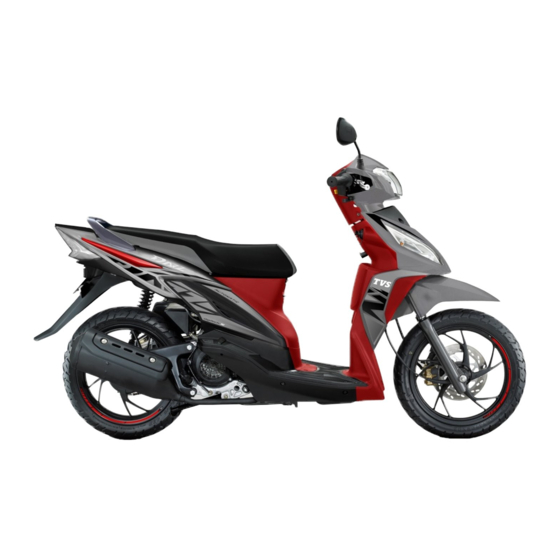

SKB 000001
Owners Manual
© PT TVS Motor Company Indonesia

Advertisement

Table of Contents
loading

Related Manuals for TVS DAZZ

Summary of Contents for TVS DAZZ

  • Page 1 SKB 000001 Owners Manual © PT TVS Motor Company Indonesia...
  • Page 2 support.ph@tvsmotor.com...
  • Page 3 OWNER IDENTITY Name Address Telp/ Hp No. Frame No. Engine No. Type Colour Purchase date Owner’s Signature Dealer’s Stamp / Signature...
  • Page 4 CONTENTS Preface ................1. Specification ............... 2. Know About Your Tvs Dazz ..........ONTENTS 3. TVS Dazz Unique Feature ............ 4. Maintenance ..............5. Do It Yourself ..............
  • Page 5 Maintenance is extremely important to let your Dazz deliver the maximum performance to you. Please get you Dazz maintained from any TVS Authorized Dealer / PGM / Service Outlets. We are delightful to welcome you into our ever expanding happy family.
  • Page 6 SPECIFICATION OVERALL DIMENSION Overall length 1855 mm Overall width (Handle bar) 675 mm Overall height 1075 mm Seat height 750mm Ground Clearance 150 mm Gradeability Wheel base 1240 mm Dry Mass 92 Kg Pay load 130 Kg PECIFICATION ENGINE Type Single cylinder 4 stroke air cooled engine Bore x Stroke...
  • Page 7 SPECIFICATION Air Filter Paperfilter Starting System Electric start / Kick start Lubrication system Trochoid Oil Pump Maximum power (in BHP) 8.1 BHP@7500 rpm Maximum torque (in Nm) 8.5 Nm @5500 rpm Engine idling 1600±100 Spark plug BOSCH - UR4KC Spark plug gap 0.7 mm TRANSMISSION Clutch...
  • Page 8 SPECIFICATION CHASSIS Frame type Under Bone Caster angle Trail 87 mm Steering angle Brake front and rear Front Disk 200 mm Rear Drum 130 mm Dia Tyre size Front 80/90 - 14” Rear 90/80 - 14” Tyre pressure Front 2.00 kg/cm (29 PSI) Rear 2.25 kg/cm (32 PSI) Suspension...
  • Page 9 SPECIFICATION ELECTRICAL Ignition system IDI - Ignition Dual Mode Battery type 12V 3.5Ah Generator AC 100W Magneto Head lamp 12V 30 / 30 W (Halogen) 12V 5W/18W Tail / brake lamp 12V 10W Turn signal lamp front 12V 10W Turn signal lamp rear Position lamp 12V 1.7W Speedometer lamp...
  • Page 10 SPECIFICATION Engine oil capacity Periodic 750 ml Overhaul 800 ml Recommendation oil 10W30 SL MB Transmission oil capacity Periodic 100 ml Overhaul 120 ml Recommendation oil 10W30 SL MB Front fork oil capacity 55 ± 2 ml...
  • Page 11 KNOW ABOUT YOUR TVS DAZZ VEHICLE IDENTIFICATION NUMBER (VIN) Frame Number Frame number is located in the backside, between pillion handle and fuel tank. Engine Number Engine number is engraved on the bout left side crankcase of engine as our TVS DAZZ...
  • Page 12 KNOW ABOUT YOUR TVS DAZZ INSTRUMENT PANEL - HANDLE BAR Description: 1. Charger mobile phone 2. Choke lever 3. Horn switch 4. Turn signal lamp switch 5. High/low beam switch 6. Rear view mirror L 7. Speedometer 8. Rear view mirror R 9.
  • Page 13 KNOW ABOUT YOUR TVS DAZZ LOCATION OF PARTS - LH SIDE VIEW Description: 1. Head lamp 2. Turn signal lamp (L) 3. Position lamp (LH) 4. Side stand 5. Center stand 6. Kicker lever 7. Air filter 8. Nut setting rear brake 9.
  • Page 14 KNOW ABOUT YOUR TVS DAZZ LOCATION OF PARTS - RH SIDE VIEW Description: 1. Pillion handle 2. Muffler guard 3. Muffler guard front 4. Box 5. Number plate holder 6. Adjustment head lamp...
  • Page 15 KNOW ABOUT YOUR TVS DAZZ IGNITION/STEERING LOCK TVS DAZZ comes with a set of two keys. Both can be used to operate ignition lock, steering lock and seat lock. Ignition lock has three positions : In this position, vehicle cannot be started. Key can be removed from the ignition lock.
  • Page 16 KNOW ABOUT YOUR TVS DAZZ SHUTTER LOCK counterclockwise to close the ignition lock. DAZZ is also equipped with theft lock (shutter To unlock it, turn it clockwise. lock) for safety of your vehicle . Shutter plate is useful to 'SHUT' the lock to prevent theft.
  • Page 17 KNOW ABOUT YOUR TVS DAZZ INSTRUMENT CLUSTER  The position of the fuel tank should always be horizontal when the gas gauge reading. line. This indicates that there is 1.3 liters of fuel in the tank. Mark "E" indicates empty (blank), but still has 0.7 liters fuel in the tank.
  • Page 18 KNOW ABOUT YOUR TVS DAZZ high beam position. This is to put the driving corresponding turn signal indicator lamp will flash. beam while zipping on high ways. 4. Turn signal switch HANDLE BAR LEFT SIDE Sliding type switch is provided for operating 1.
  • Page 19 KNOW ABOUT YOUR TVS DAZZ lever. It returns to its original position HANDLE BAR RIGHT SIDE automatically. 1. Front brake lever Front brake is applied while pressing this lever gently towards throttle grip. Brake lamp will glow on the application of front brake.
  • Page 20 KNOW ABOUT YOUR TVS DAZZ  Brakes are one of the means of salvation and Make sure the rear brake lever is not locked take care of as it should be. when the motor is running.  Use the choke to turn on the motor in the is running.
  • Page 21 KNOW ABOUT YOUR TVS DAZZ Center stand and side stand is equipped with both center stand TVS DAZZ and side stand. To place the vehicle on center stand, press the extension rod which is below the pillion footrest holder. Slightly lift the vehicle while both legs of center stand touches the ground firmly.
  • Page 22 KNOW ABOUT YOUR TVS DAZZ After opening the seat, release fuel tank cap by turning it to counter clockwise direction. Now take out the tank cap and place it on the pillion handle seat lock hole so that you need not hold the cap in hand.
  • Page 23 KNOW ABOUT YOUR TVS DAZZ strap locks and then attach the hook to close the trunk lid and seat back by using the key.
  • Page 24 TVS DAZZ UNIQUE FEATURE Tool kit bag under the seat to Larger tank to store more fuel so store rainwear, gloves, etc. long trips are more enjoyable. Mobile phone charger to make Front and rear tubeless tyres sure you don't run out on your m a ke s y o u r t r i p m o r e phone charge.
  • Page 25 Service outlets. Periodic maintenance may require replacements of few parts. Whenever replacing parts of your Dazz, it is recommended to use TVS Genuine parts. PT TVS Motor Company Indonesia strongly recommends to service your vehicle at any of TVS Authorized dealer,...
  • Page 26 MAINTENANCE PERIOD 1 MONTH 4 MONTH 7 MONTH 10 MONTH ITEM 1000 4000 7000 10,000 ENGINE OIL OIL FILTER STRAINER OIL TRANSMISSION SPARK PLUG I & A I & A AIR FILTER ELEMENT* I & C I & C I & C CVT FILTER VALVE GAP CARBURETTOR...
  • Page 27 MAINTENANCE PERIOD 1 MONTH 4 MONTH 7 MONTH 10 MONTH ITEM 1000 4000 7000 10,000 I & A FREENESS STEERING FRONT SHOCK ABSORBER OIL WHEEL BEARING FRONT AND REAR SHOCK ABSORBER I & S I & S I & S I &...
  • Page 28 MAINTENANCE PERIODIC MAINTENANCE SCHEDULE PERIOD 13 MONTH 16 MONTH 19 MONTH 22 MONTH 25 MONTH 28 MONTH 31 MONTH ITEM 13,000 16,000 19,000 22,000 25,000 28,000 31,000 ENGINE OIL OIL FILTER STRAINER OIL TRANSMISSION SPARK PLUG I & A I & A AIR FILTER ELEMENT * I &...
  • Page 29 MAINTENANCE PERIODIC MAINTENANCE SCHEDULE PERIOD 13 MONTH 16 MONTH 19 MONTH 22 MONTH 25 MONTH 28 MONTH 31 MONTH ITEM 13,000 16,000 19,000 22,000 25,000 28,000 31,000 FREENESS STEERING I & A I & A FRONT SHOCK ABSORBER OIL WHEEL BEARING FRONT AND REAR SHOCK ABSORBER ALL BOLTS / NUTS I &...
  • Page 30 MAINTENANCE Battery The battery is located inside the front of the vehicle. To open the battery cover to access the frame head. Release procedure as follows. 1. Remove the license plate and open the hex screws M6x45 by 2 pieces of the bracket plate number. 2.
  • Page 31 MAINTENANCE 3. Do not add more electrical accessories. For reassembling follow the above procedure in reverse arrangement. Do not make jumper or replace a fuse with other materials, as this will make the partially damaged the electrical system. 3. Open and remove the M6x20 screws from the bottom cover of the frame head and remove the cover of the frame head.
  • Page 32 Do not clean the filter element with kerosene or gasoline. It will damage the air filter element. Air Filter Dazz TVS has a maintenance-free air filter with paper filter type. To remove the air filter, separate air filter cover from the air filter by removing the...
  • Page 33 MAINTENANCE Spark Plug To remove the spark plug cover center opening : Recommendation spark plug BOSCH - UR4KC 1. Vehicles must be in a condition to use the center 4. Remove the spark plug from cylinder head using stand . a plug spanner from the tool kit.
  • Page 34 MAINTENANCE Engine Oil It is advisable to tighten the spark plug by hand Check the engine oil level often and replace till the end then tighten with the spark plug spanner. periodically. Do not over tighten or cross thread the spark plug as the aluminum thread of the cylinder head will damaged.
  • Page 35 MAINTENANCE Idling RPM : 1600 ± 100 2. Remove gauge oil level (Dipstick) from the cover clutch. It is recommended not to disturb the air screw when the 3. Wipe off the oil from dipstick and insert to the engine performance is good. oil filling orifice.
  • Page 36 MAINTENANCE Engine oil replacement 3. Clean the filter oil with compressed air and refit. 1. Warm up the engine for few minutes. Repeat the first two steps of oil level check. 4. Reassemble the drain plug. 2. Remove the oil drain plug using a 17 mm 5.
  • Page 37 MAINTENANCE Oil filter drain pipe Brake Check the exhaust pipe oil filter at all times Front disk brake periodically and clean if necessary Front disc brake adjustment is not necessary if the 1. Move the drain hose clamp clips. conditions according to the rules. Adjustment will 2.
  • Page 38 MAINTENANCE 2. If the brake fluid is below the line of the leak check and add if necessary. 15-20 mm 3. When the braking feel soft and ineffective, it may be due to the presence of air in the brake system which need to be removed.
  • Page 39 MAINTENANCE Brake wear limit indicator Brake wear indicator Rear brake shoe wear indicator Check the thickness of the front brake. If gap has When the rear brakes are ineffective or noisy, exceeded usage indicator then replace it with a contact authorised service centre for servicing or new.
  • Page 40 MAINTENANCE Tyre Tyre air pressure If the air pressure is less or more, it will reduce life of the tyre but also will affect stability of the vehicle. Tyre tread condition Running the bike with coorn out tyre will reduce the driving stability control and loss of control of Air Pressure Front...
  • Page 41 2. Pull out and remove the wheel axle with disc Tyre Puncture brakes, spacers and speedo hub drive. TVS DAZZ equipped with tubeless tyres at the front and rear wheels. In the event of a flat tyre, it is recommended to consult with TVS authorized dealer or tyre repair shop specialised in tubeless tyre repair.
  • Page 42 MAINTENANCE 3. Separate the handle cover and remove the front headlamp wiring connector and remove the cover from the front handle. 4. Separate cover headlamp. 5. Rotate the headlamp holder clockwise and release. 6. Remove and Replace bulb with a new one. 7.
  • Page 43 MAINTENANCE Headlamp beam adjustment Head lamp beam can be adjusted by loosening the hexagonal screw at the bottom of cover handle bar front, tilt the headlamp assy as required and tighten the hexagonal screw. Always use the recommended light bulb ...
  • Page 44 MAINTENANCE Tail lamp bulb TVS DAZZ Tail lamp bulb can be replaced by removing lens tail lamp. Removal procedure is as follows: 1. Remove screws (2nos) from tail lamp 2. Take out the lens 3. Tail lamp bulb & turn signal lamps are accessible 4.
  • Page 45 SERVICE RECORD SERVICE RECORD SHEET JOB CARD SERVICING SERVICE SCHEDULE / DATE READING DEALERS STAMP 1st service 1 month or 1000 km whichever occurs earlier 2nd service 4 months or 4000 km whichever occurs earlier 3rd service 7 months or 7000 km whichever occurs earlier 4th service 10 months or 10000 km...
  • Page 46 SERVICE RECORD SERVICE RECORD SHEET JOB CARD SERVICING SERVICE SCHEDULE / DATE READING DEALERS STAMP 6th service 16 months or 16000 km whichever occurs earlier 7th service 19 months or 19000 km whichever occurs earlier 8th service 22 months or 22000 km whichever occurs earlier 9th service 25 months or 25000 km...
  • Page 47 SERVICE RECORD SERVICE RECORD SHEET JOB CARD SERVICING SERVICE SCHEDULE / DATE READING DEALERS STAMP 11th service 31 months or 31000 km whichever occurs earlier 12th service 34 months or 34000 km whichever occurs earlier 13th service 37 month or 37000 km whichever occurs earlier 14th service 40 months or 40000 km...
  • Page 48 SERVICE RECORD SERVICE RECORD SHEET JOB CARD SERVICING SERVICE SCHEDULE / DATE READING DEALERS STAMP 16th service 46 months or 46000 km whichever occurs earlier 17th service 49 months or 49000 km whichever occurs earlier 18th service 52 months or 52000 km whichever occurs earlier 19th service 55 months or 55000 km...
  • Page 49 TVS Global Automobile Traders FZCO Sales and Marketing Ofce: 16th Floor, 6789 Tower, Ayala Avenue Makati, Manila, Philippines email: support.ph@tvsmotor.com +63 2 835 8925 TVS Philippines-ORIGINAL Edition January 2018...
