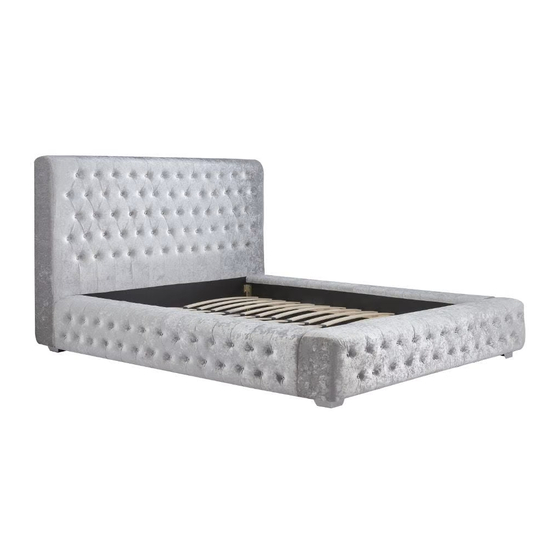

Grande 4ft, 4ft6 & 5ft Fabric Bed
Important before assembly:
Read these instructions carefully before assembling or using the product.
Please check the contents of the boxes before attempting to assemble this product. The instructions will
have a checklist of parts and fittings.
It would be sensible to lay a rug or a carpet on the floor where you intend to assemble the product, to avoid
scratches and damaging the product or the floor.
Assemble the product as close to its intended final location/room as possible.
Do NOT use any power tools as this may damage the frame.
Health & Safety:
This product or some parts of this product will be heavy. Please use an assistant when lifting.
Please keep small parts out of reach of children.
Always use on a level, even surface.
DO NOT jump on the product or any of its parts.
DO NOT use this product if any parts are missing, damaged or worn.
DO NOT use this product unless all fixings are secured.
Please keep these instructions for future reference.
Assembly Instructions
Title of Product
.
.
www.happybeds.co.uk
Advertisement
Related Manuals for Happybeds Grande 4ft
Summary of Contents for Happybeds Grande 4ft

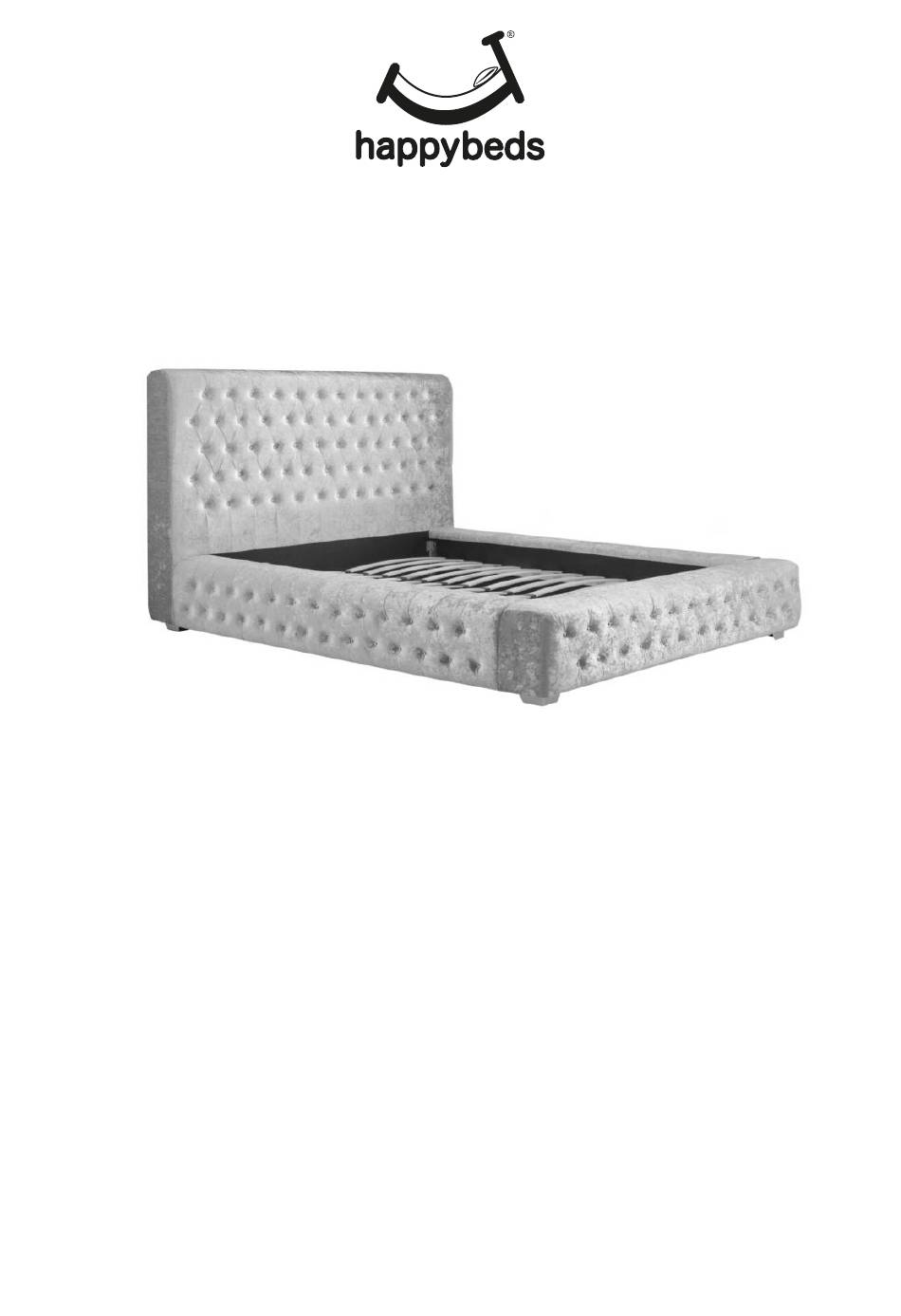

- Page 1 Assembly Instructions Title of Product Grande 4ft, 4ft6 & 5ft Fabric Bed Important before assembly: Read these instructions carefully before assembling or using the product. Please check the contents of the boxes before attempting to assemble this product. The instructions will have a checklist of parts and fittings.
- Page 2 Never drag or push the pieces across a hard or stone floor as this will cause damage to the joints. Use a carpet or a rug for extra care. If you have problems assembling or have damaged or missing pieces, please contact us by visiting: https://www.happybeds.co.uk/customer-service...
- Page 3 Assembly Instructions Thank you for For a chance to win a Love 2 Shop voucher simply post a picture of your new product on your preferred social purchasing a channels tagging Birlea Furniture and using the hashtag #ShareYourStyle Birlea product. and #Birlea.
- Page 4 Grande Bed - Super King Assembly Instructions Before you begin... 1. Please check you have received the correct product. 2. Unpack all boxes and lay out each component on the floor. 3. Check your product for any damage that may be immediately obvious. If damage is identified, please contact your retailer.
- Page 5 Box 1 Headboard (x1) Box 2 Side Rails (x2) Centre Support Rail (x2) Box 3 All fittings are stored within Box 3 Support Leg (x4) Footboard (x1) Slats (x42) Legs (x4) Spring Washer (x8) Flat Washer (x8) M8x30mm Bolts (x16) Nuts (x8) M5 Allen Key (x1) Page 3 of 6...
- Page 6 Box 3 Cont... Slat Caps (x28) Centre Slat Caps (x28) Spanner (x1) Screw (x16) M8x40mm Bolts (x8) Step 1 Unpack all components from the boxes and check you are not missing anything. Please check these against the list on page 3 and 4. Should you identify any missing components, please contact the retailer you purchased the bed from. Page 4 of 6...
- Page 7 Step 2 Attach 2x Legs to the 1x Headboard and then attach 2x Legs to the 1x Footboard using 16x Screw and Screwdriver (Not Provided) . Please do not use any power tools for this assembly as it will void your guarantee. Step 3 Next, attach 4x Support Leg ( ) to 2x Centre Support Rail (...
- Page 8 Step 4 Attach 2x Side Rails to 1x Headboard and 1x Footboard using 8x M8x30mm Bolt , 8x Spring Washer , 8x (A) and Flat Washer and 1x M5 Allen Key . Then attach 2x Centre Support Rail ( ) to 1x Headboard 1x Footboard using 8x (H) and...
-
Page 9: General Care And Maintenance
floor as this will cause damage to the joints and could result in failure to the product that will invalidate the warranty. For more information on cleaning and product care visit: https://www.happybeds.co.uk/help-and-advice Notes We’ve tried to make this product as easy to assemble as possible. In the unlikely event that...
