Assembly Instructions

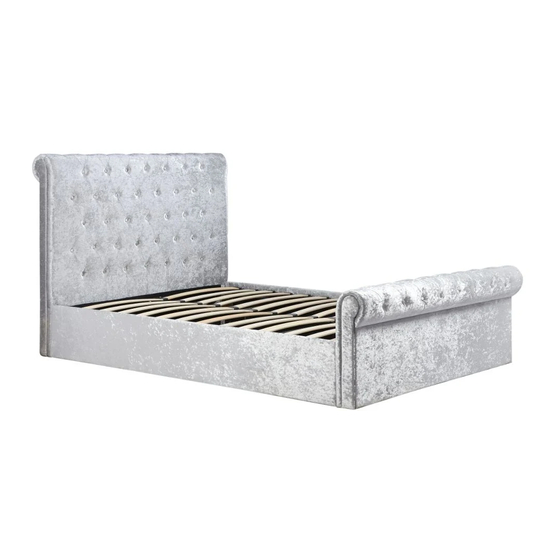

Sienna Ottoman Storage Bed
4ft
Important before assembly:
Read these instructions carefully before assembling or using the product.
Please check the contents of the boxes before attempting to assemble this product. The instructions will
have a checklist of parts and fittings.
It would be sensible to lay a rug or a carpet on the floor where you intend to assemble the product,
to void scratches and damaging the product or the floor.
Assemble the product as close to its intended final location/room as possible.
Do NOT use any power tools as this may damage the frame.
Health & Safety:
This product or some parts of this product will be heavy. Please use an assistant when lifting.
DO NOT jump on the product or any of its parts.
DO NOT use this product if any parts are missing, damaged or worn.
DO NOT use this product unless all fixings are secured.
Please keep small parts out of reach of children.
Always use on a level, even surface.
Please keep these instructions for future reference.
www.happybeds.co.uk

Advertisement

loading

Related Manuals for Happybeds Sienna Ottoman Storage Bed 4ft

Summary of Contents for Happybeds Sienna Ottoman Storage Bed 4ft

  • Page 1 DO NOT use this product if any parts are missing, damaged or worn. DO NOT use this product unless all fixings are secured. Please keep small parts out of reach of children. Always use on a level, even surface. Please keep these instructions for future reference. www.happybeds.co.uk...
  • Page 2 Never drag or push the pieces across a hard or stone floor as this will cause damage to the joints. Use a carpet or a rug for extra care. If you have problems assembling or have damaged or missing pieces, please contact us by visiting: https://www.happybeds.co.uk/customer-service...
  • Page 3 Box 1 All fittings are stored within the zipped compartment of the headboard. Headboard (x1) Box 2 Side Rails (x2) D. Left & Right Frame Rail (x2) Hydraulic Part (x2) Centre Support Rail (x1) Box 3 Support Leg (x1) Slats (x26) Legs (x4) M8x30mm Bolts (x8) Nuts (x16)
  • Page 4 Box 3 Cont... M4 Allen Key (x1) M8x16mm Bolts (x4) M8x65mm Bolts (x4) Baton (x2) Step 1 Unpack all components from the boxes and check you are not missing anything. Please check these against the list on page 3 & 4. Should you identify any missing components, please contact the retailer you purchased the bed from. Page 4 of 8...
  • Page 5 Step 2 Attach 2x Legs to the 1x Headboard and then attach 2x Legs to the 1x Footboard . Please do not use any power tools for this assembly as it will void your guarantee. Step 3 Attach 2x Side Rails to 1x Headboard and 1x Footboard using 8x M8x30mm Bolt...
  • Page 6 Step 4 (F) using 6x M8x45mm Bolts (L), 6x Attach 2x Hydraulic Part ( ) and Baton ( ) to 1x Headboard and 1x Footboard Spring Washer (N) and 6x Flat Washer (M). Then attach 1x Cross Bar (T) to 2x Side Rail (B) using 2x M6x16mm Bolts (Y) and 1x M4 Allen Key (C1).
  • Page 7 Step 6 (O), 6x Attach the Centre Support Leg to the Centre Support Rail using 6x M8x45mm Bolts , M5 Allen Key Nuts and 1x Spanner Step 7 (MF) (O), 6x Attach the Metal Frame to the 2x Hydraulic Part using 6x M8x45mm Bolts , M5 Allen Key Nuts...
  • Page 8 Step 8 Slot each Slat Cap on to the end of each Slat . Then slot each Slat ( ) into each Centre Slat Cap ( ) Press firmly (MF) and then into the (C). Finally, attach Pull into each Metal Rail located on the Metal Frame Centre Support Rail Strap () to the Left or Right Frame Rail () by placing beneath the Metal Frame (MF) and pulling through the inside of the frame and to form a knot on the outer frame.

  • Page 9: General Care And Maintenance

    floor as this will cause damage to the joints and could result in failure to the product that will invalidate the warranty. For more information on cleaning and product care visit: https://www.happybeds.co.uk/help-and-advice Notes We’ve tried to make this product as easy to assemble as possible. In the unlikely event that...
