5 SIDETONE trimmer
With this trimmer one adjusts the
level of your voice as you hear it in
your headset.
Side tone adjustment procedure :
set trimmer in start position
•
: fully clockwise
switch off the microphones
•
of all connected
(speaker) stations
switch on the microphone of
•
the BS 17
turn up the volume
•
speak into the headset mic
and adjust the listen level by
turning the trimmer.
The trimmer operating area is be-
tween fully clockwise and minimum
level. Adjusting the side tone does
not affect the level of your voice as it
is heard by other stations.
5.0

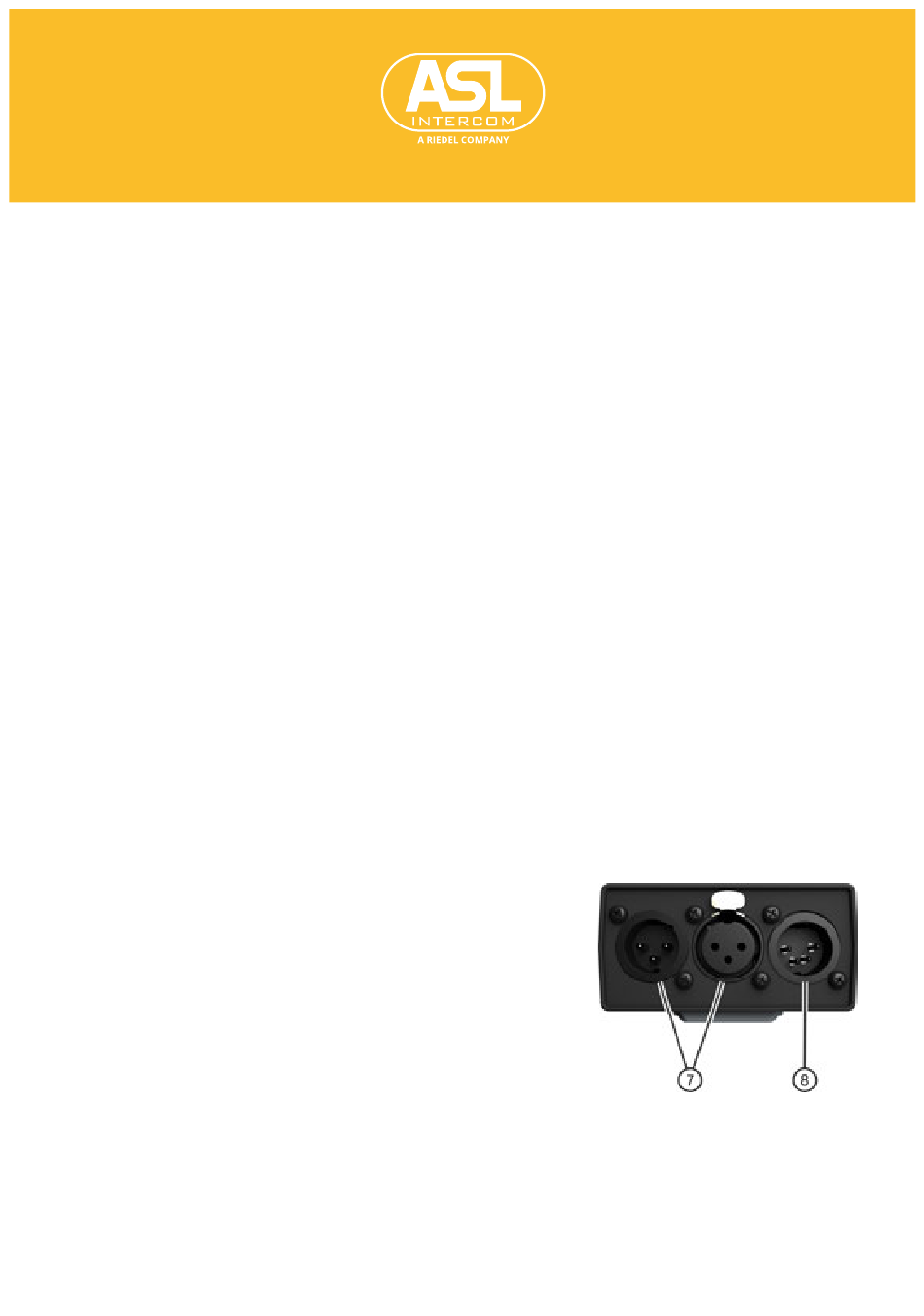

BOTTOM PANEL CONNECTORS

7 LINE connectors (XLR-3)
These XLR-3 connectors are for con-
necting the BS 17 to the party line in-
tercom system. The female XLR is the
intercom line input and the male XLR
is for extending the intercom line to
other user stations ('daisy chaining').
8 HEADSET connector (XLR-4)
An XLR-4 connector for the connec-
tion of a headset. The headset can(s)
