3.0

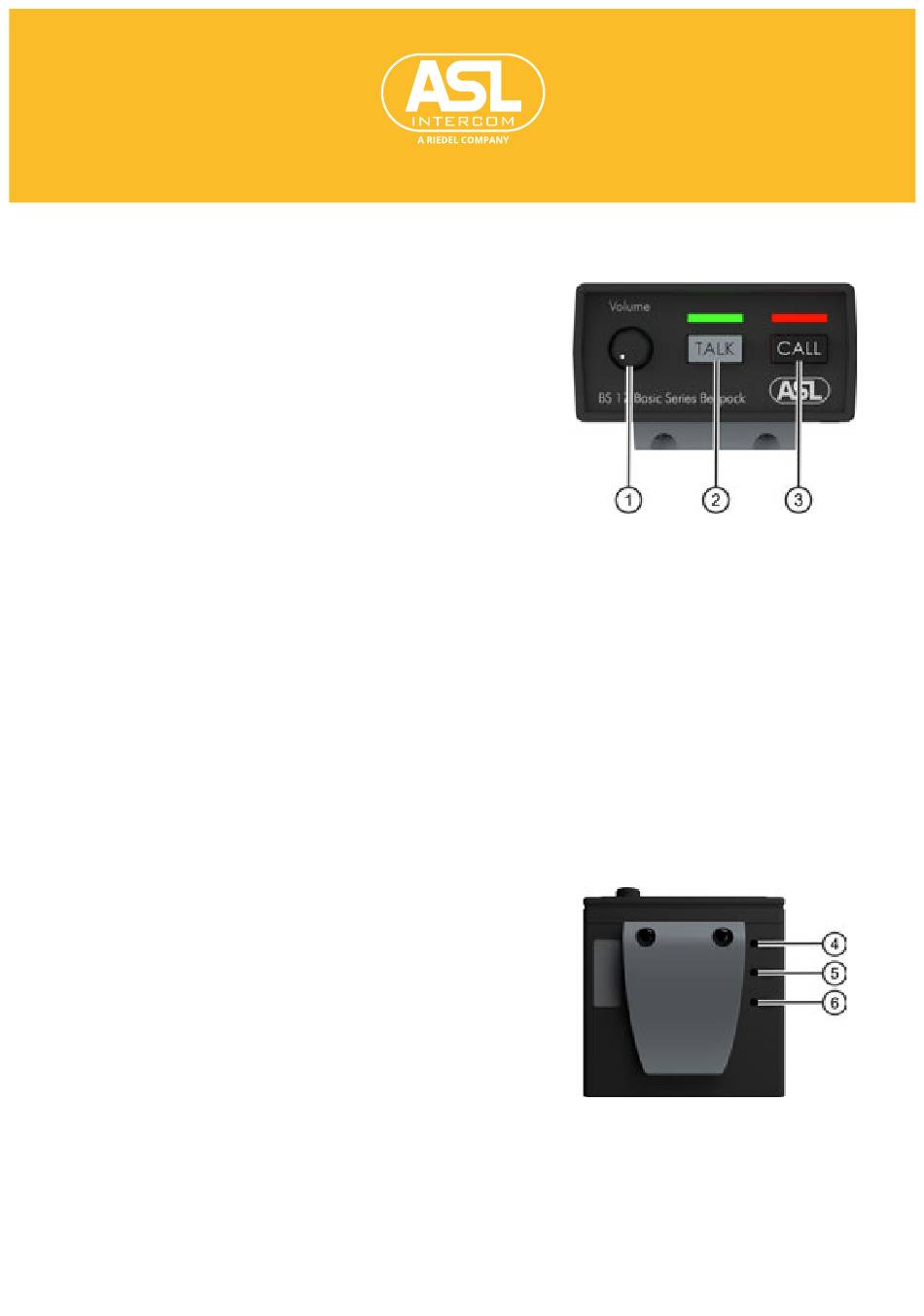

TOP PANEL CONTROLS
1
VOLUME control knob
To adjust the listen level for the head-
set
2
TALK button
This push button activates the head-
set mic. which is indicated by the
large green LED.
3
CALL button
This push button activates the call
system. By a momentary push a call
signal is sent to all stations connected
to the intercom channel and the call
LEDs start flashing. Push and hold the
CALL button for 2 seconds activates
the call buzzer. After the CALL button
is released the LEDs continue to flash
for a further 2 seconds.
4.0
SIDE PANEL CONTROLS
4
BUZZER VOLUME trimmer
With this trimmer one adjusts the
volume of the internal buzzer.
6
MIC GAIN trimmer
To increase mic gain, turn trimmer
clockwise. To decrease mic gain,
turn trimmer counterclockwise
4
