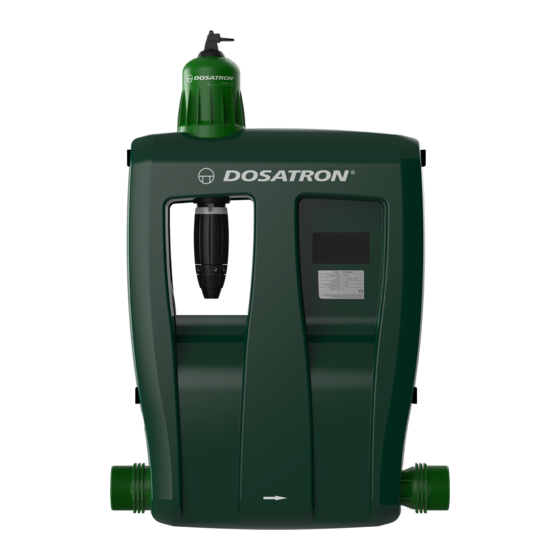

dosatron GREEN LINE D30 GL Quick Start-Up

CAUTION
- When connecting a DOSATRON either to the
public water supply or to its own water source, you
must respect the regulations in force concerning
protection of the source i.e. backflow prevention, etc.
- Contact local authorities for requirements of
backflow prevention.
- When installing, operating, and maintaining the
DOSATRON water powered metering pump, keep
safety considerations foremost. Use proper tools,
protective clothings, and eye protection when
working on the equipment and install the equipment
with a view toward ensuring safe operation.
- Follow the instructions in the manual and take
additional safety measures appropriate to the liquid
being pumped and the temperature of the water that
powers the DOSATRON. Be extremely careful in the
presence of hazardous substances (e.g. corrosives,
toxins, solvents, acids, caustic, flammables, etc.).
- Before applying any aggressive chemicals, please
consult your distributor to confirm compatibility with
the dosing pump.
Hand tighten. No tools needed.
RECOMMENDATIONS
DO NOT USE THIS UNIT WITHOUT A 80-130
MICRON [200-120 MESH] WATER FILTER*
OR YOUR WARRANTY WILL BE VOID.
*The 80-130 micron [200-120 mesh] water filter (sold
separately) protects your unit from debris in the water
that causes scoring to the piston and housing.
KNOW YOUR WATER FLOW!
GRADUALLY TURN ON THE WATER.
COUNT THE NUMBER OF CLICKS IN
15 SECONDS. DO NOT EXCEED 46* CLICKS.
CLICK CHART
Clicks/15 sec
2
4
8
16
30
45
MAXIMUM PRESSURE 8 bar* [116 PSI]
l/h
1250
2500
5000
10000
20000
30000
