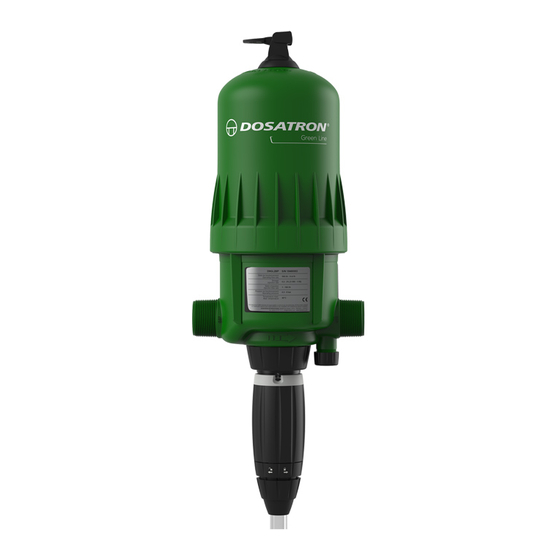

dosatron D9 Green Line Owner's Manual

Hide thumbs Also See for D9 Green Line:
Table of Contents

Advertisement

Quick Links

Enlarged version
Owner's manual
MANUFACTURED BY
DOSATRON INTERNATIONAL S.A.S.
Rue Pascal - B.P. 6 - 33370 TRESSES (BORDEAUX) - FRANCE
Tel. 33 (0)5 57 97 11 11
Fax. 33 (0)5 57 97 11 29 / 33 (0)5 57 97 10 85
info@dosatron.com - www.dosatron.com
© DOSATRON INTERNATIONAL S.A.S 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D9 Green Line and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for dosatron D9 Green Line

Summary of Contents for dosatron D9 Green Line

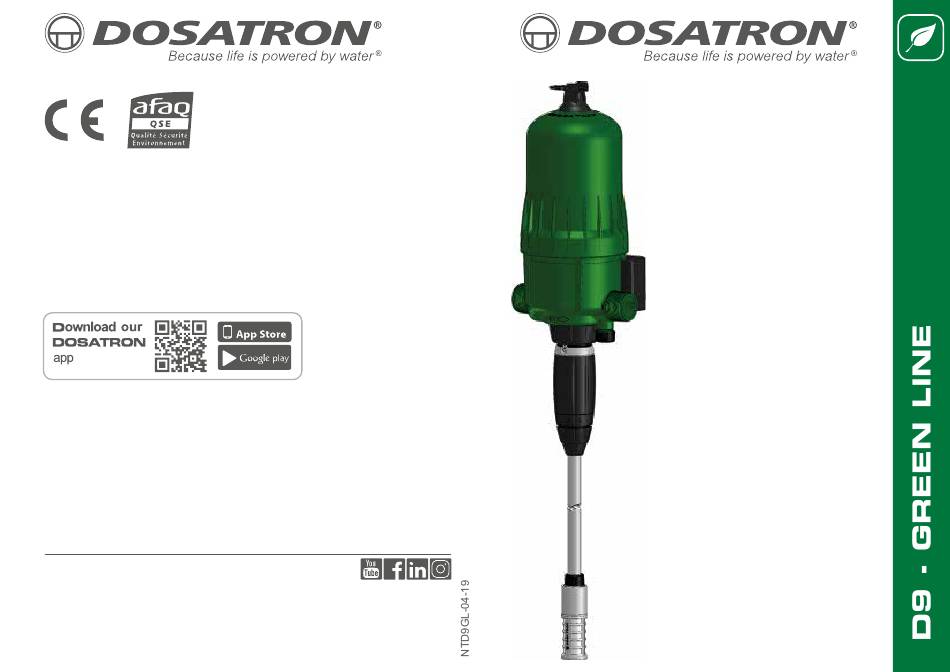

  • Page 1 Rue Pascal - B.P. 6 - 33370 TRESSES (BORDEAUX) - FRANCE Tel. 33 (0)5 57 97 11 11 Fax. 33 (0)5 57 97 11 29 / 33 (0)5 57 97 10 85 info@dosatron.com - www.dosatron.com © DOSATRON INTERNATIONAL S.A.S 2019...
  • Page 2 DOSATRON water-powered metering pumps. Over time this DOSATRON will prove itself to be a most faithful ally. A few regular maintenance operations will guarantee operation in which the word “breakdown” will no longer be heard.

  • Page 3: Table Of Contents

    ..............Dimensions ................46 ..............INSTALLATION ..............Precautions ................49 ..............Installation of the Dosatron ............. 52 ..............Changing the dosing scale ............. 54 Connecting the suction hose ..........56 ..............Installation tips ................ 57 ..............Automatic product anti-siphoning system ....... 59 ..............

  • Page 4: Marking/Identification/Characteristics

    A technical label on each side of the dosing pump body indicating the techni- BP: Manual by-pass cal performances of the appliance. Dosing Seals VF: Acidic liquids (pH 0-9) D9GL02BPVF D9GL02BPVF 18124321 18124321 REF. Serial No.: © © DOSATRON INTERNATIONAL S.A.S / 6 DOSATRON INTERNATIONAL S.A.S / 7...

  • Page 5: Characteristics

    D9GL2 D9GL5 A unique technology associating all dosing functions Installed on the water supply line, the Dosatron uses water pressure Operating flow: 500 l/h min. 9 m /h max. [2.2 - 40 US gpm]. as the only power source. Thus activated, it takes up the required Max.

  • Page 6: Installation

    Suction hose excessive heat sources and in winter + strainer + ballast away from frost. Hose nut - Do not install the DOSATRON on the water pump suction circuit (risk of siphoning). DOSING PART © © DOSATRON INTERNATIONAL S.A.S / 10...
  • Page 7 - In the case where a DOSATRON - An airtightness problem, an serves several sectors, activate impurity or a chemical attack on the solenoid valves simultaneously...

  • Page 8: Installation Of The Dosatron

    3 kg (reminder: 1 N . m = 0.1 DaN.m) The DOSATRON can be connected to the water supply line by means of 40 mm interior diameter flexible pipes fixed with swivel fittings Ø 40 x 49 mm [1 1/2”]. Make certain that the water flows in the direction of the arrows (water flow) on the appliance.

  • Page 9: Changing The Dosing Scale

    CHANGING THE DOSING SCALE The DOSATRON dosing rate can be adjusted according to two scales: percentages and ratios. These scales are positioned on either side of the dosing part (Fig.2). Depending on the liquid circulation direction in the hydraulic installation, and on the direction in which the dosing pump is mounted on its bracket, it may be necessary to change the orientation of this scale.

  • Page 10: Connecting The Suction Hose

    If your flow is above DOSATRON limits, see the § OVERFLOW. Model 0.2 to 2% To prolong the service life of the DOSATRON, it is advisable to fit an upstream - Unscrew the nut (Fig. 6) at filter (e.g. 130 microns - 120 mesh depending on your water quality).

  • Page 11: Automatic Product Anti-Siphoning System

    WHAT YOU MUST NOT DO OVERFLOW (as an indication) If your DOSATRON clacks more than 44 times in 15 seconds, (i.e. 22 cycles) you are at the upper flow capacity limit. Beyond this select a DOSATRON with a higher water flow capacity.

  • Page 12: Putting The Dosatron Into Service

    The DOSATRON is fitted with a by-pass function in its upper part as standard: - By-pass set to ON, the DOSATRON works and the concentrate is drawn up. - By-pass set to OFF, the DOSATRON is stopped and does not draw up the product.

  • Page 13: Dosing Principle

    DOSING PRINCIPLE FEET OPTIONS Principle: Adjustment at 1% - 1/100 = 1 volume of concentrate to If necessary, or if a wall installation is impossible, the D9 series Dosatron 100 volumes of water. may be installed on feet using Kit 8EQ001:...

  • Page 14: Maintenance

    DRAINING THE DOSATRON (in the context of keeping it frost-free) Maintenance For complete maintenance of the DOSATRON, or to protect it from frost, draining may be necessary. - Turn off the water inlet and allow the pressure to drop to zero.

  • Page 15: Dismantling The Suction Hose

    Fig. 25 - Manually retighten the fixing nut on the dosing part © © DOSATRON INTERNATIONAL S.A.S / 28 DOSATRON INTERNATIONAL S.A.S / 29...

  • Page 16: Changing Seals In The Dosing Part

    CHANGING SEALS IN THE DOSING PART Frequency: At least once per year. Contact DOSATRON, or a dealer to select the appropriate seal kit for your dosing pump. Fig. 26d For dismantling the dosing part, follow the instructions in the §...

  • Page 17: Cleaning And Refitting The Suction Valve

    CLEANING AND REFITTING THE SUCTION VALVE CHANGING THE MOTOR PISTON (unpressurised) Before any maintenance on the DOSATRON, it is essential to refer to the § Before performing any maintenance on the DOSATRON, please make sure PRECAUTIONS. you refer to the § PRECAUTIONS.

  • Page 18: Troubleshooting

    Dosing pump body DOSATRON INTERNATIONAL Replace it. scratched. DECLINES ALL RESPONSIBILITY IN THE EVENT OF USE THAT IS NOT COMPLIANT WITH THE INSTRUCTIONS FOR USE. © © DOSATRON INTERNATIONAL S.A.S / 34 DOSATRON INTERNATIONAL S.A.S / 35...

  • Page 19: Limited Warranty

    KNOW YOUR FLOW Limited Warranty A SIMPLE METHOD THE DOSATRON IS COMPOSED OF: DOSATRON INTERNATIONAL S.A.S. installation appliance, backwards forwards movement, the motor piston clacks: agrees to replace any part recognised inappropriate use of tools, lack of to be defective originally for a period...
  • Page 20 Enclosure Curves © © DOSATRON INTERNATIONAL S.A.S / 38 DOSATRON INTERNATIONAL S.A.S / 39...
  • Page 21 Pressure loss D9 2% D9 5% © © DOSATRON INTERNATIONAL S.A.S / 40 DOSATRON INTERNATIONAL S.A.S / 41...
  • Page 22 Viscosity curves D9 2% D9 5% © © DOSATRON INTERNATIONAL S.A.S / 42 DOSATRON INTERNATIONAL S.A.S / 43...
  • Page 23 This document does not form a contractual engagement on the part of DOSATRON INTERNATIONAL and is for information only. The company DOSATRON INTERNATIONAL reserves the right to alter product specification or appearance without prior notice. CE Conformity Statement Document N° DOCE06050103 This Dosatron is in compliance with the European Directive 2006/42/CE.
