Scan the QR code to
watch our D25RE09 -
Troubleshooting video.
Proper protection, such as gloves, eye wear, and aprons, are recommended when disassembling a Dosatron.

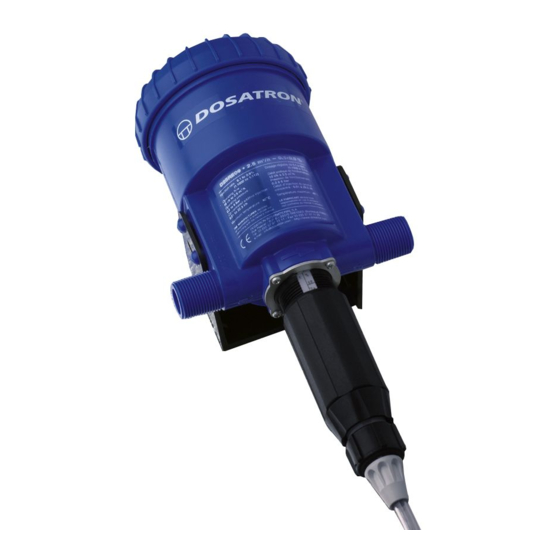

D25RE09 - Troubleshooting - Part 1
This D25RE09 - 11 GPM Troubleshooting Part 1 will cover: The injector is clicking, but
not drawing the concentrate.
800-523-8499
www.dosatronusa.com
NOTE: To service your D25RE09 you will need a strap wrench
(Part #: TOOL01) and a Phillips head screwdriver.
Step 1: If your Dosatron is clicking but not drawing the
concentrate, it could be as simple as the strainer is plugged
with debris. Take a look at the strainer, if it's clogged just clean it.
Then, turn on the water and re-test your Dosatron unit.
Step 2: If the unit is still not drawing the concentrate, unscrew and
remove the hose nut and hose.
Step 3: Check to see if you feel suction on your finger.
Page 1
P421
Piston shell
J020
Push rod o-ring
JDI098
Injection stem o-ring
M238
Actuator springs
JDI106
Plunger seal
PJDI026
Check valve assembly
Advertisement
Related Manuals for dosatron D25RE09
Summary of Contents for dosatron D25RE09
- Page 1 Proper protection, such as gloves, eye wear, and aprons, are recommended when disassembling a Dosatron. D25RE09 - Troubleshooting - Part 1 This D25RE09 - 11 GPM Troubleshooting Part 1 will cover: The injector is clicking, but not drawing the concentrate.
- Page 2 800-523-8499 www.dosatronusa.com Proper protection, such as gloves, eye wear, and aprons, are recommended when disassembling a Dosatron. D25RE09 - Troubleshooting - Part 1 Step 4: If you feel suction, cut a half-inch off the top of the hose and reattach it. But, if the hose is cracked, rigid, or looks really old just replace it.
- Page 3 800-523-8499 www.dosatronusa.com Proper protection, such as gloves, eye wear, and aprons, are recommended when disassembling a Dosatron. D25RE09 - Troubleshooting - Part 1 Step 7: Grasp the white valve support and pull the piston straight out of the body. Set the body aside.
- Page 4 800-523-8499 www.dosatronusa.com Proper protection, such as gloves, eye wear, and aprons, are recommended when disassembling a Dosatron. D25RE09 - Troubleshooting - Part 1 Step 10: Carefully insert the piston back into the body. Step 11: Replace the lid hand tight. Slowly turn the water on and the unit should begin to click.
- Page 5 800-523-8499 www.dosatronusa.com Proper protection, such as gloves, eye wear, and aprons, are recommended when disassembling a Dosatron. D25RE09 - Troubleshooting - Part 2 This D25RE09 - 11 GPM Troubleshooting Part 2 will cover: The injector is pushing water down into the concentrate tank.
- Page 6 800-523-8499 www.dosatronusa.com Proper protection, such as gloves, eye wear, and aprons, are recommended when disassembling a Dosatron. D25RE09 - Troubleshooting - Part 2 Step 4: The top part that includes the spring is one piece and shouldn’t be disassembled. Step 5: To investigate the check valve, carefully lift the cone from the retainer.
- Page 7 800-523-8499 www.dosatronusa.com Proper protection, such as gloves, eye wear, and aprons, are recommended when disassembling a Dosatron. D25RE09 - Troubleshooting - Part 2 Step 7: To re-assemble, place the check valve assembly (Part #: PJDI026) into the top of the barb.
- Page 8 800-523-8499 www.dosatronusa.com Proper protection, such as gloves, eye wear, and aprons, are recommended when disassembling a Dosatron. D25RE09 - Troubleshooting - Part 3 This D25RE09 11 - GPM Troubleshooting Part 3 will cover: The injector isn’t clicking. Step 1: Turn the water off and press the air bleed button on the top of the lid a few times to release the pressure.
- Page 9 800-523-8499 www.dosatronusa.com Proper protection, such as gloves, eye wear, and aprons, are recommended when disassembling a Dosatron. D25RE09 - Troubleshooting - Part 3 Step 4: Inspect the white valve support on the top and press the pushrod down. Step 5: Check the two actuator springs (Part #: M238) on the bottom.
- Page 10 800-523-8499 www.dosatronusa.com Proper protection, such as gloves, eye wear, and aprons, are recommended when disassembling a Dosatron. D25RE09 - Troubleshooting - Part 3 Step 7: Also, check the piston shell’s fit inside the body. To do this, invert the piston and slide it into the body. It should be a snug fit.
- Page 11 800-523-8499 www.dosatronusa.com Proper protection, such as gloves, eye wear, and aprons, are recommended when disassembling a Dosatron. D25RE09 - Troubleshooting - Part 3 Step 10: Press the pushrod up and slide the valve support off the inlet valve and set aside.
- Page 12 800-523-8499 www.dosatronusa.com Proper protection, such as gloves, eye wear, and aprons, are recommended when disassembling a Dosatron. D25RE09 - Troubleshooting - Part 3 Step 13: Put the new push rod o-ring on top of the push rod and slide it down as far as it will go.
- Page 13 800-523-8499 www.dosatronusa.com Proper protection, such as gloves, eye wear, and aprons, are recommended when disassembling a Dosatron. D25RE09 - Troubleshooting - Part 3 Step 16: Press the white plastic portion of the actuator side to side. If there is movement, re-tighten the screws.
- Page 14 800-523-8499 www.dosatronusa.com Proper protection, such as gloves, eye wear, and aprons, are recommended when disassembling a Dosatron. D25RE09 - Troubleshooting - Part 3 Step 19: Test the piston, by pressing the pushrod from the top and bottom, it should click each time.
- Page 15 800-523-8499 www.dosatronusa.com Proper protection, such as gloves, eye wear, and aprons, are recommended when disassembling a Dosatron. D25RE09 - Troubleshooting - Part 3 To learn more, scan the QR codes below for more information. Scan the QR Scan the QR code code to go to to go to Dosatron’s...
