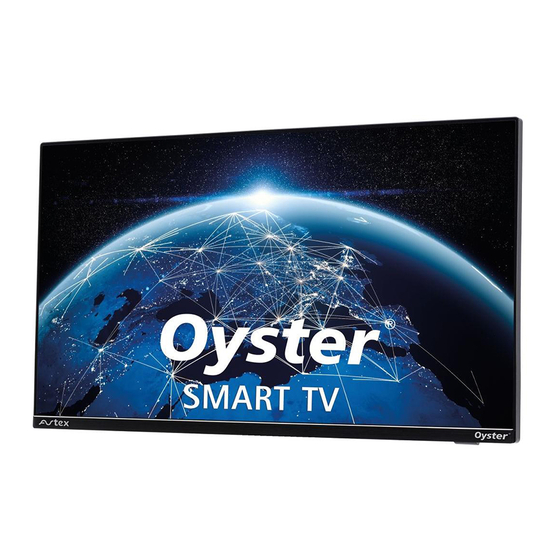

Oyster® Smart TV
OPERATING INSTRUCTIONS
www.ten-haaft.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Oyster and is the answer not in the manual?

Questions and answers

Related Manuals for Ten-Haaft Oyster

Summary of Contents for Ten-Haaft Oyster

  • Page 1 Oyster® Smart TV OPERATING INSTRUCTIONS www.ten-haaft.com...

  • Page 2: Table Of Contents

    2.1 Remote control 2.2 Interfaces / operation at the device (19,5“, 21,5“, 24“) 2.3 Interfaces / operation at the device (27“, 39“) 3. Operation of the Oyster® Smart TV 3.1 Start-up 3.2 Connecting the TV to the Internet Setting up a WLAN connection Wired (LAN) network connection 3.3 Main menu...

  • Page 3: General

    1. GENERAL 2. CONTROL ELEMENTS 1.1 Introduction 2.1 Remote control These instructions describe the function and the operation of the Oyster® Smart TV. But- Function 1.2 Scope of delivery Power ON/OFF Oyster® Smart TV with remote control and on-board voltage connection cable.
  • Page 4 2. CONTROL ELEMENTS 2. CONTROL ELEMENTS Button Function Button Function Switch between TV and radio mode + Increase / - decrease volume Display of signal strength/quality of reception Move up one programme Change picture play back mode PICTURE Move down one programme Change audio play back mode SOUND Muting of sound on/off...

  • Page 5: Interfaces / Operation At The Device (19,5", 21,5", 24")

    2. CONTROL ELEMENTS 2. CONTROL ELEMENTS 2.2 Interfaces / operation at the device (19.5“, 21.5“, 24“) Connections and control elements (19.5“, 21.5“, 24“) 01) CI/CI+ module slot 02) USB 1 connection 03) USB 2 connection PCMCIA USB2 USB1 04) Headphones Connection 3.5 mm stereo jack bush 05) AV input by means of adapter...

  • Page 6: Interfaces / Operation At The Device (27", 39")

    2. CONTROL ELEMENTS 2. CONTROL ELEMENTS 2.3 Interfaces / operation at the device (27“, 39“) Connections and control elements (27“, 39“) CI/CI+ module slot USB 1 + 2 connection Headphones connection, 3.5 mm jack bush AV input by means of adapter 12V / 24V DC electrical connection LAN connection HDMI 1 ARC / HDMI 2...
  • Page 7 2. CONTROL ELEMENTS 2. CONTROL ELEMENTS COMMON INTERFACE SLOT SIGNAL INPUTS The common interface (CI+) slot can hold a conditional access module (CAM) with SmartCard that allows you to HDMI / AV setup use pay-tv programmes and offers. Contact your television provider to obtain further information on contracts The menus for HDMI or AV connections are comparable to those of normal TV reception, except that you cannot and on the modules.

  • Page 8: Operation Of The Oyster® Smart Tv

    3. OPERATION OF THE OYSTER® SMART TV 3. OPERATION OF THE OYSTER® SMART TV 3.1 Start-up 3.2 Connecting the TV to the Internet POWER ON SETTING UP A WLAN CONNECTION Note: Unless otherwise indicated, all references are to buttons on the remote control.
  • Page 9 3. OPERATION OF THE OYSTER® SMART TV 3. OPERATION OF THE OYSTER® SMART TV … then select the network configuration DHCP Select the base station with the cursor keys and press For a wireless connection via the integrated WLAN of the television set, please select WiFi network.

  • Page 10: Wired (Lan) Network Connection

    3. OPERATION OF THE OYSTER® SMART TV 3. OPERATION OF THE OYSTER® SMART TV Select the option Password and press Once the TV is connected, a blue WLAN symbol appears in the top right corner of the main menu. At this point, you need to enter the network password. This can normally be found on the reverse side of your WIRED (LAN) NETWORK CONNECTION router / connected device or in the operating instructions of the device provided.
  • Page 11 3. OPERATION OF THE OYSTER® SMART TV 3. OPERATION OF THE OYSTER® SMART TV When the connection was successful, press . A symbolic network socket is shown on the top right corner of Make sure that IPv4 is highlighted and press the screen.

  • Page 12: Main Menu

    3. OPERATION OF THE OYSTER® SMART TV 3. OPERATION OF THE OYSTER® SMART TV 3.3 Main menu Channel settings and search run (DVB-S2) Automatic search The main menu allows you to set up your television. Select “Auto Search” • Press to select the main menu.
  • Page 13 3. OPERATION OF THE OYSTER® SMART TV 3. OPERATION OF THE OYSTER® SMART TV Auto Scan Please note: If a programme list has already been compiled, for example using the setting “Free”, and another search with the setting “Scrambled” is carried out, the previously found free channels will be removed from the When you have selected this item, you can determine in the “Satellite”...
  • Page 14 3. OPERATION OF THE OYSTER® SMART TV 3. OPERATION OF THE OYSTER® SMART TV Network search Editing the DVB-S programme With the “Network search” item, you can determine whether the search run will consider any cross references to Here you can change the programme sequence within the list of channels, compile a list of favourites, delete other transponders.

  • Page 15: Channel Settings And Search Run (Dvb-T2)

    Note: Satellite has the same frequency all over Europe; the frequencies for DVB-T differ depending on region. In this menu you can change different settings for the picture of the Oyster® Smart TV. Here you can make the following settings:...

  • Page 16: Sound

    3. OPERATION OF THE OYSTER® SMART TV 3. OPERATION OF THE OYSTER® SMART TV SOUND PICTURE MODE: Standard (delivery condition) In this menu you can make different SOUND settings. The following options are available: Movie (softer picture, optimised for the best movies look)

  • Page 17: Time

    Enables you to programme a certain time when the device will automatically switch on. In addition, you To operate an Oyster soundbar, it is compulsory that PCM remains set. can specify on which source (e.g. DVB-S) and on which channel (e.g. 3) the device is to be switched on. The volume at which the device starts can also be set.

  • Page 18: Set-Up

    3. OPERATION OF THE OYSTER® SMART TV 3. OPERATION OF THE OYSTER® SMART TV SET-UP Enables you to access a multitude of settings to customise the device. To do so, it is sufficient to simply set the setting “Lock system” to “On”.
  • Page 19 HDMI CEC Enables you to make settings and adjustments that control the interaction between the television and devices connected via HDMI. To operate an Oyster soundbar on the television, it is compulsory that HDMI CEC and ARC stay on. Auto standby and Auto power control whether the television can be switched off or on from connected HDMI...

  • Page 20: Media

    3. OPERATION OF THE OYSTER® SMART TV 3. OPERATION OF THE OYSTER® SMART TV CONFIGURATION This function is only relevant for service technicians. MEDIA The television is equipped with a built-in media player. Media can be played back both from locally plugged in USB data carriers and from other DLNA devices located in the same network.

  • Page 21: Other Functions

    3. OPERATION OF THE “OYSTER® SMART TV” 3. OPERATION OF THE “OYSTER® SMART TV” 3.4 Other functions LIST OF FAVOURITES (SATELLITE TV) YOUTUBE APP Press button to call up the list of favourites. See also page 27, Creating a list of favourites.
  • Page 22 3. OPERATION OF THE “OYSTER® SMART TV” 3. OPERATION OF THE “OYSTER® SMART TV” AUDIO Once you have called up the video text, you can make it transparent by pressing the button again; the TEXT You can select the language and sound track by pressing the button AUDIO programme can simultaneously be seen in the background.
  • Page 23 4. TECHNICAL SPECIFICATION 4. TECHNICAL SPECIFICATION 4.1 Technical specification Oyster Smart TV ® ten Haaft TV devices 19” 21.5” 24” 27” 39” Type L199TS-F L219TRS-F L249TS-F L279TS-F 40DSFVP EU energy efficiency class Screen size 19.5” / 50 cm 21.5” / 55 cm 24”...

  • Page 24: Information On Environmental Protection

    Vehicles Directive ELV, 2000/53/EC; for Germany: AltfahrzeugV). The TV does not contain any of the substances classified as harmful to the environment according to the Directive. We wish you much pleasure with your Oyster® Smart TV Your ten Haaft team...
  • Page 25 Office hours: Neureutstraße 9 Monday – Friday 8:00 a.m. – 12:00 p.m. 75210 Keltern 12:30 p.m. – 4:30 p.m. Germany Telephone: +49 (0) 7231 / 58588-0 Telefax: +49 (0) 7231 / 58588-119 E-mail: service@ten-haaft.de www.ten-haaft.com Version 04/2021 · Item number: 3.150.0510...

Table of Contents
