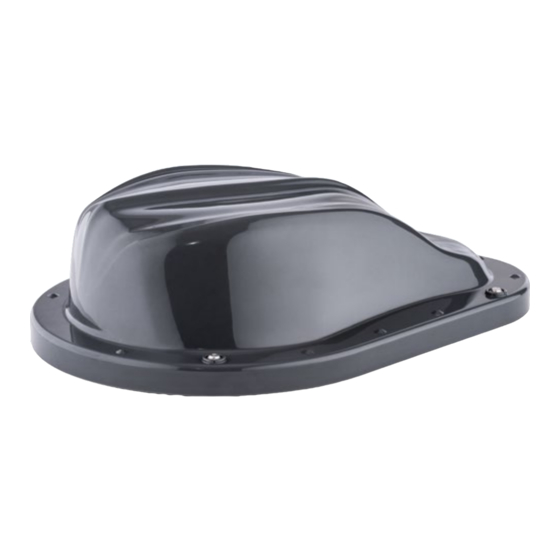

Ten-Haaft Oyster Connect Operating Instructions Manual

Hide thumbs Also See for Oyster Connect:
Table of Contents

Advertisement

Quick Links

Download this manual
CONNECT
EXTENDED OPERATING INSTRUCTIONS
www.ten-haaft.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Oyster Connect and is the answer not in the manual?

Questions and answers

Related Manuals for Ten-Haaft Oyster Connect

Summary of Contents for Ten-Haaft Oyster Connect

  • Page 1 CONNECT EXTENDED OPERATING INSTRUCTIONS www.ten-haaft.com...

  • Page 2: Table Of Contents

    These can be found on our homepage under 3.5 Enter the SIM PIN and the APN settings the following link: www.ten-haaft.com/oysterconnect 3.6 APN settings 3.7 Testing the online connection Here, you can also find the latest version of these extended operating instructions for download.

  • Page 3: Important Information

    1. INTRODUCTION 2. CONTROL ELEMENTS AND DISPLAYS 1.2 IMPORTANT INFORMATION (figure shows operation during LTE mode) The Oyster® Connect makes it easy for you to access the Internet but does require a little interaction.: Internet via mobile LTE connection Without a SIM card inserted, the Oyster® Connect cannot establish an Internet connection via the mobile com- munications network.

  • Page 4: Commissioning Of The Oyster® Connect

    3. COMMISSIONING OF THE OYSTER® CONNECT 3. COMMISSIONING OF THE OYSTER® CONNECT Figure 2: Note: Please switch off the Oyster® Connect first before a SIM card is inserted or replaced. Make sure to properly connect the data cable and push it back into the cable guide groove 3.1 Inserting the SIM card - The term Outdoor Unit stands for the antenna unit mounted on the roof.

  • Page 5: Switching On The Indoor Unit

    3. COMMISSIONING OF THE OYSTER® CONNECT 3. COMMISSIONING OF THE OYSTER® CONNECT 3.2 Switching on the Indoor Unit On the cover of the Indoor Unit, and on the back of the operating instructions (not these extended operating instructions), you will find two silver stickers with the access data for your Indoor Unit. These are individual for The term Indoor Unit stands for the control unit installed inside the vehicle.

  • Page 6: Calling Up The Configuration Web Page Of The Oyster® Connect

    3. COMMISSIONING OF THE OYSTER® CONNECT 3. COMMISSIONING OF THE OYSTER® CONNECT 3.4 Calling up the configuration web page of the Oyster® Connect Your web browser should now display the following web page: The Oyster® Connect is configured and operated via a website that can be accessed from all devices connected to the Oyster®...

  • Page 7: Enter The Sim Pin And The Apn Settings

    3. COMMISSIONING OF THE OYSTER® CONNECT 3. COMMISSIONING OF THE OYSTER® CONNECT 3.5 Enter the SIM PIN and the APN settings Enter the correct 4-digit PIN for this SIM card in the input window and then press Save PIN & Connect the button.

  • Page 8: Apn Settings

    3. COMMISSIONING OF THE OYSTER® CONNECT 3. COMMISSIONING OF THE OYSTER® CONNECT 3.6 APN settings Explanation of the input field: Provider name: What is an APN? The abbreviation “APN” stands for “Access Point Name”. In principle APN designates a server address within the respective mobile network that regulates the complete LTE data traffic.

  • Page 9: Testing The Online Connection

    3. COMMISSIONING OF THE OYSTER® CONNECT 3. COMMISSIONING OF THE OYSTER® CONNECT 3.7 Testing the online connection Further explanations: If the reply is “You are offline”, either the mobile phone provider or the outdoor WLAN will not allow data Explanation: traffic with the Internet.

  • Page 10: Daily Use Of The Oyster® Connect

    4. DAILY USE OF THE OYSTER® CONNECT 4. DAILY USE OF THE OYSTER® CONNECT 4.1 Switching the Oyster® Connect on and off 4.2 Using the Internet via a mobile phone connection (LTE mode) The Oyster® Connect is basically a small computer running its own operating system. If possible, please first If the SIM card PIN (see chapter 3.5) has already been entered once, no further operation on the configuration web page is usually necessary to use the LTE mode.

  • Page 11: Lte Roaming

    4. DAILY USE OF THE OYSTER® CONNECT 4. DAILY USE OF THE OYSTER® CONNECT 4.3 LTE Roaming (Text extract from the official website of the Federal Network Agency, as of 10/2022) Reasonable use of roaming services You have the option of switching the roaming function for the SIM card on[LTE Roaming ON] or off [LTE Roam- As prices differ in the EU countries, safeguard clauses for so-called fair use were agreed.

  • Page 12: Establishing A Connection With An External Outdoor Wlan (Wla Mode)

    4. DAILY USE OF THE OYSTER® CONNECT 4. DAILY USE OF THE OYSTER® CONNECT As soon as you change to another SIM card, the mobile phone provider inevitably changes as well, and thus If the provider has not explicitly informed the customer of a data limit for roaming, the customer also has the entire data volume at his disposal abroad that the contract guarantees him at home.
  • Page 13 4. DAILY USE OF THE OYSTER® CONNECT 4. DAILY USE OF THE OYSTER® CONNECT Set-up a connection with an open WLAN: Select Outdoor Select the desired open WLAN in the Outdoor WLAN list WLAN Wait until the connection has been established You are automatically redirected to the login website of the WLAN provider Enter WLAN If the redirection to the login web page did not work automatically or you need to call up the login web page...

  • Page 14: Optional Settings

    4. DAILY USE OF THE OYSTER® CONNECT 5. OPTIONAL SETTINGS 5.1 Indoor WLAN setup Information: If the Oyster© Connect is in WLAN mode, this is indicated on the website by the green marking of the button WLAN Mode and on the front of the Indoor Unit by a red "LTE / WLAN" LED. Indoor WLAN setup Please select the tab on the configuration web page to display the settings for the...
  • Page 15 5. OPTIONAL SETTINGS 5. OPTIONAL SETTINGS Activate Restart Indoor WLAN with new Settings: (Restart of the Indoor WLAN with new settings:) Activate All changes in the settings of the Indoor WLAN setup only take effect when the button pressed. The Indoor WLAN of the Oyster® Connect is then not available for a few seconds. It is therefore advisable to make all planned changes on the website first and only restart the connections once with the Activate button...

  • Page 16: System Setup

    5. OPTIONAL SETTINGS 5. OPTIONAL SETTINGS Save 5 GHz Settings Save 2.4 GHz Settings 5.2 System setup Changes to the respective WLAN are saved individually for each WLAN with the corresponding button. The current password of the respective WLAN is then automatically copied to the clipboard of the device with which you are currently operating the Oyster®...
  • Page 17 5. OPTIONAL SETTINGS 5. OPTIONAL SETTINGS LTE PIN reset with PUK (if SIM card is locked): Numerous settings can be made on this web page, which are explained in detail here: Software update options: After three incorrect PIN entries, a SIM card is temporarily locked (LED5: fast red flashing). To unblock it, you need the 8-digit PUK, which is usually supplied together with the PIN by the mobile phone provider.
  • Page 18 5. OPTIONAL SETTINGS 5. OPTIONAL SETTINGS System Options System Shutdown (Shut down system) Additional public DNS: [OFF / ON] With this button you can shut down and switch off the Oyster® Connect directly from the website. To switch the (Additional public Dynamic Name Server) Oyster®...

  • Page 19: Service

    6. SERVICE 6. SERVICE Check Update 6.1 Performing a software update (especially recommended after the initial start-up) You can press the button on the “System Setup” page of the Oyster® Connect and will then be shown directly whether an update is available: here: yes! Note: To be able to carry out a software update, you must first have connected the Oyster®...

  • Page 20: Explanation Of Terms

    6. SERVICE 6. SERVICE 6.3 Explanation of terms 6.2 Reset to factory settings (Factory Reset) Description: Stands for "Access Point Name" and is mandatory for data transmission via LTE. Depending on the mobile With the so-called factory reset, all settings are reset to standard: network provider whose SIM card is inserted in the Oyster®...
  • Page 21 6. SERVICE 6. SERVICE WLAN Stands for Long Term Evolution. This term stands for an internationally common mobile radio procedure for Stands for "Wireless Local Area Network". Internationally often called "WIFI". WLAN is used to establish a wire- fast data transmission via the mobile communications network. less network between several devices via radio connection.

  • Page 22: Optional Accessories

    7.1 Alternative power supply connection cable This 3-pin cable set can be used instead of the supplied 2-pin power supply cable with 12v auxiliary plug . Available, for example, from the ET Shop at www.ten-haaft.com. Article 3.450.1020 Cable set power supply...
  • Page 23 Opening hours Neureutstraße 9 Monday – Friday 08:00 a.m. – 12:00 p.m. 75210 Keltern and from 12:30 p.m. – 4:30 p.m. Germany Telephone: +49 (0) 7231 / 58588-0 Telefax: +49 (0) 7231 / 58588-119 Email: service@ten-haaft.de www.ten-haaft.com 12/2022 · 3.150.0059...
