Urban collection

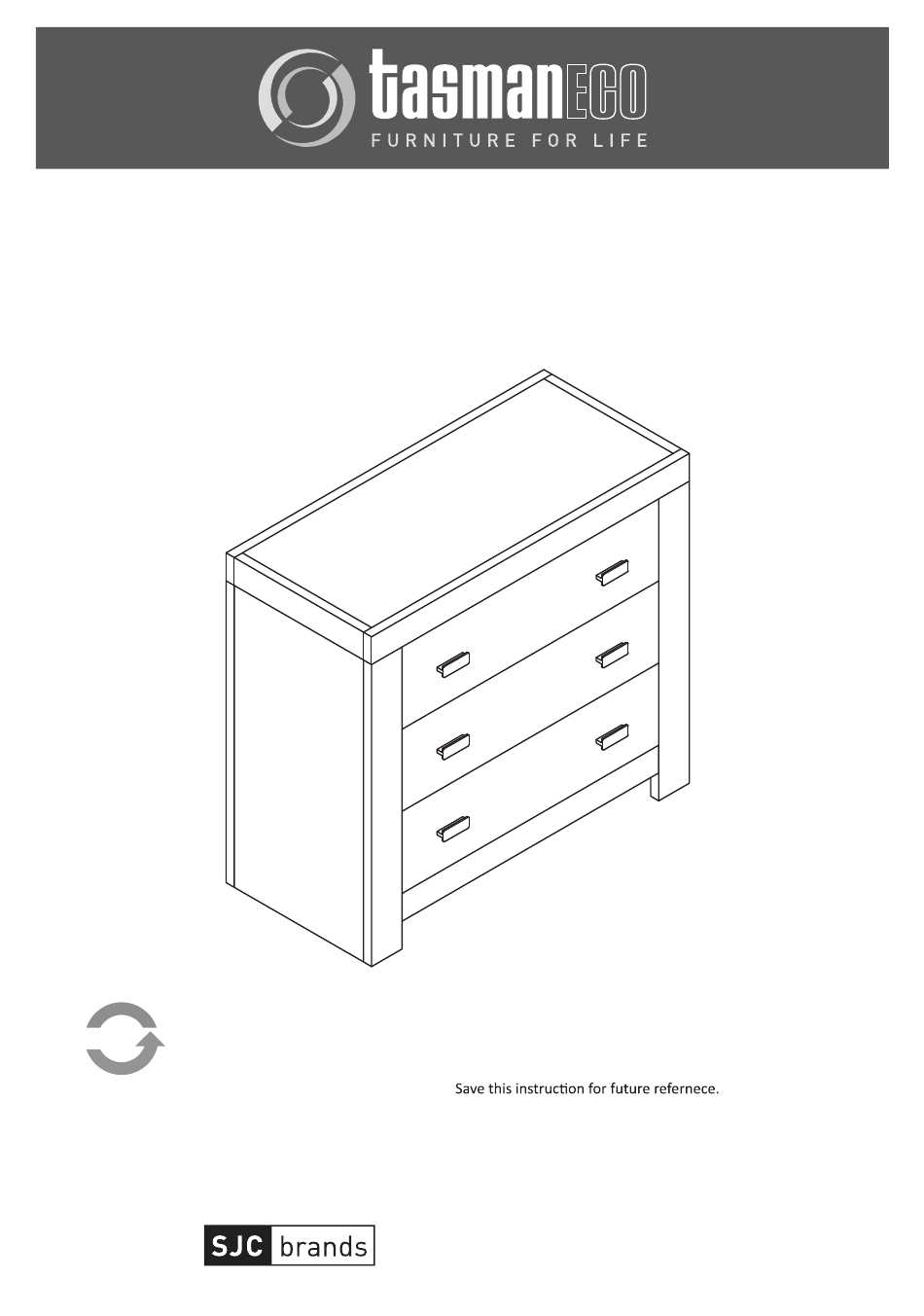

Assembly Instruction
RECYCLED
Packaging and instructions
printed on recycled materials
1
This product has been independently tested and complied with:
AS/NZS 4935:2009 Domestic furniture - Free standing chests of drawers, wardrobes and booksheleves/ Bookcase Determination
of stability & AS/NZS 8124.3:2012 + A1:2016 Migration of certain elements.
Ancona 3 Drawer Chest
Made in China
Assembly of this furniture is best undertaken by two people.
SJC Brands Pty Ltd
abn.
58 106 988 578
4-6 Merryvale Rd, Minto, NSW 2566
t.
02 9603 5000
f. 02 9603 7000
e.
customer.service@sjcbrands.com.au
p.o. box
5878 Minto, DC, NSW 2566
www.tasmaneco.com.au
w.
Advertisement
Related Manuals for TasmanEco Urban Ancona
Summary of Contents for TasmanEco Urban Ancona
- Page 1 & AS/NZS 8124.3:2012 + A1:2016 Migration of certain elements. customer.service@sjcbrands.com.au SJC Brands Pty Ltd abn. 58 106 988 578 4-6 Merryvale Rd, Minto, NSW 2566 p.o. box 5878 Minto, DC, NSW 2566 02 9603 5000 f. 02 9603 7000 www.tasmaneco.com.au Made in China...
-
Page 2: Hardware List
Hardware List M4 x 20mm Screw x 12 Camlock x 36 Locking pin x 36 Handle x 6 M6 x 35mm Bolt x 4 Wall strap x 1 M4 x 25mm Self-tapping screw x 2 Allen key x 1 Warning Small parts can present choking hazard. -
Page 3: Part Checklist
Part Checklist Back middle rail x 1 Side panel x 2 Front bottom rail x 1 Back bottom rail x 1 Top board x 1 Back panel x 2 Drawer side panel (right) x 3 Drawer back panel x 3 Drawer side panel (left) x 3 Drawer front panel x 3 Drawer base panel x 3... - Page 4 Fit locking pins to side panels. Locking pin x 12 Insert back panel sliding into Fit front bottom rail, back middle rail, groves on back middle rail and back bottom rail to one side panel secure back bottom rail. with camlocks. Camlock x 6...
- Page 5 Insert back panel sliding into groves Fit other side panel to rails secure with on two side panels. locking pins and camlocks. Place top board onto chest frame Tighten all bolts and screws by allen secure with M6 x 35mm bolts. key but do not over tighten.
- Page 6 Fit locking pins to Fit side panels to drawer Insert base sliding into groves on drawer side panels. back panel secure with side panels. camlocks. Locking pin x 4 Align the drawer front panel secure with Fit locking pins into front locking pins and camlocks.
- Page 7 you room to screw the wall strap into the wall Wall Wall...
- Page 9 4.The item is transferred, gifted or disposed of by the original owner to another. WARRANTY CLAIM PROCEDURE: For warranty claims, please email us via our claims section on our website www.tasmaneco.com.au or visit the store where the product was purchased.
