Sleigh
Assembly Instructions
Bassinet
RECYCLED
Packaging and instructions
printed on recycled materials
1
Cot
Save these instructions for future reference.
Assembly of this furniture is best undertaken by two people.
Junior Bed
(Optional Parts Available)
SJC Brands Pty Ltd
abn.
58 106 988 578
TM
Unit 4/1 Reaghs Farm Rd, MINTO, NSW 2566
t.
02 9603 5000 f. 02 9603 7000
e.
info@tasmaneco.com.au
TM
Chaise Lounge
p.o. box
5878 MINTO DC, NSW 2566
w.
www.tasmaneco.com.au
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TasmanEco Sleigh
Summary of Contents for TasmanEco Sleigh

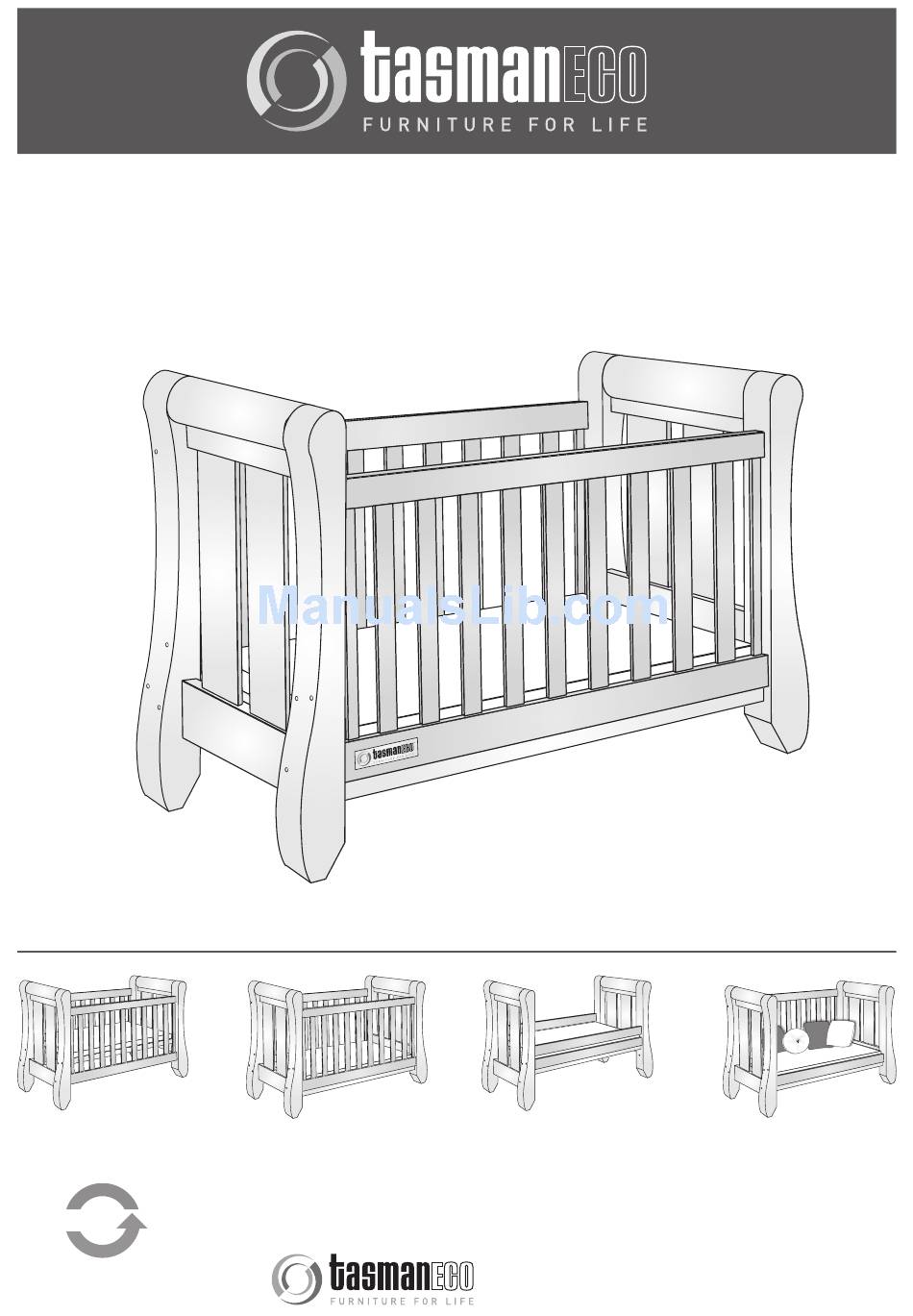

- Page 1 Sleigh Assembly Instructions Bassinet Junior Bed Chaise Lounge (Optional Parts Available) Save these instructions for future reference. RECYCLED Assembly of this furniture is best undertaken by two people. SJC Brands Pty Ltd abn. 58 106 988 578 Packaging and instructions Unit 4/1 Reaghs Farm Rd, MINTO, NSW 2566 p.o.
-
Page 2: Parts List
Parts List Right Bed Head 50mm Guard Screws x 2 Base Connector Bolts x 4 Screwdriver x 1 Front Adjustable Panel Connector Bolts x 4 Allen Key x 1 Left Bed Head Metal Cross Dowels x 4 (Cot/Bassinet) Rear Fixed Panel Double Ended Screws x 4 Glide Pins x 4 Split Washers x 4... - Page 3 Prepare Base • Begin by laying the base frame down on the floor. NOTE: The top of the base is marked “This Side Up” and must be facing DOWNWARDS for this stage of assembly. • Insert the metal cross dowels into the four holes in the base. The screw heads must face upwards.
- Page 4 Connect Bed Heads To Base When building the Cot, use locating holes “Cot” When building the Bassinet, use locating holes “Bassinet” • Connect the base to the left bed head. Ensure the sides of the beds heads with the metal glide pins inserted are facing the correct way for this stage of assembly. Screw the two sections together using 2 bolts, but do not fully tighten.
- Page 5 Connect The Rear (Fixed) Panel Connect the rear (fixed) panel to the bed heads using 2 bolts on either side. Screw the sections together but do not fully tighten at this time. With these sections now assembled, carefully lift up and stand the cot on its legs. Connect The Front Adjustable Panel Insert the front (adjustable) panel between the left and right bed heads.
- Page 6 Fit The Guard Screws The guard screws must be installed to prevent damage to the timber frames IMPORTANT: The guide channels (both sides) must now be secured using the 2 guard screws. The guard screws prevent damage being caused to the side frames by preventing the front adjustable panel from being accidentally removed or dislodged from the bed head frames.
- Page 7 Converting The Cot Into A Chaise Lounge To convert your Tasman Eco cot into a chaise lounge, begin by loosening all bolts around the cot. Loosen both sides Remove the guard screws. Remove the adjustable front panel from the bed head frames. Remove the glide pins and split washers from the bed head frames.
- Page 8 4. The item is transferred, gifted or disposed of by the original owner to another. Registration and Claims To be eligible for the above Guarantees, the original owner must register their details online at www.tasmaneco.com.au immediately upon receipt of the product.
