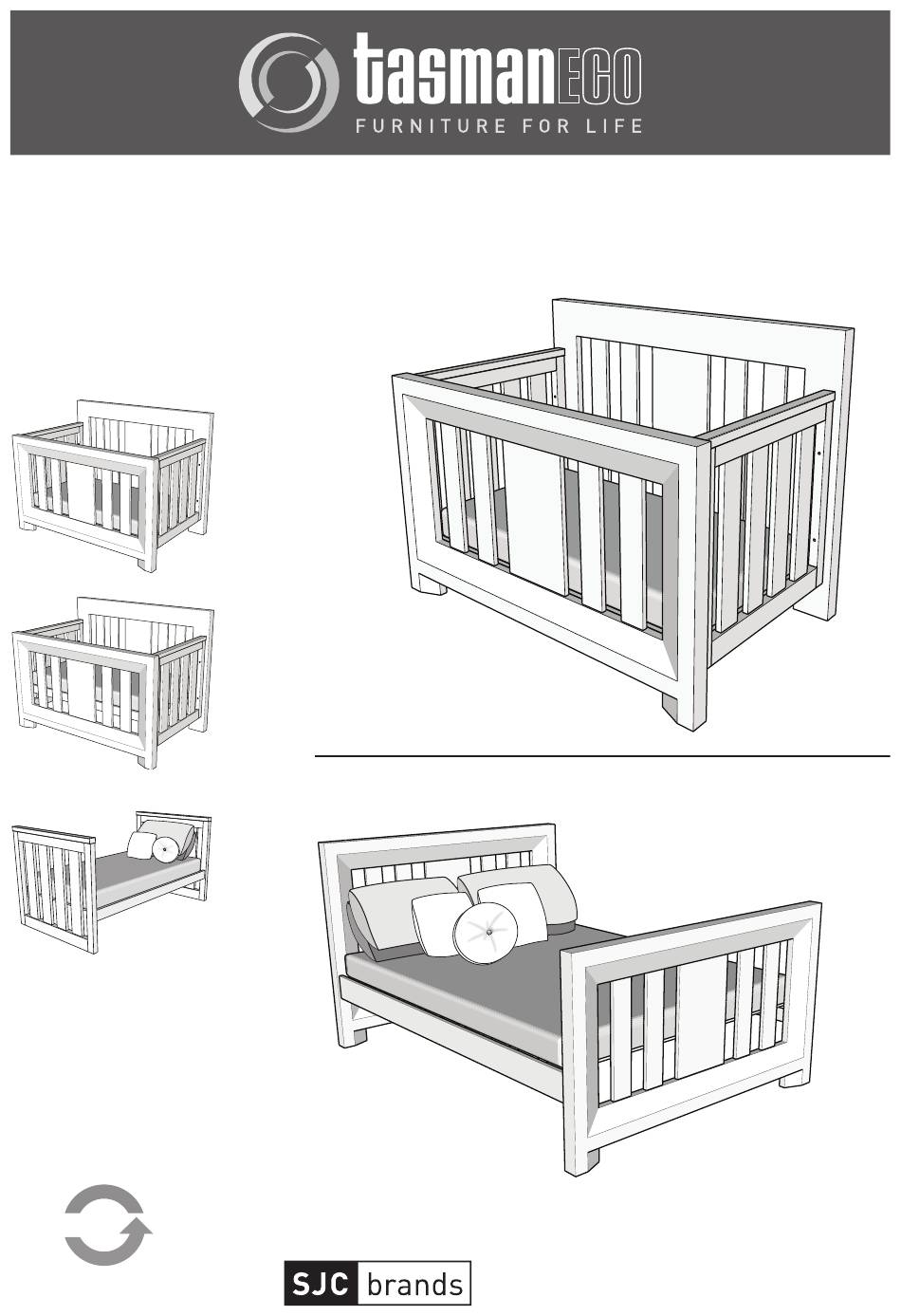

Verona Cot
Assembly and care instructions
This cot can be assembled in a number of configurations.
Instructions for all configurations are included in this manual.
Cot
Bassinet
Junior Bed
RECYCLED
Packaging and instructions
printed on recycled materials
Mattress and accessories not included
Double Bed - Optional Kit
Save these instructions for future reference. Due to the heavy nature
of the cot, it is recommended assembly is undertaken by two people.
TM
Optional double bed rails and
base kit purchased separately
SJC Brands Pty Ltd
abn.
58 106 988 578
4 Merryvale Road, MINTO, NSW 2566
p.o. box
t.
02 9603 5000 f. 02 9603 7000
e.
info@tasmaneco.com.au
5878 MINTO DC, NSW 2566
w.
www.tasmaneco.com.au
Advertisement
Table of Contents
Related Manuals for TasmanEco Verona Cot
Summary of Contents for TasmanEco Verona Cot
- Page 1 Verona Cot Assembly and care instructions This cot can be assembled in a number of configurations. Instructions for all configurations are included in this manual. Bassinet Mattress and accessories not included Double Bed - Optional Kit Junior Bed Optional double bed rails and base kit purchased separately Save these instructions for future reference.
- Page 2 • Regularly check cot for weakness in timber joints and timber panels. If any weaknesses are found, report immediately to Tasman Eco via: www.tasmaneco.com.au • Do not use cot if it has been damaged in any way and always use genuine Tasman Eco parts. Contact your nearest Tasman Eco stockist or original place of purchase for spare parts •...
- Page 3 Major components & hardware Rear bed head x 1 (tall) Side panels x 2 Front bed head x 1 (short) Base x 1 15mm cap screws x 4 55mm connector screws x 4 Metal lunar washers x 4 Allen key / phillips key x 1 each 70mm connector screws x 8 Double bed kit (optional)
- Page 4 Cot / Bassinet - Assembly Assembly overview Before commencing Bassinet assembly, note that Amore cot can be assembled as a full cot, with the base set in the lower position; or as a bassinet with the base set in the high position. Care &...
- Page 5 Step 1 - Attach the side panels to the base Hardware needed 4 x 55mm connector screws 4 x lunar washers 4 x 15mm cap screws A). Attach each side panel to the base. Note the base position needed for either ‘cot’...
- Page 6 Step 2 - Attach the rear (tall) bed head Hardware needed 4 x 70mm connector screws Gently lower the base and side panel assembly onto the bed head panel. Align the connector holes on the side panels with the locating holes on the bed head.
- Page 7 Step 4 - Tighten all connector screws To complete assembly, tighten all 12 connector screws: 4 on the base / side panels. 4 on the rear bed head, and 4 on the front bed head. Tighten the screws firmly but do not overtighten.
- Page 8 Double Bed - Assembly Optional double bed kit purchased separately Step 1 - Attach the bed rails to the bed heads Hardware needed 8 x 30mm connector screws Note orientation of bed head Align the holes on the brackets with the locating holes on the bed head frames.
- Page 9 Step 3 - Attach base frames Unfurl the lattice base frames. Note: Do not cut the fabric webbing that holds the slats together. Fit the lattice base frames between the bed rails. Do not cut the To secure the frames, stretch the fabric webbing first and last slat of the over the corresponding dowel pins.
- Page 10 Junior Bed - Assembly Step 1 - Attach base to bed heads Hardware needed 4 x 55mm connector screws 4 x lunar washers Attach each bed head to the base. To secure the base rails: Insert a lunar washer to the locating hole at each end of the base rails and then insert the connector...
- Page 12 Booking This service is available only in the Sydney metro area. For more information, including pricing, see our website www.tasmaneco. com.au. Or just call 02-9603-5000 during business hours to arrange a time and a day, so one of our assembly professionals can come to your home to assemble your newly purchased Tasman Eco furniture.
