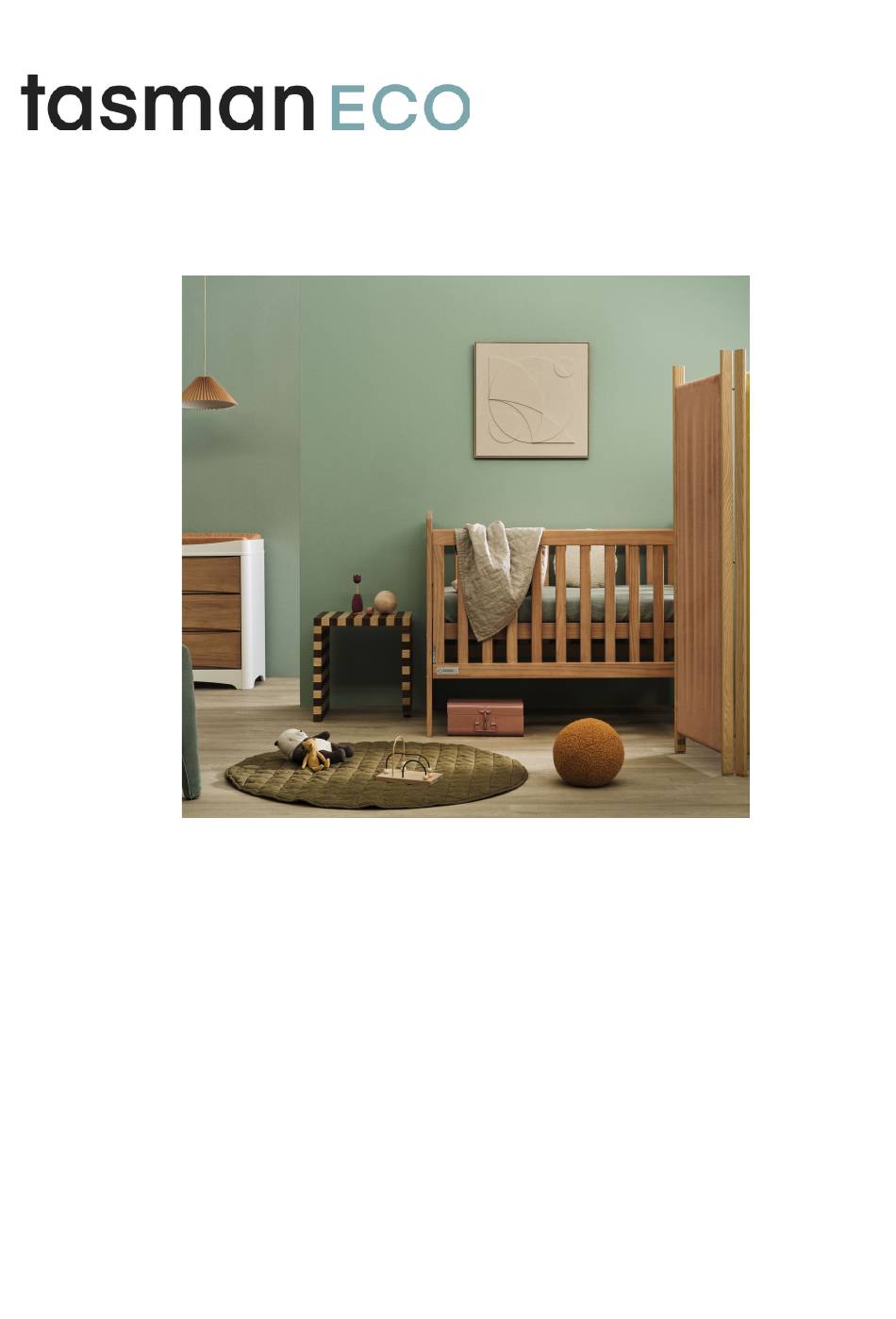

Assembly Instructions:
Elba Cot
IMPORTANT
DO NOT OVER-TIGHTEN SCREWS.
Tighten all screws and connectors by hand,
not power tools.
Read all instructions before assembly and use of product.
Recommended that two people complete this assembly.
Save these instructions for future use.
Tasman Eco Pty Ltd
tasmaneco.com.au
ABN: 58 106 988 578
services@tasmaneco.com.au
Address: 4-6 Merryvale Road, Minto NSW
@tasmaneco
We use recycled materials for our
instructions and packaging.
(02) 9603 5000
(02@ 9603 5000
Advertisement
Related Manuals for TasmanEco Elba Cot
Summary of Contents for TasmanEco Elba Cot
- Page 1 Assembly Instructions: Elba Cot IMPORTANT DO NOT OVER-TIGHTEN SCREWS. Tighten all screws and connectors by hand, not power tools. Read all instructions before assembly and use of product. Recommended that two people complete this assembly. Save these instructions for future use.
- Page 2 Regularly check your connector bolts, ensuring they are tight, and regularly check the cot for any weakness in the panel joints and panels. If weaknesses are found, report immediately, to Tasman Eco (services@tasmaneco.com.au). Do not use the cot if it has been damaged in any way.
-
Page 3: Parts List
Parts List Headboards x 2 Cot Dropside x 1 Cot Fixed Side x 1 Cot Base x 1 Hardware List Metal Cross Dowels x 4 50mm Guard Screws x 2 Connector Bolts x 8 Double Ended Screws x 4 Junior Bed Cap Screws x 4 Glide Pins x 4 Allen Key x 1 Screw Driver x 1... - Page 4 Assembly STEP 1: Begin by laying the cot base down on the floor. The top of the base is marked 'THIS SIDE UP' and needs to be facing DOWNWARDS for this stage of assembly. Insert the metal cross dowels into the four holes in the cot base. The screw heads must be facing outward so you can use a screwdriver to rotate the dowels, to align the horizontal holes.
- Page 5 Assembly (continued...) *When building the cot, use the base holes on the headboards below, labelled 'COT'. When building the cot at bassinet height, use the base holes on the headboards below, labelled 'BASSINET'. STEP 3: Connect the cot base to the left bed head. Ensure the sides of the bed head and the metal glide pins inserted are facing the correct way for this stage of assembly.
- Page 6 Assembly (continued...) STEP 5: Connect the rear fixed panel to the bed heads, using the 2 x bolts on either side. Screw these sections together but do not completely tighten, you will tighten the bolts later. With these sections now assembled, carefully lift the cot up on its legs.
- Page 7 Assembly (continued...) STEP 7: The guard screws must now be installed to prevent damage to the timber frames. IMPORTANT: The guide channels (both sides) must now be secured using the 2 x guard screws. The guard screws prevent damage being caused to the side frames by preventing the front adjustable panel from being accidentally removed of dislodged from the bed head frames.
- Page 8 YOU'VE GOT A CONVERSION COT! You've purchased a Tasman Eco conversion cot, a cot that grows with you and your family, a piece that will be with your little one for their early years. This cot that you're building can convert from bassinet height, to cot height and then to a toddler bed.
- Page 9 From Cot Height to Toddler Bed STEP 1: Loosen the screw marked by the arrow in the image below. STEP 2: Now, remove the screws on the other side rail. STEP 3: Now that your cot side rail is dismantled a little, you can remove this side.
- Page 10 From Cot Height to Toddler Bed (continued...) STEP 5: Tighten the loosened screws and your cot to toddler bed conversion is now complete!
-
Page 11: Product Guarantee
To be eligible for the above guarantee, the original owner must register their details online at www.tasmaneco.com.au immediately upon receipt of the product. The product must be returned to Tasman Eco Pty Ltd or to the place of purchase with proof of purchase,...
