SERVICE EVERY 100 HOURS

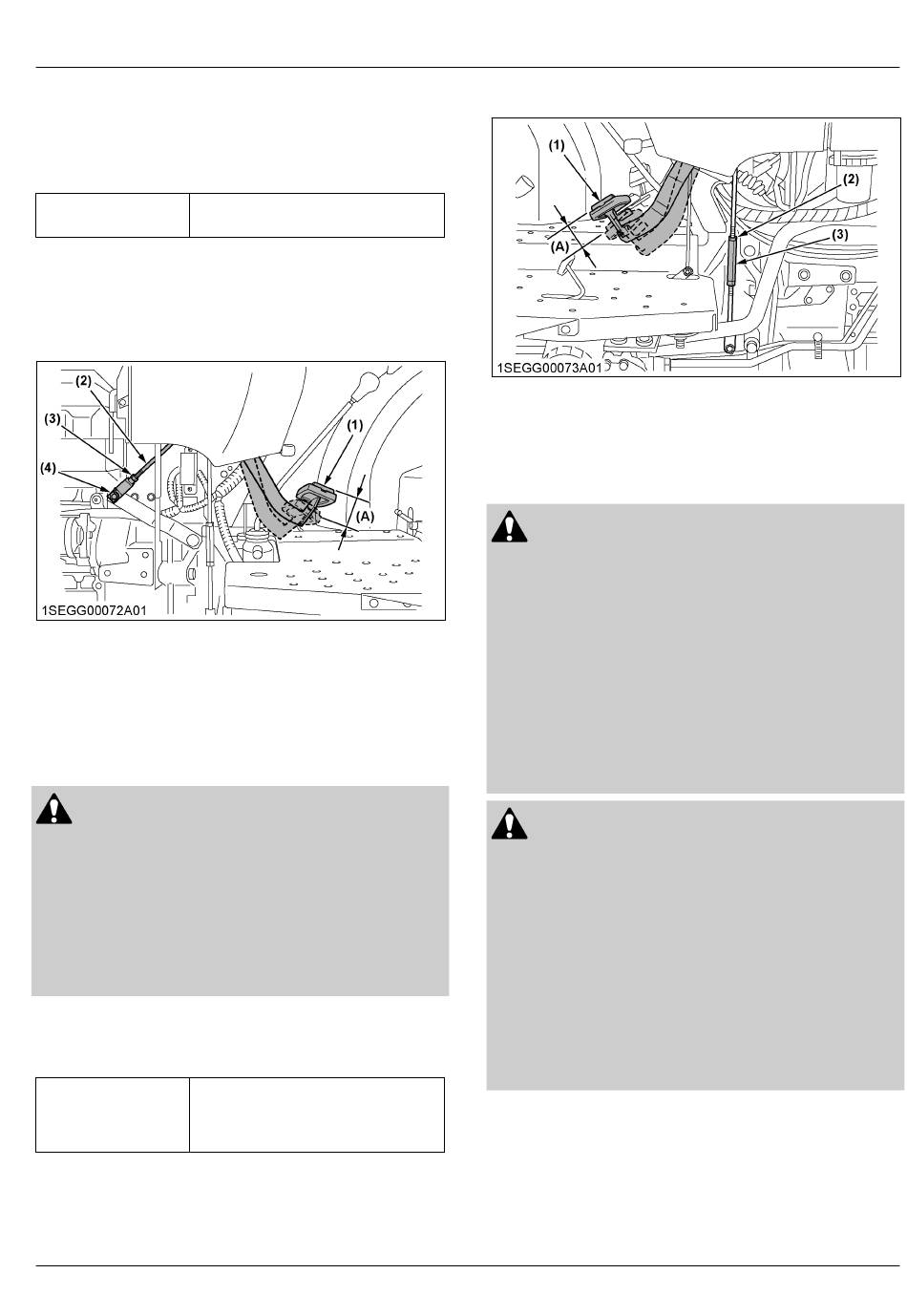

4. Adjusting the clutch pedal

1. Stop the engine and remove the starter key.
2. Slightly depress the clutch pedal and measure the
free travel at the top of stroke of the clutch pedal.
Proper clutch pedal 20 mm to 30 mm (13/16 in. to 1-3/16 in.)
free travel on the clutch pedal
3. If adjustment is needed, follow the following
procedure.
a. Loosen the lock nut.
b. Remove the cotter pin.
c. Adjust the rod length within acceptable limits.
(1) Clutch pedal
(2) Clutch rod
(3) Nut
(4) Cotter pin
4. Retighten the lock nut and split the cotter pin.

5. Adjusting the brake pedal

WARNING
To avoid personal injury or death:
• Park on flat ground, stop the engine, and chock
the wheels before checking the brake pedal.
• To prevent uneven braking, the specification of
the brakes must be within the recommended
limit. If you find the brakes to be beyond the
specification range, contact your local KUBOTA
dealer for adjusting the brakes.
1. Release the parking brake.
2. Slightly depress the brake pedals and measure the
free travel at the top of stroke of the brake pedal.
15 mm to 20 mm (5/8 in. to 13/16 in.) on
Proper brake pedal brake pedal.
free travel Keep the free travel in the right and left
brake pedals equal.
3. If adjustment is needed, loosen the lock nut and
turn the turnbuckle to adjust the rod length within
the acceptable limits.
MX5200
(A) Free travel
4. Retighten the lock nut.
(1) Brake pedal
(2) Lock nut
(3) Turnbuckle

6. Checking the battery condition

DANGER
To avoid the possibility of battery explosion:
For the refillable type battery, follow the following
instructions.
• Do not use or charge the refillable type battery
if the fluid level is below the [LOWER] (lower
limit level) mark. Otherwise, battery-component-
parts may prematurely deteriorate, which may
shorten the service life of battery or cause an
explosion.
• Check the fluid level regularly and add distilled
water as required so that the fluid level is
between the [UPPER] and [LOWER] levels.
WARNING
To avoid personal injury or death:
• Never remove the battery cap while the engine
is running.
• Keep the electrolyte away from eyes, hands,
and clothes. If you are spattered with the
electrolyte, wash it away completely with water
immediately and get medical attention.
• Keep open sparks and flames away from the
battery at all times. Hydrogen gas mixed with
oxygen becomes very explosive.
• Wear an eye protection and rubber gloves when
working around the battery.
Mishandling the battery shortens the service life and
adds to maintenance costs.
The original battery is maintenance free, but needs
some servicing.
If the battery is weak, the engine will be difficult to start
and the lights will be dim. It is important to check the
battery periodically.
