ELECTRICAL OUTLET

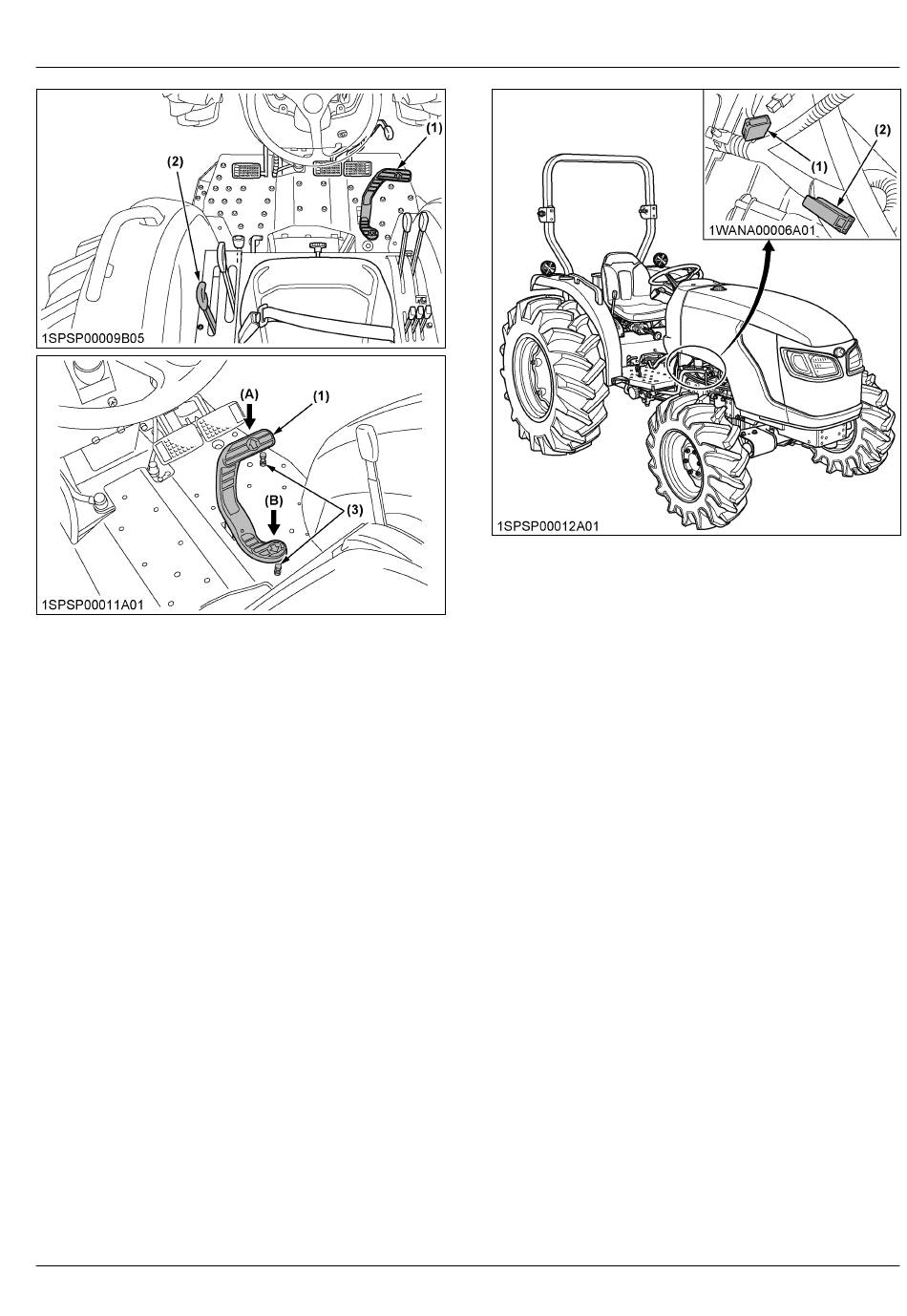

(1) Speed control pedal
(2) Cruise control lever
(3) Stopper bolt
IMPORTANT :
• To prevent serious damage to the HST, do not
adjust the stopper bolts.
NOTE :
• When you stand up from the operator's seat
with the speed-control-pedal stepped on or the
cruise-control-lever engaged on, the engine will
stop regardless of whether the tractor is moving
or not. The engine stop is because that the
tractor is equipped with the operator-presence-
control system (OPC).
ELECTRICAL OUTLET
An electrical outlet is supplied for use with front loader.
MX5200
(A) Forward
(B) Reverse
INSTRUMENT PANEL AND CONTROLS
(1) Electrical outlet (MAX 10 A) (2) Front loader 3rd function sol-
enoid valve (Green)
