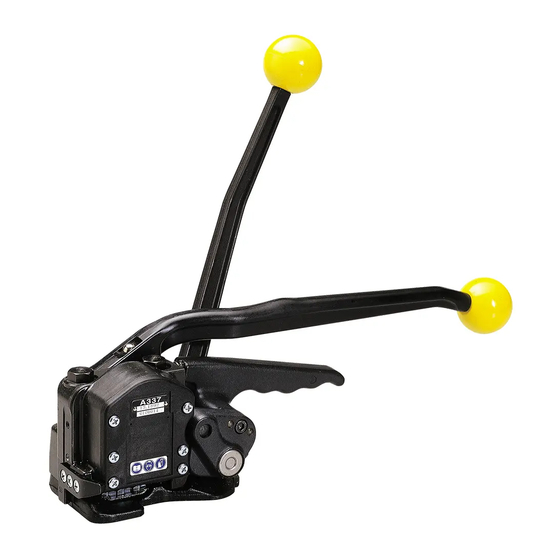

SERVICE MANUAL
MANUAL SEALLESS
STEEL STRAPPING TOOL
MODEL A337.0001.01/A337.0002.01
Manual for authorized dealers and service points
A337.0001.01
A337.0002.01
(TW)
1-1

Advertisement

loading
Need help?

Need help?

Do you have a question about the A337.0001.01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fromm A337.0001.01

Summary of Contents for Fromm A337.0001.01

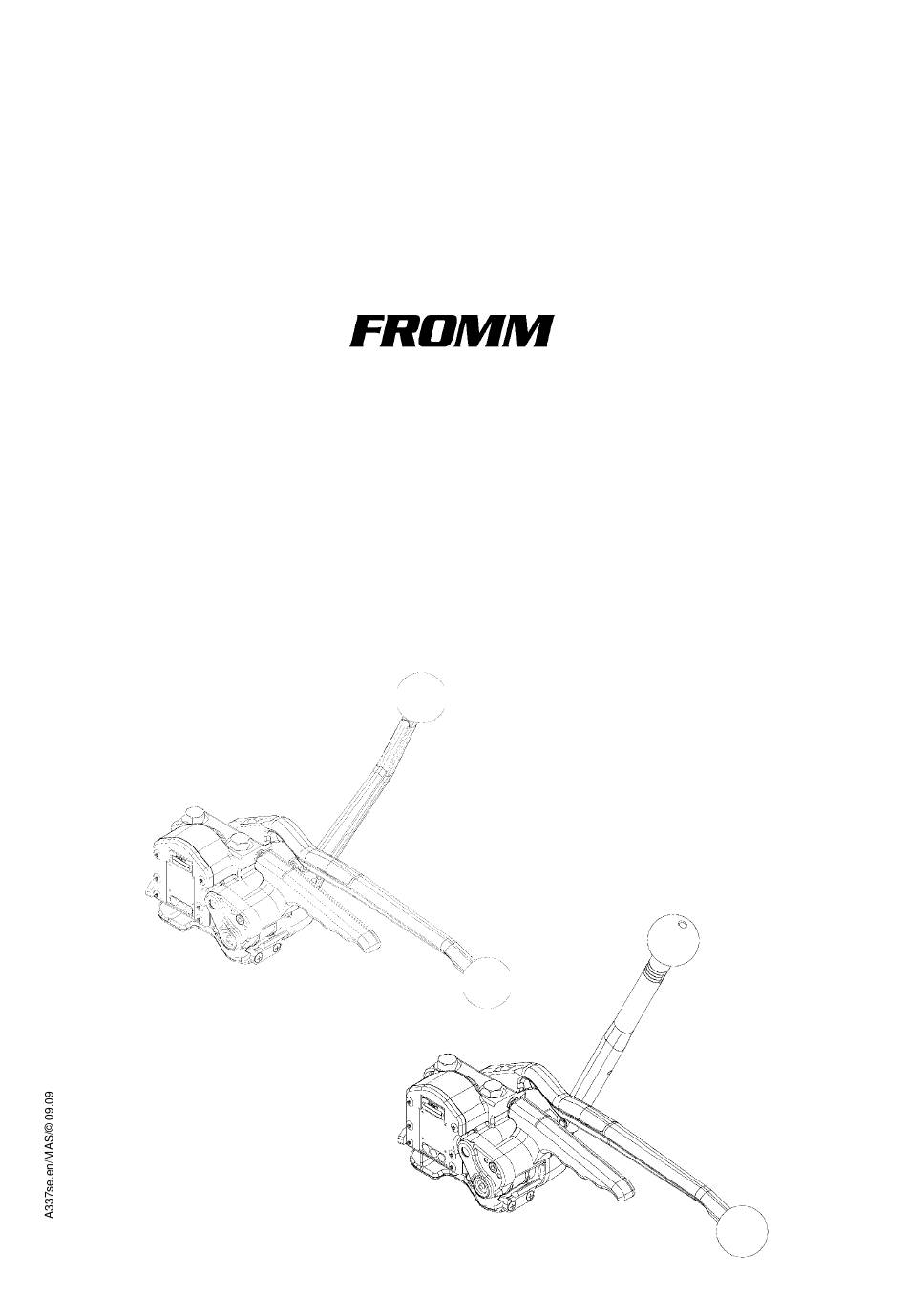

  • Page 1 SERVICE MANUAL MANUAL SEALLESS STEEL STRAPPING TOOL MODEL A337.0001.01/A337.0002.01 Manual for authorized dealers and service points A337.0001.01 A337.0002.01 (TW)

  • Page 2: Chart Of Types

    1.1 CHART OF TYPES 1.1.1 Chart Of Types A337.0001 Item no. Model Strap width Strap thickness Strap quality 13.1850 A337/9.5/0.38-0.50/UNI 9.5mm / 3/8" 0.38-0.50mm / .015-.020" Uniflex 13.1852 A337/9.5/0.38-0.50/ULT 9.5mm / 3/8" 0.38-0.50mm / .015-.020" Ultraflex 13.1860 A337/10/0.38-0.50/UNI 10.0mm 0.38-0.50mm / .015-.020" Uniflex 13.1862 A337/10/0.38-0.50/ULT...

  • Page 3: Conversion Parts: Strap Width

    Enclose the suitable operation manual with the tool after each conversion (see paragraph ordering manuals) 1.2 CONVERSION PARTS When changing strap thickness, strap width or tension handle following parts must be exchanged: 1.2.1 Conversion parts: strap width Part 9.5mm 10mm 12.7mm 13mm 16mm...

  • Page 4: Maintenance And Control

    1.2.3 Changing from type A337.0001 to A337.0002 When converting A337.0001 to A337.0002 only the tension lever must be changed against a torque lever. Part A337.0001 A337.0002 tension lever A33.0118 torque lever A33.0119 1.3 MAINTENANCE AND CONTROL 1.3.1 Procedure Before using check tool for following possible faults: •...
  • Page 5 1.4 LUBRICATION RULE All in the spare parts drawing accordingly marked parts must be greased (with Mobilux EP2 or any equivalent product) during every maintenance. 1.5 ASSEMBLY INFORMATIONS Take notice from the assembling position of the needle free wheeling N3.4507. The direction is embossed on the front of the free wheeling.

  • Page 6: Recommended Spare Parts

    N3.3164 Joint 1.6 RECOMMENDED SPARE PARTS Following spare parts are recommended for stock keeping: Item-No. Description Pieces per tool Possible Strappings* A33.7015 Cutter 30000 A33.7016 Cutter 30000 A33.7112 Tensioning wheel 30000 A33.7113 Tensioning wheel 30000 A33.7114 Tensioning wheel 30000 A33.7115 Tensioning wheel 30000 A33.7123...

  • Page 7: Use Of Accessory Tools

    1.7 ACCESSORY TOOLS Item number Description N7.3225 Counter pressure support for needle case N3.2348 N71.3270 Counter pressure support for needle free wheeling N3.4507 N71.3271 Press in arbor for needle free wheeling N3.4507 N7.3289 Spring clamp for rocker A33.7102 N7.3292 Press in and press out arbor for slide-bearing N3.3160 N7.3293 Press out arbor for slide-bearing N3.3164 N7.3295...
  • Page 8 Part Disassembly Assembly N3.2348/ A33.7103 N7.3215 N7.3297 N3.2348 N3.2348 A33.7103 N3.2348 N7.3225 A33.7103 N3.2606/ A33.7103 N7.3297 N7.3295 N3.2606 A33.7103 A33.7103 N7.3225 N3.2606 N3.3160/ A33.7003 N7.3292 N7.3292 N3.3160 A33.7003 A33.7003 N3.3160 1-10...
  • Page 9 Part Disassembly Assembly N3.3160/ A33.5122 N7.3292 N7.3292 N3.3160 N3.3160 A33.5122 A33.5122 N3.3164/ A33.7002 N7.3293 N7.3293 N3.3164 A33.7002 N3.3164 A33.7002 N3.4507/ A33.7101 N71.3271 N71.3271 A33.7101 N3.4507 A33.7101 N3.4507 N71.3270 N71.3270 1-11...
  • Page 10 N1.1571 N2.4906 A33.7022 N1.1807 N1.1571 A33.7024/25/26/27/28/29/30* N1.2135 A337.0001.01 A33.7023 N3.3164 A33.0114 A33.0120 A33.7018 A33.0105 A33.7001 A33.5121 A33.7033 A33.5122 A33.5117 N4.1116 A33.7017 N3.3160 N3.3160 N2.2138 N1.3513 N3.2904 A33.7003 A33.0115 A33.0116 A33.0118 N2.2109 A33.5106/7/8 N3.3160 N2.5215 A38.3139* A33.5118 A33.7019 A33.7015/6* A38.3129 N4.1116 N4.9152...
  • Page 11 A33.0119 N1.1571 N2.4906 N1.1807 A33.7022 N1.1571 A33.7024/25/26/27/28/29/30* A337.0002.01 N1.2135 A33.3175 A33.7023 N3.3164 A33.3174 A33.0114 A33.0120 N2.1607 A33.7018 A33.3173 A33.7001 A33.0105 A33.5121 N2.5213 A33.7033 A33.5122 A33.5117 N4.1116 A33.7107 A33.7017 N3.3160 N3.3160 N3.2904 N2.2138 A33.0115 A33.7003 N1.3513 A33.5106/7/8 * N2.2109 N2.5215 A33.7106 1 N2.1611 N3.3160 A38.3139...
  • Page 12 SPARE PARTS LIST A337 3.1 Type independent spare parts A337.0001.01 Item-No. in group Pcs. Description Dimension Field [A33.0105] 1 BEARING PICK-UP ATTACHMENT [A33.0114] 1 SEALING HOUSING [A33.0115] 1 DIE AND CUTTER SUPPORT [A33.0116] 1 ROCKER [A33.0117] 1 END COVER [A33.0118] 1 TENSION HANDLE [A33.0120]...

  • Page 13: Number Plate

    Item-No. in group Pcs. Description Dimension Field N2.4906 A33.0120 1 HAMMER HEAD BOLT 5,31 X 12,7 N2.5154 2 PRESSURE SPRING 0.45 X 3.9 X 7 N2.5215 1 PRESSURE SPRING 2,25X11,75X125 N3.2348 A33.0117 1 NEEDLE CASE N3.2606 A33.0117 1 PACKING RING N3.2904 1 PIN 4 X 8...
  • Page 14 3.2 Type dependent spare parts A337.0001.01 Type 13.1850.01 13.1850.01 A337/9.5/0.38-0.50/UNI A337.0001.01 07.09.09 Item-No. in group Pcs. Description Dimension Field A33.7004 BASE PLATE A33.7008 HOLDER A33.7015 CUTTER A33.7024 STRAP STOP A33.7031 EJECTOR A33.7111 SPACER RING A33.7112 TENSIONING WHEEL A33.7116 STRAP GUIDE A38.3139...
  • Page 15 Type 13.1862.01 13.1862.01 A337/10/0.38-0.50/ULT A337.0001.01 07.09.09 Item-No. in group Pcs. Description Dimension Field A33.7004 BASE PLATE A33.7009 HOLDER A33.7015 CUTTER A33.7025 STRAP STOP A33.7031 EJECTOR A33.7111 SPACER RING A33.7117 STRAP GUIDE A33.7123 TENSIONING WHEEL A38.3139 PUNCH A38.3140 DIE HALF A38.3141 DIE HALF N1.1303...
  • Page 16 Type 13.1874.01 13.1874.01 A337/12.7/0.38-0.50/ULT A337.0001.01 07.09.09 Item-No. in group Pcs. Description Dimension Field A33.5106 PUNCH A33.5111 DIE HALF A33.5112 DIE HALF A33.7005 BASE PLATE A33.7010 HOLDER A33.7015 CUTTER A33.7026 STRAP STOP A33.7032 EJECTOR A33.7111 SPACER RING A33.7118 STRAP GUIDE A33.7124 TENSIONING WHEEL N1.1304...
  • Page 17 Type 13.1882.01 13.1882.01 A337/13/0.51-0.63/UNI A337.0001.01 07.09.09 Item-No. in group Pcs. Description Dimension Field A33.5106 PUNCH A33.5111 DIE HALF A33.5112 DIE HALF A33.5224 SPACER RING A33.7005 BASE PLATE A33.7011 HOLDER A33.7016 CUTTER A33.7027 STRAP STOP A33.7032 EJECTOR A33.7113 TENSIONING WHEEL A33.7119 STRAP GUIDE N1.1304...
  • Page 18 Type 13.1890.01 13.1890.01 A337/16/0.38-0.50/UNI A337.0001.01 07.09.09 Item-No. in group Pcs. Description Dimension Field A33.5107 PUNCH A33.5113 DIE HALF A33.5114 DIE HALF A33.7006 BASE PLATE A33.7012 HOLDER A33.7015 CUTTER A33.7028 STRAP STOP A33.7032 EJECTOR A33.7111 SPACER RING A33.7114 TENSIONING WHEEL A33.7120 STRAP GUIDE N1.1304...
  • Page 19 Type 13.1896.01 13.1896.01 A337/16/0.51-0.63/ULT A337.0001.01 07.09.09 Item-No. in group Pcs. Description Dimension Field A33.5107 PUNCH A33.5113 DIE HALF A33.5114 DIE HALF A33.5224 SPACER RING A33.7006 BASE PLATE A33.7012 HOLDER A33.7016 CUTTER A33.7028 STRAP STOP A33.7032 EJECTOR A33.7120 STRAP GUIDE A33.7125 TENSIONING WHEEL N1.1304...
  • Page 20 Type 13.1914.01 13.1914.01 A337/19/0.38-0.50/ULT A337.0001.01 07.09.09 Item-No. in group Pcs. Description Dimension Field A33.5108 PUNCH A33.5115 DIE HALF A33.5116 DIE HALF A33.7007 BASE PLATE A33.7013 HOLDER A33.7015 CUTTER A33.7029 STRAP STOP A33.7032 EJECTOR A33.7111 SPACER RING A33.7121 STRAP GUIDE A33.7126 TENSIONING WHEEL N1.1304...
  • Page 21 Type 13.1922.01 13.1922.01 A337/20/0.51-0.63/UNI A337.0001.01 07.09.09 Item-No. in group Pcs. Description Dimension Field A33.5108 PUNCH A33.5115 DIE HALF A33.5116 DIE HALF A33.5224 SPACER RING A33.7007 BASE PLATE A33.7014 HOLDER A33.7016 CUTTER A33.7030 STRAP STOP A33.7032 EJECTOR A33.7115 TENSIONING WHEEL A33.7122 STRAP GUIDE N1.1304...
  • Page 22 SPARE PARTS LIST A337 TW 4.1 Type independent spare parts A337.0002.01 Item-No. in group Pcs. Description Dimension Field [A33.0105] BEARING PICK-UP ATTACHMENT [A33.0114] SEALING HOUSING [A33.0115] DIE AND CUTTER SUPPORT [A33.0116] ROCKER [A33.0117] END COVER [A33.0119] TORQUE LEVER [A33.0120] SEALING HANDLE A33.3110 TENSIONING PAWL A33.3124...
  • Page 23 Item-No. in group Pcs. Description Dimension Field N1.6326 SUPPORTING DISK 30 X 42 X 2.5 N1.6503 SAFETY WASHER N2.1122 SECURITY RING N2.1607 A33.0119 SPRING RING 20 MM N2.1611 A33.0119 SPRING RING 7 MM N2.2109 PARALLEL PIN 8 m6 X 30 N2.2110 A33.0115 PARALLEL PIN...
  • Page 24 4.2 Type dependent spare parts A337.0002.01 Type 13.1851.01 13.1851.01 A337/9.5/0.38-0.50/TW/UNI A337.0002.01 07.09.09 Item-No. in group Pcs. Description Dimension Field A33.7004 BASE PLATE A33.7008 HOLDER A33.7015 CUTTER A33.7024 STRAP STOP A33.7031 EJECTOR A33.7111 SPACER RING A33.7112 TENSIONING WHEEL A33.7116 STRAP GUIDE A38.3139 PUNCH A38.3140...
  • Page 25 Type13.1863.01 13.1863.01 A337/10/0.38.0.50/TW/ULT A337.0002.01 07.09.09 Item-No. in group Pcs. Description Dimension Field A33.7004 BASE PLATE A33.7009 HOLDER A33.7015 CUTTER A33.7025 STRAP STOP A33.7031 EJECTOR A33.7111 SPACER RING A33.7117 STRAP GUIDE A33.7123 TENSIONING WHEEL A38.3139 PUNCH A38.3140 DIE HALF A38.3141 DIE HALF N1.1303 SCREW M2 X 8...
  • Page 26 Type13.1875.01 13.1875.01 A337/12.7/0.38-0.50/TW/ULT A337.0002.01 07.09.09 Item-No. in group Pcs. Description Dimension Field A33.5106 PUNCH A33.5111 DIE HALF A33.5112 DIE HALF A33.7005 BASE PLATE A33.7010 HOLDER A33.7015 CUTTER A33.7026 STRAP STOP A33.7032 EJECTOR A33.7111 SPACER RING A33.7118 STRAP GUIDE A33.7124 TENSIONING WHEEL N1.1304 SCREW M3 X 8...
  • Page 27 Type13.1883.01 13.1883.01 A337/13/0.51-0.63/TW/UNI A337.0002.01 07.09.09 Item-No. in group Pcs. Description Dimension Field A33.5106 PUNCH A33.5111 DIE HALF A33.5112 DIE HALF A33.5224 SPACER RING A33.7005 BASE PLATE A33.7011 HOLDER A33.7016 CUTTER A33.7027 STRAP STOP A33.7032 EJECTOR A33.7113 TENSIONING WHEEL A33.7119 STRAP GUIDE N1.1304 SCREW M3 X 8...
  • Page 28 Type13.1891.01 13.1891.01 A337/16/0.38-0.50/TW/UNI A337.0002.01 07.09.09 Item-No. in group Pcs. Description Dimension Field A33.5107 PUNCH A33.5113 DIE HALF A33.5114 DIE HALF A33.7006 BASE PLATE A33.7012 HOLDER A33.7015 CUTTER A33.7028 STRAP STOP A33.7032 EJECTOR A33.7111 SPACER RING A33.7114 TENSIONING WHEEL A33.7120 STRAP GUIDE N1.1304 SCREW M3 X 8...
  • Page 29 Type13.1897.01 13.1897.01 A337/16/0.51-0.63/TW/ULT A337.0002.01 07.09.09 Item-No. in group Pcs. Description Dimension Field A33.5107 PUNCH A33.5113 DIE HALF A33.5114 DIE HALF A33.5224 SPACER RING A33.7006 BASE PLATE A33.7012 HOLDER A33.7016 CUTTER A33.7028 STRAP STOP A33.7032 EJECTOR A33.7120 STRAP GUIDE A33.7125 TENSIONING WHEEL N1.1304 SCREW M3 X 8...
  • Page 30 Type13.1915.01 13.1915.01 A337/19/0.38-0.50/TW/ULT A337.0002.01 07.09.09 Item-No. in group Pcs. Description Dimension Field A33.5108 PUNCH A33.5115 DIE HALF A33.5116 DIE HALF A33.7007 BASE PLATE A33.7013 HOLDER A33.7015 CUTTER A33.7029 STRAP STOP A33.7032 EJECTOR A33.7111 SPACER RING A33.7121 STRAP GUIDE A33.7126 TENSIONING WHEEL N1.1304 SCREW M3 X 8...
  • Page 31 Type13.1923.01 13.1923.01 A337/20/0.51-0.63/TW/UNI A337.0002.01 07.09.09 Item-No. in group Pcs. Description Dimension Field A33.5108 PUNCH A33.5115 DIE HALF A33.5116 DIE HALF A33.5224 SPACER RING A33.7007 BASE PLATE A33.7014 HOLDER A33.7016 CUTTER A33.7030 STRAP STOP A33.7032 EJECTOR A33.7115 TENSIONING WHEEL A33.7122 STRAP GUIDE N1.1304 SCREW M3 X 8...
