Summary of Contents for Fromm A431

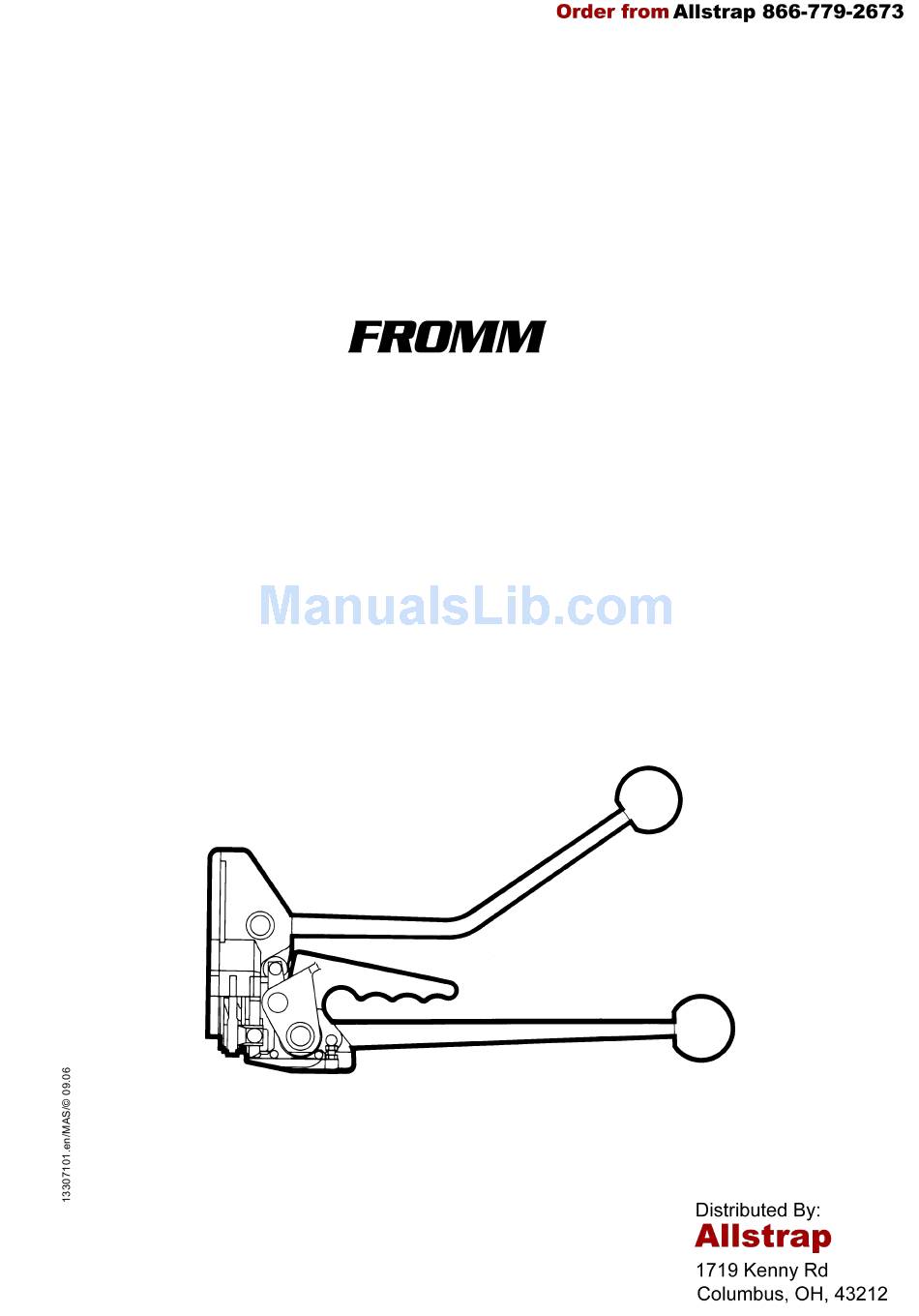

- Page 1 OPERATION MANUAL / SPARE PARTS LIST MANUAL COMBINATION PUSHER TYPE TOOL MODEL A431 13.3071.01...
-
Page 2: Table Of Contents
INDEX PAGE SAFETY INSTRUCTIONS WARRANTY CONDITIONS AND LIABILITY APPROPRIATE USE TECNICAL DATA CHART OF TYPES A431 SPARE PARTS LIST 13.3071.01 OPERATION JOINT CONTROL SAFETY INSTRUCTIONS Read these instructions carefully. Failure to follow these instructions can result in severe personal injury. - Page 3 Joints You are fully responsible to review the joints made by your tool. Become familiar with the seal control and seal adjustment described in this operation manual. Misformed joints may not secure the load and could cause serious injury. Never handle or ship any load with improperly formed joints.
-
Page 4: Warranty Conditions And Liability
WARRANTY CONDITIONS AND LIABILITY FROMM Holding AG warrants all its strapping tools and machine heads during a period of 90 days from the date of sale. The warranty includes all deficiencies clearly resulting from poor manufacturing or faulty materials. Damage claims as a result of production shutdowns and claims for damage to persons and to property resulting from warranty deficiencies cannot be asserted by the customer. -
Page 5: Tecnical Data
Thickness: 0.38 - 0.63 mm / 0.015 - 0.025" Quality: Fundamentally the A431 allows the use of all current steel straps with tensile strengths ranging from 850 to 1100N/mm / 123 000 - 160 000 psi. Straps with a low breaking elongation are unsuitable. - Page 6 ➁ A43.1104 A43.1110 ➁ A43.1102 A43.0102 N41.9128 A43.1108 A48.1117 ➁ A48.1114 ➁ A48.1113 N1.6207 N4.9134 N1.1208 N2.4902 ➁ A48.1111 ➁ A48.1110 N1.3106 ➁ A48.1116 N1.2105 N1.1106 ➁ A48.1111 N1.6402 A48.1125 A48.1131 A48.1115 A48.1131 A43.1201 N7.1102 ➁ ➁ A48.1102 N2.5200 A48.1109 A48.1106 ➁...
- Page 7 A43.1105 ➁ A43.1104 ➀ N1.2124 N1.1170 A48.1132 N1.5302 N3.2316 ➁ A43.1101 N3.2315 A43.1106 N2.1119 N2.1119 N1.6307 N3.2403 N2.3201 A48.1106 N4.1112 A43.1107 N2.3201 N2.5154 ➁ A43.1209 A43.1207 A43.1204 N2.1122 A43.1208 ➁ A43.1205 ➁ A43.1206 ➀ Loctite 222 ➁ Mobilux EP2 ➂ Loctite 243...
-
Page 8: Spare Parts List 13.3071.01
SPARE PARTS LIST 13.3071.01 13.3071.01 A431/13/0.38-0.63/ULT A431.0001.01 25.02.00 Item-No. in group Pcs. Description Dimension Field [A43.0102] 1 JAW ASSEMBLY 13 MM A43.1101 1 GEAR WHEEL A43.1102 A43.0102 1 PISTON ROD A43.1104 2 SUPPORTING PLATE A43.1105 1 COVER PLATE A43.1106 1 SEALING SHAFT A43.1107... - Page 9 13.3071.01 A431/13/0.38-0.63/ULT A431.0001.01 25.02.00 Item-No. in group Pcs. Description Dimension Field N1.5302 A43.0102 3 RETAINING NUT N1.6207 A43.0102 2 SPRING LOCK WASHER N1.6307 2 SPACER WASHER 15 X 21 X 1.5 N1.6402 1 TOOTH WASHER N2.1119 3 SECURITY RING N2.1122 1 SECURITY RING N2.2102...
-
Page 10: Operation
OPERATION When handling strap, always wear protective gloves and safety glasses with side shields which conform to ANSI Standard Z87.1. Feeding the strapping The strap is fed through the seal, around the package to be strapped and again through the seal. The strap end is then bent. -
Page 11: Joint Control
Sealing the strapping With the right hand on the tension handle (in back position as illustrated) push the sealing handle forward to the stop with the left hand. Move sealing handle backward into the initial position after completion of the sealing action. Releasing the tool After completion of the sealing action the tool can be released easily from the seal. - Page 12 A431en.teil2.fm...
