Fromm P320 Operation Manual & Spare Parts List

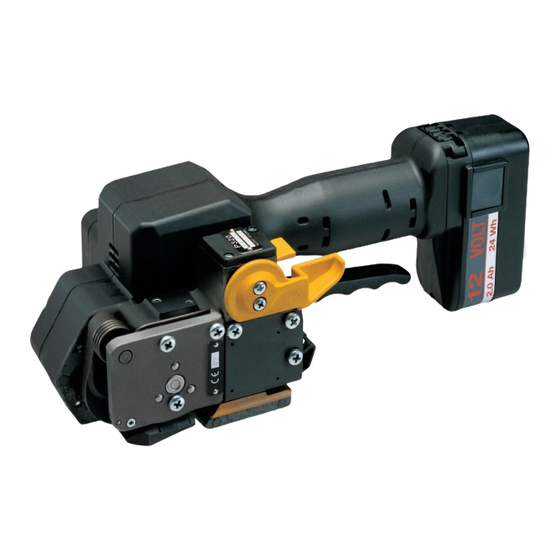

Battery - powered plastic strapping tool
Hide thumbs
Table of Contents

Advertisement

Quick Links

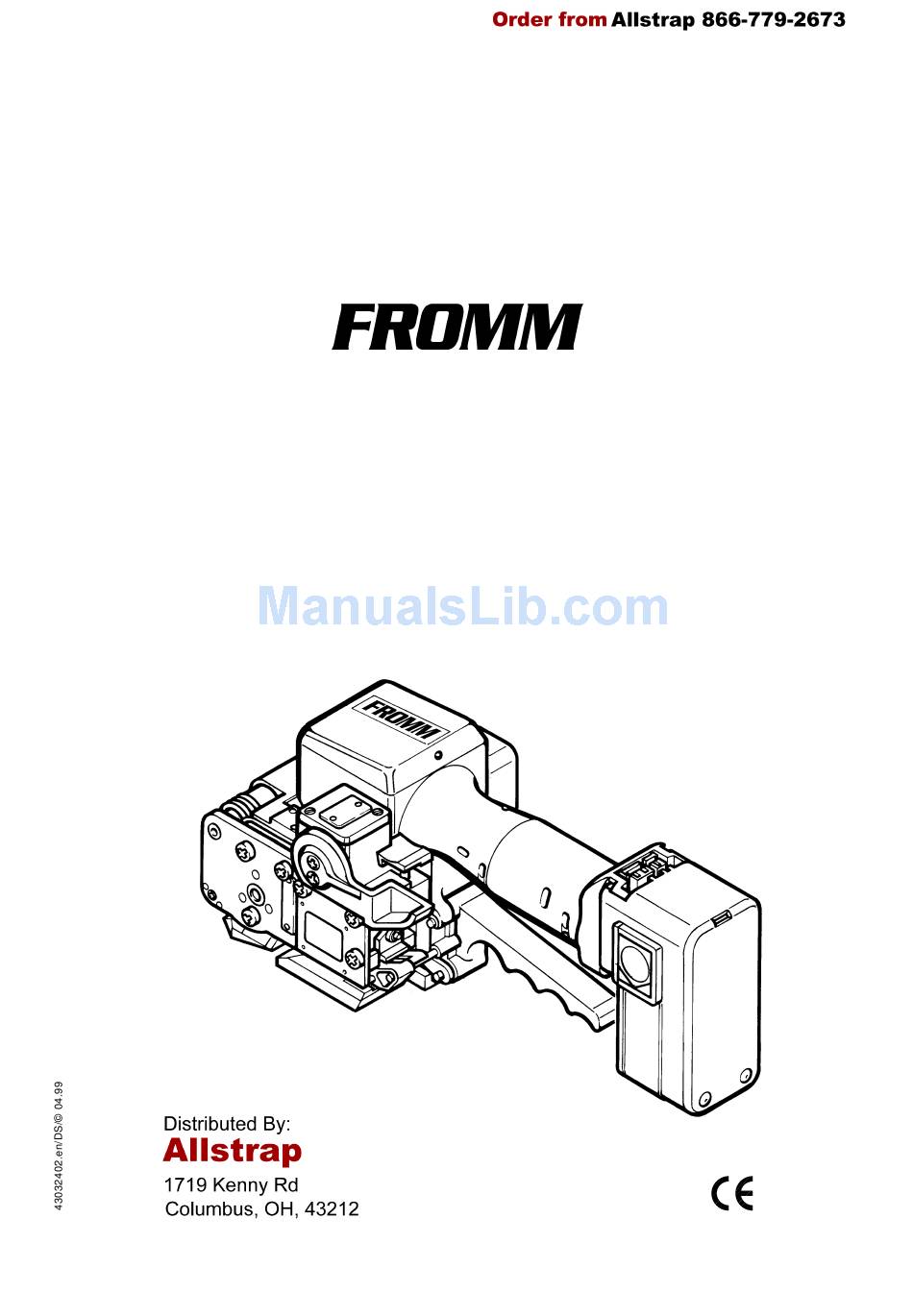

OPERATION MANUAL / SPARE PARTS LIST
BATTERY - POWERED
PLASTIC STRAPPING TOOL
MODEL P320
43.0324.02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P320 and is the answer not in the manual?

Questions and answers

Related Manuals for Fromm P320

Summary of Contents for Fromm P320

  • Page 1 OPERATION MANUAL / SPARE PARTS LIST BATTERY - POWERED PLASTIC STRAPPING TOOL MODEL P320 43.0324.02...

  • Page 2: Table Of Contents

    INDEX PAGE SAFETY INSTRUCTIONS TECHNICAL DATA ACCESSORIES Battery ............5 Battery - chargers .

  • Page 3: Safety Instructions

    • Do not dispose of used batteries in the household refuse, Strap breakage hazard water or by burning them. FROMM distributors offer an environment friendly battery Improper operation of the tool, excessive tensioning, using strap disposal service. not recommended for this tool or sharp corners on the load can...

  • Page 4: Technical Data

    Description of the tool The tool model P320 has been designed to strap packages with plastic strapping. The plastic strapping is fed around the package manually or in combination with a strap feeder. The straps are inserted in the tool, automatically tensioned, sealed by friction welding and separated.

  • Page 5: Accessories

    Use only parts and accessories mentioned in the operating instruction. Using other parts or accessories can cause injuries to you and other persons. Battery One battery is included in the P320 delivery. Battery for replacement or exchange can be N5.4303 ordered under item number N5.4303.

  • Page 6: Operating Elements

    OPERATING ELEMENTS Charge the battery. Yellow Cooling time is running, the Switch rocker lever must be held in welding position. Green Cooling time elapsed, turn the lever in start position. Handle lever Lever Unlatching push button OPERATION Installation Do not expose the tool to rain! For safety reasons the battery is delivered uncharged.

  • Page 7: Adjustments

    Adjustments 5.2.1 Preselecting of the strap tension Do not adjust the tensioning force too high. If the tensioning force is higher than the tensioning strength of the strap, the strap will tear while the tensioning. The tensioning force can be steadily adjusted (400 - 2000N / 90 - 450 lbs) by means of the right Adjusting knob tensioning force adjusting knob.

  • Page 8: Feeding The Strap Around The Package

    Feeding the strap around the package The strapping is fed around the package as illustrated. Warning! The plastic strap which will be welded must be free from oil, grease and other dirt. Dirty plastic straps can't be welded correct! Inserting the strap Pull up the handle lever firmly with your right hand.

  • Page 9: Sealing The Straps

    Sealing the straps While welding the plastic straps, the lever must be pressed forward against the stop until the LED lights green. Disregarding this regulation will cause insufficient seal efficiency of the strapping and can cause severest injuries. With your left hand, press the lever forward to the stop and keep the lever pressed.
  • Page 10 P32.0108 P32.1215 N2.1118 N1.7207 P32.1121 N6.6271 N5.1129 ➃ P32.1123 N1.7207 N1.1934 P32.1125 P32.1124 P32.1122 N5.2702 N1.1934 P32.0115 ➂ P32.1031 P32.1039 N1.6504 P32.0104 N2.4902 P32.1041 N2.2443 N2.2464 N41.9114 N1.1328 P32.0103 ➂ ➁ 14 x N2.5621 N1.6505 N1.2112 P32.1018 N2.1107 N1.1328 N1.6312 N1.6505 ➃...
  • Page 11 P32.0106 P32.0114 N5.4303 (N5.4304) (N41.9144) P32.1118 P32.0107 P32.1114 N4.9108 P32.1122 P32.1111 P32.1107 P32.1101 N1.7208 N1.7208 P32.1108 N1.6504 P32.1121 N5.1129 P32.1120 (P32.1106) N3.1158 ➃ N6.6271 ➃ N1.6331 P32.1119 ➀ P32.1126 N3.1159 ➃ P32.1037 ➃ N1.6331 P32.1212 P32.1103 N2.2190 N1.6309 (N5.2322) P32.1021 (N3.3174) (N1.7206) N2.5236...

  • Page 12: Spare Parts List 43.0324.02

    SPARE PARTS LIST 43.0324.02 43.0324.02 P320/12.7/0.65-1.05 P320.0001.02 01/10/98 Item-No. Pcs. Description Dimension Field N1.1305 2 SCREW M4 X 8 N1.1328 ->[P32.0114] 2 SCREW M3 X 10 N1.1553 ->[P32.1250] 1 HEXAGON SCREW M4 X 8 N1.1904 5 FLAT HEAD SCREW M5 X 20 N1.1909...
  • Page 13 43.0324.02 P320/12.7/0.65-1.05 P320.0001.02 01/10/98 Item-No. Pcs. Description Dimension Field N2.5823 1 TORSION SPRING 2,8/59 N3.1134 ->[P32.0114] 1 BALL BEARING N3.1134 ->[P32.1021] 1 BALL BEARING N3.1157 ->[P32.0103] 1 BALL BEARING N3.1158 ->[P32.0107] 1 BALL BEARING N3.1159 ->[P32.0114] 2 BALL BEARING N3.1160 ->[P32.0104]...
  • Page 14 43.0324.02 P320/12.7/0.65-1.05 P320.0001.02 01/10/98 Item-No. Pcs. Description Dimension Field P32.1011 ->[P32.0114] 2 FELT P32.1012 ->[P32.0114] 1 COUPLER P32.1013 ->[P32.0114] 1 LEVER P32.1014 ->[P32.0114] 1 SHAFT [P32.1015] ->[P32.0114] 1 RATCHET WHEEL P32.1016 ->[P32.1015] 1 SPUR WHEEL P32.1017 ->[P32.0114] 1 STANCHION P32.1018 ->[P32.0114]...
  • Page 15 43.0324.02 P320/12.7/0.65-1.05 P320.0001.02 01/10/98 Item-No. Pcs. Description Dimension Field P32.1210 2 CENTERING SLEEVE P32.1211 1 COVER [P32.1212] 1 HANDLE LEVER P32.1215 1 HANDLE SHAFT P32.1216 1 PRESSURE ROLLER P32.1217 3 IDLER GEAR P32.1218 3 DOWEL P32.1220 1 TENSIONING WHEEL P32.1221 ->[P32.0109]...

  • Page 16: Chart Of Types

    0.65 - 1.05 mm / .026 - .041" WARRANTY CONDITIONS AND LIABILITY FROMM HOLDING AG warrants all its strapping tools and -machine heads during a period of 90 days from the date of sale. The warranty includes all deficiencies clearly resulting from poor manufacturing or faulty materials.

  • Page 17: Exchange Of Wearing Parts

    10 EXCHANGE OF WEARING PARTS Remove always the battery from the tool before starting maintenance works. 10.1 Exchange of tensioning wheel and grippers Disassembling • Unscrew end cover P32.1238 and remove it; • Remove the torsion spring N2.5823; • Remove the tensioning body P32.1221; •...

  • Page 18: Exchange Of Cutter, Welding Stop Gripper And Welding Gripper

    10.2 Exchange of cutter, welding stop gripper and welding gripper Disassembling • Unscrew cover P32.1211 and remove it; • Unscrew end cover P32.1238 and remove it; • Disassemble security ring N2.1118, pull the grip axle P32.1215 from the tool; • Tilt down the handle lever P32.1212 and remove it from the tool;...

  • Page 19: Adjustment Of The Coupler P32.1250

    Assembling Assembling in opposite order. Observe the following: • Pay attention to the proper seat of the thrust piece on the spring bolt P32.1030 when lifting the rocker. • Pay attention to the fitting position of the cutter (see drawing). Lubrication •...

  • Page 20: Electric Schematic

    (see name and address on the rear page of this manual). Use original packing. The battery powered plastic strapping tool P320 is a high performance tool. We strongly recommend you to have it serviced by an authorized service shop after 12 months at the latest if used one shift per day. If used two or more shifts per day the tool has to be serviced after a shorter period of time.
