- Page 1 SILVER3H SERIES INSTRUCTION MANUAL | ENGLISH SILVER LINE...

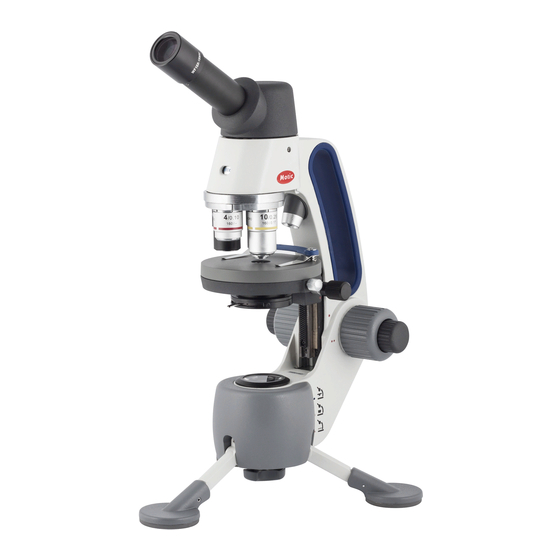

- Page 2 SILVER3H SERIES The SILVER3H Series consists of versatile hybrid microscopes that combine two micro- See for yourself how simple it is to get the scopes in one, making it one of a kind! By using the compound objectives (4X, 10X, and...
-
Page 3: Microscope Components
DIOPTER ADJUSTMENT (SILVER3H-B only) Located on the left eyepiece of the binocular head, this adjustment compensates for the differences between the users’ eyes. SILVER3H SERIES | 03 SILVER LINE... -
Page 4: Iris Diaphragm
The revolving turret that holds the objective lenses. Changes in magnification are accom- plished by rotating different powered objective lenses into the optical path. The nosepiece must “click” into place for the objectives to be in proper alignment. SILVER3H SERIES | 04 SILVER LINE... - Page 5 These components are held onto the stage ring with a thumbscrew. STAGE CLIPS A pair of flexible metal clips attached by spring screws hold the slide in position on the stage. SILVER3H SERIES | 05 SILVER LINE...
-
Page 6: Focal Length
Parallel rays of light after refraction through a lens will be brought to a focus at the focal point. The distance from the optical center of the lens to the focal point is the focal length. SILVER3H SERIES | 06... - Page 7 The battery can be used to power the illumination system for approximately 40 hours. If the microscope is used in the same location, the A/C adapter can remain plugged-in without damage to the battery or recharging system. SILVER3H SERIES | 07 SILVER LINE...
- Page 8 The macro indicator marks are the suggested positions for viewing most macro specimens. The macro stage ring positions may have to be adjusted slightly to find the best working distance for unusual sized specimens.T SILVER3H SERIES | 08 SILVER LINE...
- Page 9 The objectives are parfocalled so that once the 4X objective is focused; only a slight turn of the fine focus is required to refine the focus when changing to higher power objectives. SILVER3H SERIES | 09 SILVER LINE...
- Page 10 4. Turn on the illumination by rotating the on/off & light intensity control dial towards the bottom illuminator. 5. Place the specimen in the specimen cup or on the contrast plate and center it in the optical path. SILVER3H SERIES | 10 SILVER LINE...
- Page 11 (close your right eye), adjust the left eye diopter only (do not adjust the focus control knobs) until the specimen is in sharp focus. The diopter is now set and no further adjustment to the diopter is needed until a new operator uses the scope. SILVER3H SERIES | 11 SILVER LINE...
-
Page 12: Care And Cleaning
SERVICE If your microscope needs to be serviced or if parts need to be replaced, please contact Motic customer service for more information. SILVER3H SERIES... - Page 13 SILVER LINE Motic assures that the microscope in respect of mechanical and optical parts is guaranteed against defects in material and workmanship for ten years. Electrical and electronical components are covered for two years after purchase. Normal wear, routine maintenance, light bulbs, power supplies, rechargers, batteries, fuses, cords, add-on accessories, damage resulting from repair by unauthorized parties, accident, alteration, shipping, misuse or abuse is not covered.
- Page 14 Motic Incorporation Ltd. 130 - 4611 Viking Way. Richmond, BC V6V 2K9 Canada Motic Incorporation Limited Copyright © 2002-2020. All Rights Reserved. Tel: 1-877-977 4717 | Fax: 1-604-303 9043 Design Change: The manufacturer reserves the right to make changes in instrument design in Motic Deutschland GmbH (Germany) accordance with scientific and mechanical progress, without notice and without obligation.
