- Page 1 SILVER100 SERIES INSTRUCTION MANUAL | ENGLISH SILVERLINE...

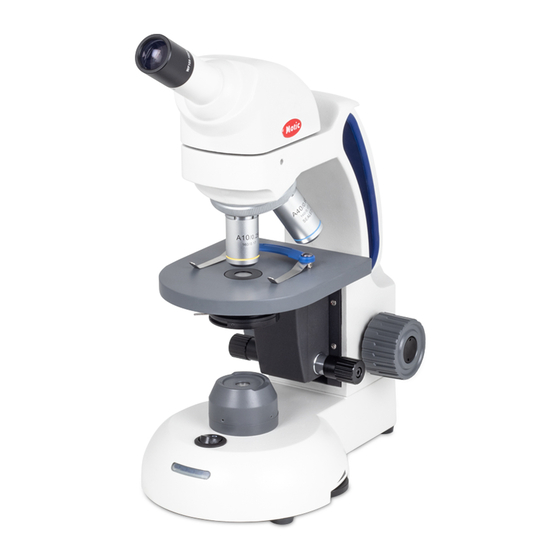

- Page 2 SILVER100 SERIES The SILVER100 Series stands out for its innovation, quality, and student-proof features, offering a wide range of microscopes for educational purposes in high schools up to advanced high school biology. This range of microscopes has cordless LED illumination that provides white light with virtually no heat and a built-in carrying handle.
-
Page 3: Microscope Components
The function of the condenser is to provide full illumination to the specimen plane and to enhance the resolution and contrast of the object being viewed. The condenser can be raised and lowered for precise light control. SILVER100 SERIES | 03 SILVER LINE... - Page 4 ILLUMINATOR The built-in light source which provides the optical system with light. The SILVER100 Series uses an energy efficient 3.4V, 70mW LED which can last up to 50,000 hours of use before replacement. LIGHT INTENSITY CONTROL Controls the illuminator’s brightness.
- Page 5 A pair of flexible metal clips attached by spring screws that hold the slide in position on the stage. X/Y STAGE (SILVER120 only) A stage design with slide holder and x/y movement. Allows to scan the complete glass slide. SILVER100 SERIES | 05 SILVER LINE...
- Page 6 Parallel rays of light after refraction through a lens will converge to a focus at the focal point. The distance from the optical center of the lens to the focal point is the focal length. SILVER100 SERIES | 06 SILVER LINE...
- Page 7 The DIN objectives on your SILVER100 Series Microscopes are parfocaled at the factory to a standard 45mm distance, so that only a slight turn of the fine adjustment is required when a change is made from a lower to higher power.
- Page 8 Once the specimen is in focus with the highest power objective, it will be in focus with each lower power objective. SILVER100 SERIES | 08 SILVER LINE...
- Page 9 The 100XRD oil immersion lens on Motic microscopes has a spring-loaded end to prevent cracking the cover slip upon its initial contact. Once this zone of safety is exceeded by moving the slide further toward the lens, a point can be reached where damage will occur.
-
Page 10: Care And Cleaning
Tension of the focusing movement is controlled by a tension system found on the pinion of the coarse focus control. This can be adjusted by using the wrench included with the microscope. TIGHTENING DIRECTION SILVER100 SERIES | 10 SILVER LINE... - Page 11 The SILVER100 Series is outfitted with a tension collar on the coarse focusing shaft to allow tension on the slip-clutch system to be increased or decreased. See page 11.
- Page 12 SILVER LINE Motic assures that the microscope in respect of mechanical and optical parts is guaranteed against defects in material and workmanship for ten years. Electrical and electronical components are covered for two years after purchase. Normal wear, routine maintenance, light bulbs, power supplies, rechargers, batteries, fuses, cords, add-on accessories, damage resulting from repair by unauthorized parties, accident, alteration, shipping, misuse or abuse is not covered.
- Page 13 Motic Incorporation Ltd. 130 - 4611 Viking Way. Richmond, BC V6V 2K9 Canada Motic Incorporation Limited Copyright © 2002-2020. All Rights Reserved. Tel: 1-877-977 4717 | Fax: 1-604-303 9043 Design Change: The manufacturer reserves the right to make changes in instrument design in Motic Deutschland GmbH (Germany) accordance with scientific and mechanical progress, without notice and without obligation.
