- Page 1 SMZ-161 Series Stereo Zoom Microscopes Instruction Manual...
- Page 2 We are constantly endeavoring to improve our instruments and to adapt them to the requirements of modern research techniques and testing methods. This involves modification to the mechanical structure and optical design of our instruments. Therefore, all descriptions and illustrations in this instruction manual, including all specifications are subject to change without notice.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Section Page INTRODUCTION Nomenclature UNPACKING AND ASSEMBLING THE MICROSCOPE Unpacking the Microscope Assembling the Microscope MICROSCOPE ALIGNMENT AND OPERATION Interpupillary Distance Focusing the Microscope Magnification and Working Distance Changing the Bulb KNOWING YOUR MICROSCOPE Stereo Body with Binocular or Trinocular Head Stand External Illuminator Eyepieces and Auxiliary Objectives... -
Page 4: Introduction

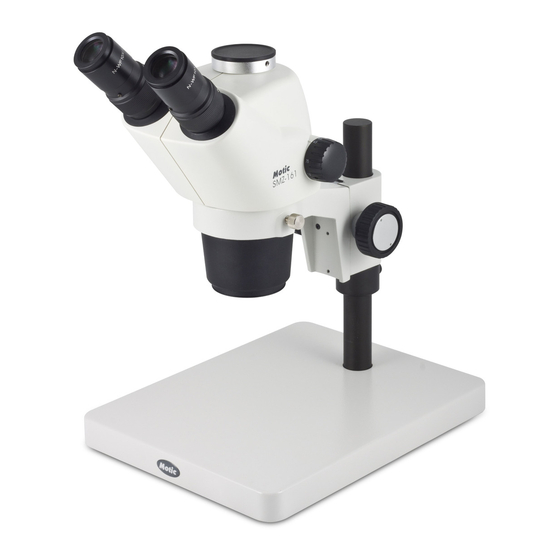

1. INTRODUCTION The Motic SMZ-161 series stereomicroscopes are high performance Greenough design stereomicroscopes with continuous zoom ranges of 6:1. The microscopes in this series allow continuous variable magnification between 7.5X - 45X, while total magnification varies from 2.25X to 180X depending on the eyepieces and auxiliary objectives used. With the bilateral zoom knobs, users are able to adjust magnification while the microscope remains perfectly parfocal. -
Page 5: Nomenclature
1.1 Nomenclature SMZ-161 R2GG / R2LED (Fig.1) SMZ-161 TP (Fig.2) -
Page 6: Unpacking And Assembling The Microscope
2. UNPACKING AND ASSEMBLING THE MICROSCOPE 2.1 Unpacking the Microscope The components for SMZ-161 stereomicroscopes are shipped integrative for protection. Open the styrofoam packing with care and do not leave any components attached to the packing being removed. Do not discard any of the packing materials until all of the components have been identified. If any damage occurs during transit, contact both the carrier and your supplier immediately. -
Page 7: Microscope Alignment And Operation
3. MICROSCOPE ALIGNMENT AND OPERATION 3.1 Interpupillary Distance Adjust the two eyepiece tubes until only one circular field can be seen through the two eyepieces. If two separate circles appear, the interpupillary distance is too large; if two overlapping circles appear, the interpupillary distance is too small. -
Page 8: Changing The Bulb
3.3.3 Working distance varies from 301mm (when using a 0.3X objective lens) to 38.6mm (when a 2X objective lens is used). Normal working distance for standard configuration (1X objective lens) is 110mm. 3.4 Changing the Bulb 3.4.1 Before changing the light bulb, make sure that the power is switched off and the power cord has been disconnected from the main power supply. -
Page 9: Knowing Your Microscope
● With this system, users are able to enjoy excellent depth of field and stereo effects. With the help of precision optics from Motic, perfect parfocality is maintained throughout the entire zoom range. ● The zoom knobs are located on both sides of the microscope and scales are printed on the knobs to display the current magnification. -
Page 10: Stand
4.2 Stand Three different stands are available for the SMZ-161: 4.2.1 R2GG (Fig.1) ● New stand with reflector design to reach more homogeneous illumination and lower temperature. ● The head holder can be moved freely along the vertical post and be removed totally from the stand. The diameter of the post is 25mm. -
Page 11: Eyepieces And Auxiliary Objectives
4.3.3 A 3W LED ring light illuminator for Motic SMZ-161 stereomicroscopes also is available. 4.4 Eyepieces and Auxiliary Objectives 4.4.1 There are eyepieces of different magnifications to choose from including 10X, 15X and 20X. -
Page 12: Other Accessories
4.5 Other Accessories 4.5.1 For the SMZ-161 there are various accessories designed for various applications: Darkfield Condenser ● Must be used with transmitted light. ● By putting this accessory onto the transmitted light outlet (with the frosted glass or stage plate removed) a darkfield effect is created. - Page 13 Photo adapter SY10 ● Attaches to the top of the trinocular tube, allowing any SLR camera to be connected to the microscope for imaging purposes. ● The SY10 adapter for the selected camera has to be screwed into the adapter before connecting to the camera.
-
Page 14: Cleaning And Caring For The Microscope
5. CLEANING AND CARING FOR THE MICROSCOPE To keep the microscope in good working order, avoid dust and water. If any dust or water happens to get into the microscope, fungus will grow, damaging the microscope. Please note that once fungus has grown, even after cleaning, the problem may reoccur. -
Page 15: Moving The Microscope
Under no circumstances should users clean any lens surface with a dry cotton swab, dry cloth or dry lens paper as this will scratch the lens surface causing irreparable damage. Water is not recommended for cleaning lenses as it will leave water stains on the lens surface, possibly leading to fungus growth and causing irreparable damage. -
Page 16: Appendix 1: Smz-161 Specifications
APPENDIX 1: SMZ-161 SPECIFICATIONS Model SMZ-161 B SMZ-161 T Optical system Greenough Binocular head Observation 45° angle Magnification rang (standard) 0.75X--4.5X Zoom ratio WF10X (Ø20) / eyepiece tube adjustable Eyepiece N-WF 15X (Ø16), 20X (Ø13) for optional with RoHS lens Interpupilary adjustment 50mm-75mm Height of eye point... - Page 18 Fax: 86-0592-562 7855 © 2007-2012 Motic China Group Co., Ltd. All rights reserved. Motic is a registered trademark and service mark of Motic China Group Co., Ltd. Microsoft Windows logo is a registered trademark of Microsoft Corporation. All other trademarks are the property of their respective owners.
