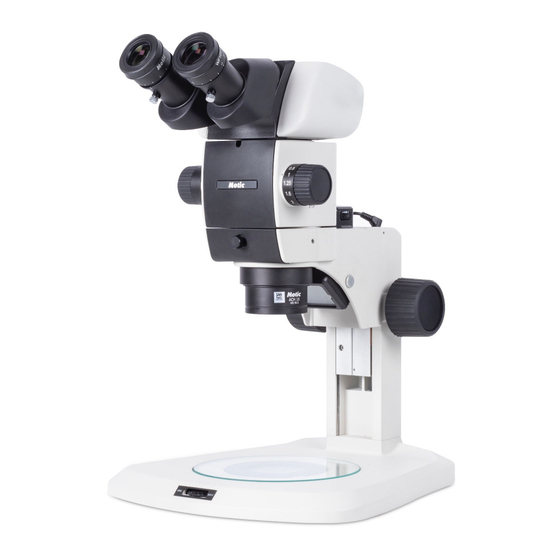

SM7
Stereo Microscope
Operation Manual
WWW.MOTIC.COM
MOTIC HONG KONG LIMITED
If the equipment is used in a manner
not specified by the manufacturer,
the protection provided by the
Note
equipment may be impaired.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Motic SM7

  • Page 1 Stereo Microscope Operation Manual If the equipment is used in a manner not specified by the manufacturer, the protection provided by the Note equipment may be impaired. WWW.MOTIC.COM MOTIC HONG KONG LIMITED...
  • Page 2 The information in this publication has been carefully checked and is believed to be entirely accurate at the time of publication. MOTIC assumes no responsibility, however, for possible errors or omissions, or for any consequences resulting from the use of the information contained herein.
  • Page 3: Table Of Contents

    CONTENTS Introduction 1.1 Indication for use (Intended use) 1.2 Classification Safety Information 2.1 Introduction 2.2 Safety Symbols SM7 STEREO Microscope 2.3 Environment factors 2.4 Safety Precautions Operating Condition Getting Ready Maintenance and Storage Standard Components Nomenclature and Controls Observation Procedure 8.1 Preparation...
  • Page 4 9.2.4 Using an Eyepiece Micrometer Disk 9.2.5 Selecting the Light Path (HSZ700.2) 9.3 Microscope Body 9.3.1 Zoom Magnification Indication 9.3.2 Switching the Click Stop ON-OFF 9.4 TV Observation and Photomicrography 9.4.1 Selecting TV Adapter Magnification 9.4.2 Mounting the TV Adapter 9.4.3 Selecting the TV Camera Light Path 10.
  • Page 5: Introduction

    1. INTRODUCTION 1.1 Indication for use (Intended use) This instrument has been designed to be used to observe magnified images of specimens in routine and research applications. Do not use this instrument for any purpose other than its intended use. 1.2 Classification ●...
  • Page 6: Safety Information

    2. SAFETY INFORMATION 2.1 Introduction Safety is everyone’s responsibility. The safe use of this equipment is largely dependent upon the installer, user, operator, and maintainer. It is imperative that personnel study and become familiar with this entire manual before attempting to install, use, clean, service or adjust this equipment and any associated accessories.
  • Page 7: Safety Symbols Sm7 Stereo Microscope

    2.2 Safety Symbols SM7 STEREO Microscope The International Electro technical Commission (IEC) has established a set of symbols. The symbols are shown as below. This applies only to the instrument that has the certification symbol printed explicitly on the product label or sticker.
  • Page 8: Environment Factors

    2.3 Environment factors Avoid the following environments for operation or storage: ● Where the equipment is exposed to water vapor. Don’t operate an equipment with a wet hand. ● For indoor use only ● Where the equipment is exposed to direct sunlight. ●...
  • Page 9: Safety Precautions

    The equipment must be operated only by, or under direct supervision of a properly trained and qualified person. Modifications of this equipment may only be carried out by Motic’s service technicians or other authorized persons. Customer maintenance of this equipment may only be performed as stated in the User’s Manual and Service Manual.
  • Page 10 11. Do not force cable connections. If a cable does not connect easily, be sure that the connector (plug) is appropriate for the receptacle (socket). If you cause any damage to a cable connector(s) or receptacle(s), let the damage(s) be repaired by an authorized service technician. Please do not pull on any cable.
  • Page 11 In case the specimen is damaged by erroneous operation, promptly take the infection prevention measures. The desktop should be a level surface with an inclination of less than 3°, and the load to the microscope should be less than 7 kg. The microscope may become unstable when certain intermediate attachment and/or photography unit are mounted on it.
  • Page 12: Operating Condition

    3. OPERATING CONDITION ● As long as the device is in its original package it can be exposed to the following environmental conditions for up to 15 weeks for shipping and storage without risk of damage: ● Temperature range: from -40°C to +70°C; a.
  • Page 13: Maintenance And Storage

    5. MAINTENANCE AND STORAGE ● To clean the lenses and other glass components, simply blow dirty away using a commercially available blower and wipe gently using a piece of cleaning paper (or clean gauze). If a lens is stained with fingerprints or oil smudges, wipe it gauze slightly moistened with commercially available absolute alcohol.
  • Page 14: Standard Components

    6. STANDARD COMPONENTS Standard composition of stereomicroscope is as following. ● Zoom Microscope body (HSZ700.1) ● Observation tube (HSZ700.2) ● Stand (HSZ700.8 or HSZ700.9) ● Objective Lens (HSZ700.5A or HSZ700.7A) ● Eyepiece A WARNING If the light illumination of the stand is not working, please check the power code, the switch, and fuses. If you cannot solve the problem, please contact the local distributor in your province or country at first: Only HSZ700.9 A WARNING...
  • Page 15: Nomenclature And Controls

    7. NOMENCLATURE & CONTROLS...
  • Page 16: Observation Procedure

    8. OBSERVATION PROCEDURE ● If you have not assembled the microscope yet, please read “Chapter 12.Assembly". 8.1 Preparation ● Confirm the mounting, particularly that of the observation tube ● Adjust the rotation tension of the focus adjustment knob ● Prepare the light source as required. 8.2 Procedure ●...
  • Page 17: Operation

    9. OPERATION 9.1 Stand 9.1.1 Using the Stage ● When reflected light illumination is used, the stage plate can be placed either the white or black surface facing up depending on the specimen. ● When transmitted light illumination is used, use the transparent glass stage plate. 9.1.2 Adjusting the Focus Adjustment Knob Tension (Fig.1) CAUTION This operation is intended to facilitate the rotation of the knobs while preventing spontaneous drop of the...
  • Page 18: Observation Tube

    Observation Tube 9.2.1 Adjusting the interpupillary Distance (Fig. 2) CAUTION Always hold the eyepiece sleeves with both hands when adjusting the interpupillary distance. While holding the left and right eyepiece sleeves with both hands, look through the eyepieces and adjust for binocular vision until the left and right fields of view coincide completely. (Fig.
  • Page 19 NOTE Set the zoom adjustment knob for the highest magnification again and check the image focusing. The diopter adjustment is complete if the image in accurate focus. If not, repeat steps 3 to 5 above. [Eyepieces with eyepiece micrometer disk] ●...
  • Page 20: Using The Eye Shades

    NOTE Diopter scale of the 10X eyepieces The valid range of the diopter scale is between -8 and +5 but a slight margin is added to it. Therefore, the diopter value may exceed +5 or -8 when it is adjusted to the maximum. In this case, whether the diopter value is over -8 or under +5 can be identified by the length of the eyepiece.
  • Page 21: Using An Eyepiece Micrometer Disk

    9.2.4 Using an Eyepiece Micrometer Disk (Fig.5) ● Rotate the disk-mounting ring of the eyepiece counterclockwise to remove. ● Prepare an eyepiece micrometer disk, remove dust and dirt from its surface, and fit it into the disk-mounting ring so that the engraving on the micrometer disk faces downward. ●...
  • Page 22: Microscope Body

    9.3 Microscope Body 9.3.1 Zoom Magnification Indication (Fig.7) The body zoom magnification is indicated on zoom adjustment knob (right). The total magnification can be calculated with the following formula. 9.3.2 Switching the Click Stop ON-OFF (Fig.7) NOTE The click stop function provides a click stop for each zoom magnification value indicated on the zoom adjustment knob.
  • Page 23: Tv Observation And Photomicrography

    9.4 TV Observation and Photomicrography 9.4.1 Selecting TV Adapter Magnification Set the magnification of the TV adapter according to the size of the CCD in the TV camera or digital camera. The following figures show the TV observation areas when the 10X eyepieces with FN 22 are used.
  • Page 24: Troubleshooting Guide

    Under certain conditions, performance of the microscope may be adversely affected by factors other than defects. If problems occur, Please review the following list and take remedial action as needed. If you cannot solve the problem after checking the entire list, please contact Motic. Problem...
  • Page 25: Specifications

    11. SPECIFICATIONS Item Specifications Magnification: 0.8-5.6x Zoom ratio values: 7:1 (0.8-5.6x) Click stop for each zoom magnification: On-Off switching possible Zoom Body (HSZ-ZB700) Zoom magnification indication: 0.8, 1, 1.25, 1.6, 2, 2.5, 3.2, 4, 5, 5.6 Objective lens mounting: Screw mounting into thread Trinocular tube, Binocular tube View inclination angle: 30°...
  • Page 26 Model Working distance ACHlx W/D: 90.5mm Objective lens PLAPOlx W/D: 81mm ACH1.5X W/D: 45.5mm ACH2X W/D: 33.5mm lOX / FN22 / Diopter adjustment: -8D - +5D / Eyepiece micrometer dist mountable 15X / FN16 / Diopter adjustment: -8D - +5D / Eyepieces Eyepiece micrometer dist mountable 2GX / FN12.5 / Diopter adjustment: -8D - +5D /...
  • Page 27: Assembly

    12. ASSEMBLY 12.1 Assembly Diagram The diagram below shows the sequence of assembly of the various modules. The Objective lens can do removal and assemble easily by screw type. When assembling the microscope, make sure that all parts are free of dust and dirt, and avoid scratching any parts or touching glass surfaces.
  • Page 28: Detailed Assembly Procedures

    12.2 Detailed Assembly Procedures 12.2.1 Installing the Microscope Body (Fig. 9) ● Loosen the body clamping knob and insert the microscope body gently into the mounting hole of the standard stand. ● Position the microscope body so that it faces frontward and tighten the body clamping knob. NOTE: If it is required to position the zoom adjustment knob...
  • Page 29: Mounting The Stage Plate

    12.2.3 Mounting the Stage Plate ● To mount the stage plate, fit the stage plate into the stage plate mounting hole. (Fig. 11) NOTE: The stage plate has the milky white and black surfaces. Select the side facing up according to the specimen.
  • Page 30: Service Information

    If the instrument appears malfunctioning, before calling a customer service, it is highly recommended to check the instrument according to the troubleshooting procedure in “Chapter 10” of this manual. If any problem persists or the instrument is damaged or malfunctioning, contact Motic or local distributor for service with the following information: ●...
  • Page 31 Fax: 86-0592-562 7855 © 2002-2021 Motic China Group Co., Ltd. All rights reserved. Motic is a registered trademark and service mark of Motic China Group Co., Ltd. Microsoft Windows logo is a registered trademark of Microsoft Corporation. All other trademarks are the property of their respective owners.
