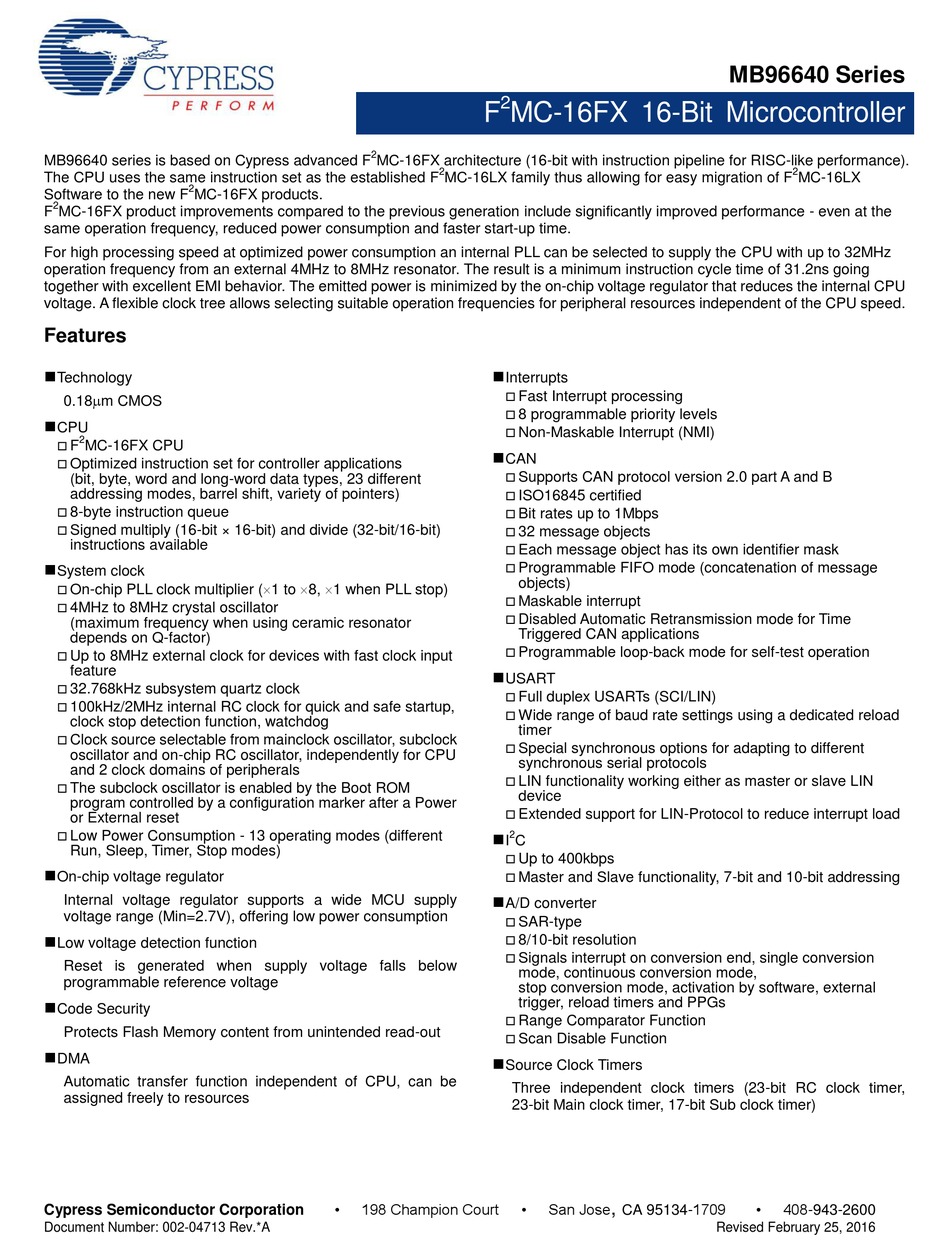

MB96640 series is based on Cypress advanced F
The CPU uses the same instruction set as the established F
2
Software to the new F
MC-16FX products.
2
F
MC-16FX product improvements compared to the previous generation include significantly improved performance - even at the
same operation frequency, reduced power consumption and faster start-up time.
For high processing speed at optimized power consumption an internal PLL can be selected to supply the CPU with up to 32MHz
operation frequency from an external 4MHz to 8MHz resonator. The result is a minimum instruction cycle time of 31.2ns going
together with excellent EMI behavior. The emitted power is minimized by the on-chip voltage regulator that reduces the internal CPU
voltage. A flexible clock tree allows selecting suitable operation frequencies for peripheral resources independent of the CPU speed.
Features
Technology
0.18m CMOS
CPU
2
F
MC-16FX CPU
Optimized instruction set for controller applications
(bit, byte, word and long-word data types, 23 different
addressing modes, barrel shift, variety of pointers)
8-byte instruction queue
Signed multiply (16-bit × 16-bit) and divide (32-bit/16-bit)
instructions available
System clock
On-chip PLL clock multiplier (1 to 8, 1 when PLL stop)
4MHz to 8MHz crystal oscillator
(maximum frequency when using ceramic resonator
depends on Q-factor)
Up to 8MHz external clock for devices with fast clock input
feature
32.768kHz subsystem quartz clock
100kHz/2MHz internal RC clock for quick and safe startup,
clock stop detection function, watchdog
Clock source selectable from mainclock oscillator, subclock
oscillator and on-chip RC oscillator, independently for CPU
and 2 clock domains of peripherals
The subclock oscillator is enabled by the Boot ROM
program controlled by a configuration marker after a Power
or External reset
Low Power Consumption - 13 operating modes (different
Run, Sleep, Timer, Stop modes)
On-chip voltage regulator
Internal voltage regulator supports a wide MCU supply
voltage range (Min=2.7V), offering low power consumption
Low voltage detection function
Reset is generated when supply voltage falls below
programmable reference voltage
Code Security
Protects Flash Memory content from unintended read-out
DMA
Automatic transfer function independent of CPU, can be
assigned freely to resources
Cypress Semiconductor Corporation
Document Number: 002-04713 Rev.*A
2
F
MC-16FX 16-Bit Microcontroller
2
MC-16FX architecture (16-bit with instruction pipeline for RISC-like performance).
2
MC-16LX family thus allowing for easy migration of F
Interrupts
CAN
USART
2
I
A/D converter
Source Clock Timers
Three independent clock timers (23-bit RC clock timer,
23-bit Main clock timer, 17-bit Sub clock timer)
198 Champion Court
Fast Interrupt processing
8 programmable priority levels
Non-Maskable Interrupt (NMI)
Supports CAN protocol version 2.0 part A and B
ISO16845 certified
Bit rates up to 1Mbps
32 message objects
Each message object has its own identifier mask
Programmable FIFO mode (concatenation of message
objects)
Maskable interrupt
Disabled Automatic Retransmission mode for Time
Triggered CAN applications
Programmable loop-back mode for self-test operation
Full duplex USARTs (SCI/LIN)
Wide range of baud rate settings using a dedicated reload
timer
Special synchronous options for adapting to different
synchronous serial protocols
LIN functionality working either as master or slave LIN
device
Extended support for LIN-Protocol to reduce interrupt load
C
Up to 400kbps
Master and Slave functionality, 7-bit and 10-bit addressing
SAR-type
8/10-bit resolution
Signals interrupt on conversion end, single conversion
mode, continuous conversion mode,
stop conversion mode, activation by software, external
trigger, reload timers and PPGs
Range Comparator Function
Scan Disable Function
,
San Jose
CA 95134-1709
MB96640 Series
2
MC-16LX
408-943-2600
Revised February 25, 2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MB96640 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Cypress MB96640 Series

  • Page 1 MB96640 Series MC-16FX 16-Bit Microcontroller MB96640 series is based on Cypress advanced F MC-16FX architecture (16-bit with instruction pipeline for RISC-like performance). The CPU uses the same instruction set as the established F MC-16LX family thus allowing for easy migration of F...
  • Page 2 MB96640 Series  Hardware Watchdog Timer  External Interrupts Hardware watchdog timer is active after reset  Edge or Level sensitive   Window function of Watchdog Timer is used to select the  Interrupt mask bit per channel lower window limit of the watchdog interval ...
  • Page 3: Table Of Contents

    MB96640 Series Contents 1. Product Lineup .................................. 5 2. Block Diagram ................................... 6 3. Pin Assignment ................................. 7 4. Pin Description .................................. 8 5. Pin Circuit Type ................................10 6. I/O Circuit Type................................13 7. Memory Map ..................................18 8. RAMSTART Addresses ..............................19 9.
  • Page 4 MB96640 Series 14.4.9 External Input Timing ..............................48 14.4.10 I C Timing ................................. 49 14.5 A/D Converter ................................50 14.5.1 Electrical Characteristics for the A/D Converter ......................50 14.5.2 Accuracy and Setting of the A/D Converter Sampling Time ..................51 14.5.3 Definition of A/D Converter Terms ..........................
  • Page 5: Product Lineup

    MB96640 Series 1. Product Lineup Features MB96640 Remark Product Type Flash Memory Product Subclock Subclock can be set by software Dual Operation Flash Memory 64.5KB + 32KB 10KB MB96F643R, MB96F643A Product Options 128.5KB + 32KB 16KB MB96F645R, MB96F645A R: MCU with CAN 256.5KB + 32KB...
  • Page 6: Block Diagram

    MB96640 Series 2. Block Diagram CKOT0_R, CKOT1, CKOT1_R CKOTX0, CKOTX1, CKOTX1_R X0, X1 X0A, X1A RSTX DEBUG I/F Interrupt Flash Clock & 16FX Controller Memory A Mode Controller 16FX Core Bus (CLKB) Peripheral Peripheral Voltage Boot ROM Watchdog Controller Bus Bridge...
  • Page 7: Pin Assignment

    MB96640 Series 3. Pin Assignment (Top view) 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51 P00_3 / INT6_R / PPG8_B P10_3 / PPG7...
  • Page 8: Pin Description

    MB96640 Series 4. Pin Description Pin name Feature Description ADTG A/D converter trigger input pin AINn QPRC Quadrature Position/Revolution Counter Unit n input pin A/D converter channel n input pin AVcc Supply Analog circuits power supply pin AVRH A/D converter high reference voltage input pin...
  • Page 9 MB96640 Series Pin name Feature Description TTGn Programmable Pulse Generator n trigger input pin CAN interface n TX output pin Supply Power supply pin Supply Power supply pin Real Time clock output pin WOT_R Relocated Real Time clock output pin...
  • Page 10: Pin Circuit Type

    MB96640 Series 5. Pin Circuit Type Pin no. I/O circuit type* Pin name Supply P03_7 / INT1 / SIN1 P13_0 / INT2 / SOT1 P13_1 / INT3 / SCK1 P13_2 / PPG0 / TIN0 / FRCK1 P13_3 / PPG1 / TOT0 / WOT...
  • Page 11 MB96640 Series Pin no. I/O circuit type* Pin name P08_7 / AN23 / PPG7_B P09_0 / AN24 / PPG8_R P09_1 / AN25 / PPG9_R P09_2 / AN26 / PPG10_R P09_3 / AN27 / PPG11_R P17_1 / PPG12_R P17_2 / PPG13_R...
  • Page 12 MB96640 Series Pin no. I/O circuit type* Pin name P00_4 / INT7_R / PPG9_B P00_5 / IN6 / TTG2 / TTG6 / PPG10_B P00_6 / IN7 / TTG3 / TTG7 / PPG11_B P00_7 / INT14 P01_0 / SCK7 P01_1 / CKOT1 / OUT0 / SOT7...
  • Page 13: I/O Circuit Type

    MB96640 Series 6. I/O Circuit Type Type Circuit Remarks High-speed oscillation circuit: • Programmable between oscillation mode (external crystal or resonator connected to X0/X1 pins) and Fast external Clock Input (FCI) mode (external clock connected to X0 pin) • Feedback resistor = approx.
  • Page 14 MB96640 Series Type Circuit Remarks Low-speed oscillation circuit shared with GPIO functionality Pull-up control • Feedback resistor = approx.  5.0M • GPIO functionality selectable P-ch P-ch Pout (CMOS level output (I 4mA, I = -4mA), Automotive input with input shutdown...
  • Page 15 MB96640 Series Type Circuit Remarks CMOS hysteresis input pin Power supply input protection circuit P-ch N-ch • A/D converter ref+ (AVRH)/ ref- (AVRL) power supply input pin with protection circuit • Without protection circuit P-ch against V for pins AVRH/AVRL N-ch •...
  • Page 16 MB96640 Series Type Circuit Remarks • CMOS level output = 4mA, I = -4mA) Pull-up control • CMOS hysteresis input with input shutdown function • Programmable pull-up resistor P-ch Pout P-ch • Analog input N-ch Nout Hysteresis input Standby control...
  • Page 17 MB96640 Series Type Circuit Remarks • CMOS level output = 3mA, I = -3mA) • CMOS hysteresis input with Pull-up control input shutdown function • Programmable pull-up resistor *: N-channel transistor has slew Pout P-ch P-ch rate control according to I spec, irrespective of usage.
  • Page 18: Memory Map

    MB96640 Series 7. Memory Map FF:FFFF USER ROM* DE:0000 DD:FFFF Reserved 10:0000 Boot-ROM 0F:C000 Peripheral 0E:9000 Reserved 01:0000 ROM/RAM MIRROR 00:8000 Internal RAM bank0 RAMSTART0* Reserved 00:0C00 Peripheral 00:0380 00:0180 GPR* 00:0100 00:00F0 Reserved 00:0000 Peripheral *1: For details about USER ROM area, see “User Rom Memory Map For Flash Devices” on the following pages.
  • Page 19: Ramstart Addresses

    MB96640 Series 8. RAMSTART Addresses Bank 0 Devices RAMSTART0 RAM size MB96F643 10KB 00:5A00 MB96F645 16KB 00:4200 MB96F646 24KB 00:2200 MB96F647 28KB 00:1200 Document Number: 002-04713 Rev.*A Page 19 of 65...
  • Page 20: User Rom Memory Map For Flash Devices

    MB96640 Series 9. User Rom Memory Map For Flash Devices MB96F643 MB96F645 MB96F646 MB96F647 CPU mode Flash memory Flash size Flash size Flash size Flash size address mode address 64.5KB + 32KB 128.5KB + 32KB 256.5KB + 32KB 384.5KB + 32KB...
  • Page 21: Serial Programming Communication Interface

    MB96640 Series 10. Serial Programming Communication Interface USART pins for Flash serial programming (MD = 0, DEBUG I/F = 0, Serial Communication mode) MB96640 Pin Number USART Number Normal Function SIN0 USART0 SOT0 SCK0 SIN1 USART1 SOT1 SCK1 SIN2 USART2...
  • Page 22: Interrupt Vector Table

    MB96640 Series 11. Interrupt Vector Table Index in Vector Offset in Cleared by Vector name ICR to Description number vector table program CALLV0 CALLV instruction CALLV1 CALLV instruction CALLV2 CALLV instruction CALLV3 CALLV instruction CALLV4 CALLV instruction CALLV5 CALLV instruction...
  • Page 23 MB96640 Series Index in Vector Offset in Cleared by Vector name ICR to Description number vector table program PPG2 Programmable Pulse Generator 2 PPG3 Programmable Pulse Generator 3 PPG4 Programmable Pulse Generator 4 PPG5 Programmable Pulse Generator 5 PPG6 Programmable Pulse Generator 6...
  • Page 24 MB96640 Series Index in Vector Offset in Cleared by Vector name ICR to Description number vector table program Reserved OCU6 Output Compare Unit 6 OCU7 Output Compare Unit 7 Reserved Reserved Reserved Reserved FRT0 Free-Running Timer 0 FRT1 Free-Running Timer 1...
  • Page 25 MB96640 Series Index in Vector Offset in Cleared by Vector name ICR to Description number vector table program Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved FLASHA Flash memory A interrupt Reserved Reserved Reserved QPRC0 Quad Position/Revolution counter 0...
  • Page 26: Handling Precautions

    Any semiconductor devices have inherently a certain rate of failure. The possibility of failure is greatly affected by the conditions in which they are used (circuit conditions, environmental conditions, etc.). This page describes precautions that must be observed to minimize the chance of failure and to obtain higher reliability from your Cypress semiconductor devices. 12.1 Precautions for Product Design This section describes precautions when designing electronic equipment using semiconductor devices.
  • Page 27: Precautions For Package Mounting

    (wave soldering) method of applying liquid solder. In this case, the soldering process usually causes leads to be subjected to thermal stress in excess of the absolute ratings for storage temperature. Mounting processes should conform to Cypress recommended mounting conditions.
  • Page 28: Precautions For Use Environment

    CAUTION: Plastic molded devices are flammable, and therefore should not be used near combustible substances. If devices begin to smoke or burn, there is danger of the release of toxic gases. Customers considering the use of Cypress products in other special environmental conditions should consult with sales representatives.
  • Page 29: Handling Devices

    MB96640 Series 13. Handling Devices Special care is required for the following when handling the device: • Latch-up prevention • Unused pins handling • External clock usage • Notes on PLL clock mode operation • Power supply pins (V •...
  • Page 30: Single Phase External Clock For Sub Oscillator

    MB96640 Series 13.3.2 Single phase external clock for Sub oscillator When using a single phase external clock for the Sub oscillator, “External clock mode” must be selected and X0A/P04_0 pin must be driven. X1A/P04_1 pin can be configured as GPIO.
  • Page 31: Pin Handling When Not Using The A/D Converter

    MB96640 Series 13.8 Pin handling when not using the A/D converter If the A/D converter is not used, the power supply pins for A/D converter should be connected such as AV , AV = AVRH = 13.9 Notes on Power-on To prevent malfunction of the internal voltage regulator, supply voltage profile while turning the power supply on should be slower than 50s from 0.2V to 2.7V.
  • Page 32: Electrical Characteristics

    MB96640 Series 14. Electrical Characteristics 14.1 Absolute Maximum Ratings Rating Parameter Symbol Condition Unit Remarks Power supply - 0.3 + 6.0 voltage* Analog power supply - 0.3 + 6.0 = AV voltage* ≥ AVRH, ≥ AVRL, Analog reference AVRH, - 0.3 + 6.0...
  • Page 33 MB96640 Series • Note that if the +B input is applied during power-on, the power supply is provided from the pins and the resulting supply voltage may not be sufficient to operate the Power reset. • The DEBUG I/F pin has only a protective diode against VSS. Hence it is only permitted to input a negative clamping current (4mA).
  • Page 34: Recommended Operating Conditions

    MB96640 Series 14.2 Recommended Operating Conditions = AV = 0V) Value Parameter Symbol Unit Remarks Power supply , AV voltage Maintains RAM data in stop mode 1.0F (Allowance within ± 50%) 3.9µF (Allowance within ± 20%) Please use the ceramic capacitor or the Smoothing capacitor F...
  • Page 35: Dc Characteristics

    MB96640 Series 14.3 DC Characteristics 14.3.1 Current Rating = AV = 2.7V to 5.5V, V = AV = 0V, T = - 40°C to + 125°C) Value Parameter Symbol Conditions Unit Remarks name PLL Run mode with = +25°C CLKS1/2 = CLKB = CLKP1/2 = 32MHz = +105°C...
  • Page 36 MB96640 Series Value Parameter Symbol Conditions Unit Remarks name = +25°C PLL Sleep mode with CLKS1/2 = CLKP1/2 = 32MHz = +105°C CCSPLL (CLKRC and CLKSC stopped) 15.5 = +125°C Main Sleep mode with = +25°C CLKS1/2 = CLKP1/2 = 4MHz, = +105°C...
  • Page 37 MB96640 Series Value Parameter Symbol Conditions Unit Remarks name A 1800 2250 = +25°C PLL Timer mode with A CLKPLL = 32MHz (CLKRC and 3220 = +105°C CCTPLL CLKSC stopped) A 4025 = +125°C A Main Timer mode with = +25°C CLKMC = 4MHz, A...
  • Page 38 MB96640 Series Value Parameter Symbol Conditions Unit Remarks name A = +25°C Power supply current A = +105°C in Stop mode A 1845 = +125°C Flash Power Down A CCFLASHPD current Power supply current A = +25°C Low voltage detector...
  • Page 39: Pin Characteristics

    MB96640 Series 14.3.2 Pin Characteristics = AV = 2.7V to 5.5V, V = AV = 0V, T = - 40°C to + 125°C) Value Parameter Symbol Pin name Conditions Unit Remarks CMOS Hysteresis Port  0.7 + 0.3 input inputs...
  • Page 40 MB96640 Series Value Parameter Symbol Pin name Conditions Unit Remarks 4.5V ≤ V ≤ 5.5V = -4mA 4mA type 2.7V ≤ V - 0.5 < 4.5V "H" level = -1.5mA output 4.5V ≤ V ≤ 5.5V voltage = -3mA 3mA type 2.7V ≤...
  • Page 41: Ac Characteristics

    MB96640 Series 14.4 AC Characteristics 14.4.1 Main Clock Input Characteristics = AV = 2.7V to 5.5V, VD=1.8V±0.15V, V = AV = 0V, T = - 40°C to + 125°C) Value Parameter Symbol Pin name Unit Remarks When using a crystal...
  • Page 42: Sub Clock Input Characteristics

    MB96640 Series 14.4.2 Sub Clock Input Characteristics = AV = 2.7V to 5.5V, V = AV = 0V, T = - 40°C to + 125°C) Value Parameter Symbol Conditions Unit Remarks name When using an 32.768 oscillation circuit X0A, When using an...
  • Page 43: Built-In Rc Oscillation Characteristics

    MB96640 Series 14.4.3 Built-in RC Oscillation Characteristics = AV = 2.7V to 5.5V, V = AV = 0V, T = - 40°C to + 125°C) Value Parameter Symbol Unit Remarks When using slow frequency of RC oscillator Clock frequency When using fast frequency of RC...
  • Page 44: Operating Conditions Of Pll

    MB96640 Series 14.4.5 Operating Conditions of PLL = AV = 2.7V to 5.5V, V = AV = 0V, T = - 40°C to + 125°C) Value Parameter Symbol Unit Remarks PLL oscillation stabilization wait time For CLKMC = 4MHz LOCK...
  • Page 45: Power-On Reset Timing

    MB96640 Series 14.4.7 Power-on Reset Timing = AV = 2.7V to 5.5V, V = AV = 0V, T = - 40°C to + 125°C) Value Parameter Symbol Pin name Unit Power on rise time 0.05 Power off time Document Number: 002-04713 Rev.*A...
  • Page 46: Usart Timing

    MB96640 Series 14.4.8 USART Timing = AV = 2.7V to 5.5V, V = AV = 0V, T = - 40°C to + 125°C, C =50pF) 4.5V  V 2.7V  V  4.5V 5.5V Parameter Symbol Conditions Unit name Serial clock cycle time...
  • Page 47 MB96640 Series Examples: SCYC 4  t CLKP1 5  t , 6  t CLKP1 CLKP1 7  t , 8  t CLKP1 CLKP1 SCYC SLOVI OVSHI IVSHI SHIXI Internal shift clock mode SLSH SHSL SLOVE IVSHE SHIXE External shift clock mode Document Number: 002-04713 Rev.*A...
  • Page 48: External Input Timing

    MB96640 Series 14.4.9 External Input Timing = AV = 2.7V to 5.5V, V = AV = 0V, T = - 40°C to + 125°C) Value Parameter Symbol Pin name Unit Remarks Pnn_m General Purpose I/O ADTG A/D Converter trigger input...
  • Page 49: I 2 C Timing

    MB96640 Series 14.4.10 I C Timing = AV = 2.7V to 5.5V, V = AV = 0V, T = - 40°C to + 125°C) High-speed Typical mode mode* Parameter Symbol Conditions Unit SCL clock frequency (Repeated) START condition hold s...
  • Page 50: A/D Converter

    MB96640 Series 14.5 A/D Converter 14.5.1 Electrical Characteristics for the A/D Converter = AV = 2.7V to 5.5V, V = AV = 0V, T = - 40°C to + 125°C) Value Parameter Symbol Pin name Unit Remarks Resolution Total error - 3.0...
  • Page 51: Accuracy And Setting Of The A/D Converter Sampling Time

    MB96640 Series 14.5.2 Accuracy and Setting of the A/D Converter Sampling Time If the external impedance is too high or the sampling time too short, the analog voltage charged to the internal sample and hold capacitor is insufficient, adversely affecting the A/D conversion precision.
  • Page 52: Definition Of A/D Converter Terms

    MB96640 Series 14.5.3 Definition of A/D Converter Terms • Resolution : Analog variation that is recognized by an A/D converter. • Nonlinearity error : Deviation of the actual conversion characteristics from a straight line that connects the zero transition point (0b0000000000 ←→ 0b0000000001) to the full-scale transition point (0b1111111110 ←→...
  • Page 53 MB96640 Series AVRH - AVRL 1LSB (Ideal value) = 1024  - {1LSB (N - 1) + 0.5LSB} Total error of digital output N = 1LSB : A/D converter digital output value. : Voltage at which the digital output changes from 0x (N + 1) to 0xN.
  • Page 54: Low Voltage Detection Function Characteristics

    MB96640 Series 14.6 Low Voltage Detection Function Characteristics = AV = 2.7V to 5.5V, V = AV = 0V, T = - 40°C to + 125°C) Value Parameter Symbol Conditions Unit CILCR:LVL = 0000 2.70 2.90 3.10 CILCR:LVL = 0001 2.79...
  • Page 55 MB96640 Series RCR:LVDE Low voltage detection Stabilization time ···Low voltage detection Low voltage detection function disable function enable function enable··· LVDSTAB Document Number: 002-04713 Rev.*A Page 55 of 65...
  • Page 56: Flash Memory Write/Erase Characteristics

    MB96640 Series 14.7 Flash Memory Write/Erase Characteristics = AV = 2.7V to 5.5V, V = AV = 0V, T = - 40°C to + 125°C) Value Parameter Conditions Unit Remarks ≤ + 105°C Large Sector Includes write time prior to...
  • Page 57: Example Characteristics

    MB96640 Series 15. Example Characteristics This characteristic is an actual value of the arbitrary sample. It is not the guaranteed value.  MB96F647 Run Mode = 5.5V) 100.00 PLL clock (32MHz) 10.00 Main osc. (4MHz) 1.00 RC clock (2MHz) RC clock (100kHz) 0.10...
  • Page 58 MB96640 Series  MB96F647 Timer Mode = 5.5V) 10.000 PLL clock (32MHz) 1.000 Main osc. (4MHz) 0.100 RC clock (2MHz) RC clock (100kHz) 0.010 Sub osc. (32kHz) 0.001 [ºC] Stop Mode = 5.5V) 1.000 0.100 0.010 0.001 [ºC] Document Number: 002-04713 Rev.*A...
  • Page 59 MB96640 Series  Used setting Selected Source Mode Clock/Regulator and FLASH Settings Clock Run mode CLKS1 = CLKS2 = CLKB = CLKP1 = CLKP2 = 32MHz Main osc. CLKS1 = CLKS2 = CLKB = CLKP1 = CLKP2 = 4MHz RC clock fast...
  • Page 60: Ordering Information

    MB96640 Series 16. Ordering Information MCU with CAN controller Part number Flash memory Package* MB96F643RBPMC-GSE1 Flash A 100-pin plastic LQFP (96.5KB) (FPT-100P-M20) MB96F643RBPMC-GSE2 MB96F645RBPMC-GSE1 Flash A 100-pin plastic LQFP (160.5KB) (FPT-100P-M20) MB96F645RBPMC-GSE2 MB96F646RBPMC-GSE1 Flash A 100-pin plastic LQFP (288.5KB) (FPT-100P-M20)
  • Page 61: Package Dimension

    MB96640 Series 17. Package Dimension 100-pin plastic LQFP Lead pitch 0.50 mm Package width × 14.0 mm × 14.0 mm package length Lead shape Gullwing Sealing method Plastic mold Mounting height 1.70 mm Max Weight 0.65 g Code P-LFQFP100-14×14-0.50 (FPT-100P-M20)
  • Page 62: Major Changes

    MB96640 Series 18. Major Changes Spansion Publication Number: MB96640_DS704-00009 Page Section Change Results Revision 1.0 Initial release Revision 2.0 Changed the description of “External Interrupts” Features Interrupt mask and pending bit per channel → Interrupt mask bit per channel 26 to 29 Handling Precautions...
  • Page 63 MB96640 Series Page Section Change Results Electrical Characteristics Changed the Note 7. Flash Memory Write/Erase While the Flash memory is written or erased, shutdown of the Characteristics external power (VCC) is prohibited. In the application system where the external power (VCC) might be shut down while writing, be sure to turn the power off by using an external voltage detector.
  • Page 64: Document History

    MC-16FX 16-Bit Microcontroller Document Number: 002-04713 Orig. of Submission Revision Description of Change Change Date Migrated to Cypress and assigned document number 002-04713 KSUN 01/31/2014 No change to document contents or format. 5149634 KSUN 02/25/2016 Updated to Cypress format. Document Number: 002-04713 Rev.*A...
  • Page 65 ("Unintended Uses"). A critical component is any component of a device or system whose failure to perform can be reasonably expected to cause the failure of the device or system, or to affect its safety or effectiveness. Cypress is not liable, in whole or in part, and Company shall and hereby does release Cypress from any claim, damage, or other liability arising from or related to all Unintended Uses of Cypress products.
