DOREL ASIA

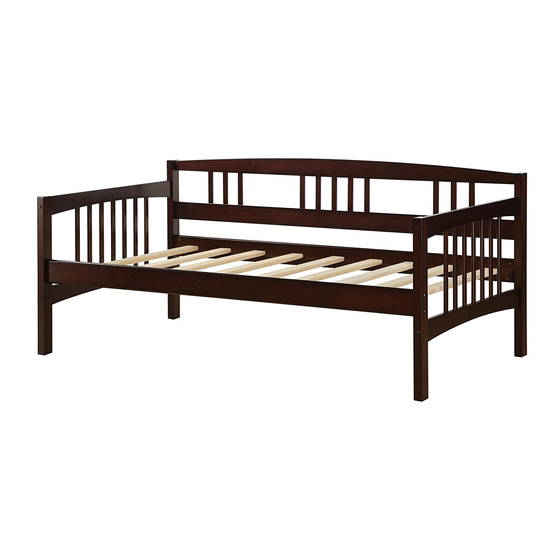

TWIN WOODEN DAYBED
CONTAINS
INFORMATION. PLEASE READ AND
KEEP FOR FUTURE REFERENCE.
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
WM6394E
WM6394W
0-65857-16370-4
0-65857-16371-1
THIS INSTRUCTION BOOKLET
IMPORTANT
(TAKEN FROM CARTON)
______________________________
Date of purchase:
_______ / _______ / _______
Tel #: 1-800-295-1980
NEED HELP!
E-Mail: das@dorel.com
CALL US FOR ASSISTANCE
Fax #: 514-353-7819
1-800-295-1980
DO NOT RETURN PRODUCT
E-MAIL:DAS@DOREL.COM
MODEL NO:
ESPRESSO
WHITE
UPC CODE:
ESPRESSO
WHITE
NOTE:
SAFETY
Lot number:
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dorel Asia WM6394E
Summary of Contents for Dorel Asia WM6394E

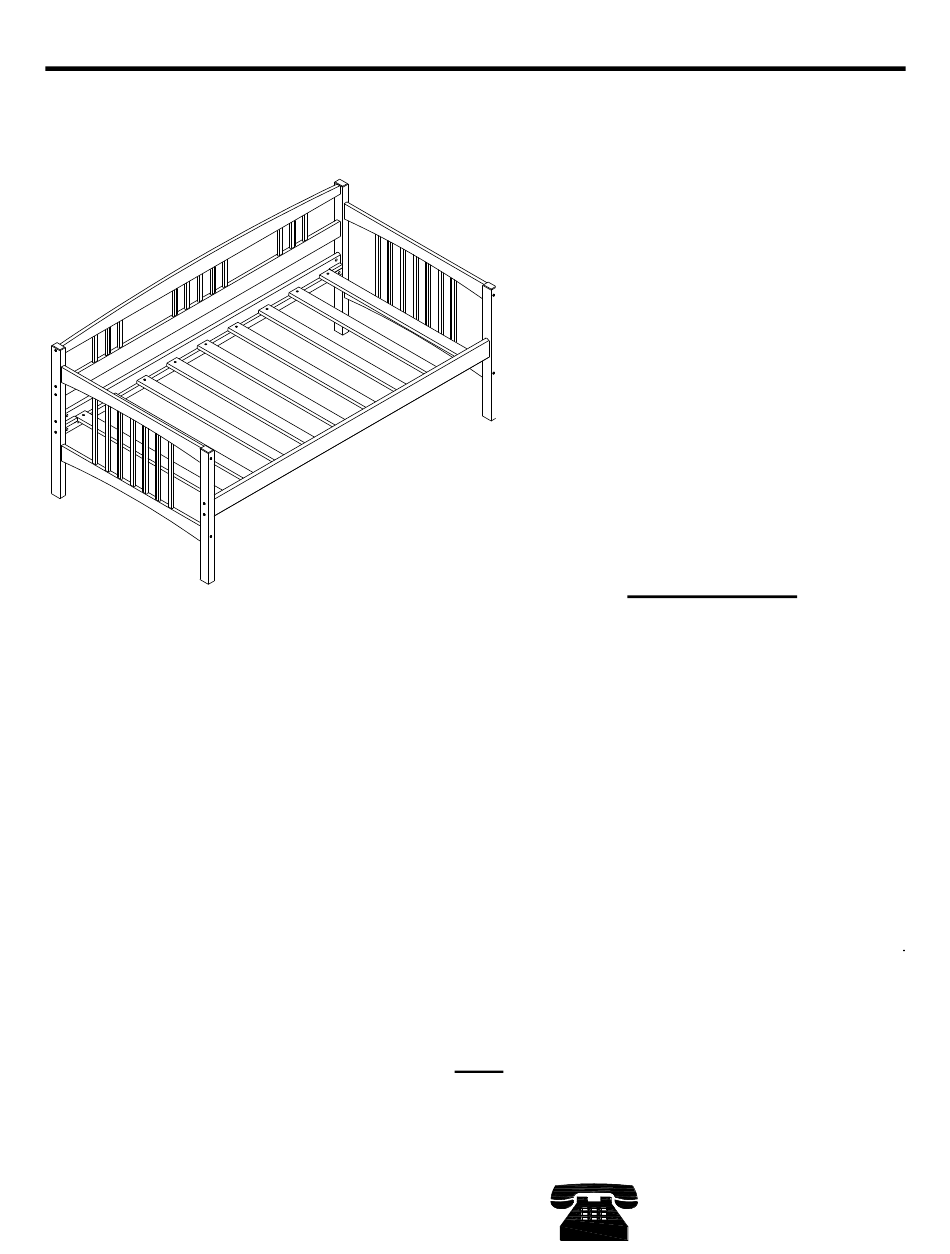

- Page 1 DOREL ASIA TWIN WOODEN DAYBED MODEL NO: WM6394E ESPRESSO WM6394W WHITE UPC CODE: 0-65857-16370-4 ESPRESSO 0-65857-16371-1 WHITE NOTE: THIS INSTRUCTION BOOKLET IMPORTANT CONTAINS SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Lot number: (TAKEN FROM CARTON) ______________________________ Date of purchase: _______ / _______ / _______ DO NOT RETURN PRODUCT TO THE STORE.
-
Page 2: Care And Cleaning
Check bolts/screws periodically and tighten them if necessary. LIMITED WARRANTY Dorel Asia warrants its product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers 1 year from the date of original purchase. -
Page 3: Hardware List
TWIN WOODEN DAYBED WM6394E / WM6394W HARDWARE LIST Ø1/4" X 80mm Ø11.8mm X 15mm JOINT CONNECTOR (4mm HEX HEAD) BARREL NUT 8 PCS 8 PCS Ø6.5mm X 80mm Ø10mm X 50mm WOOD JOINT CONNECTOR (4mm HEX HEAD) WOOD DOWEL 14 PCS 20 PCS Ø4mm X 35mm... -
Page 4: Parts List
TWIN WOODEN DAYBED WM6394E / WM6394W PARTS LIST LEFT BACK POST RIGHT BACK POST TOP GUARDRAIL 1 PC 1 PC 1 PC FRONT / BACK RAIL SLAT SPACE BLOCK 2 PCS 9 PCS 2 PCS... - Page 5 TWIN WOODEN DAYBED WM6394E / WM6394W PARTS LIST SIDE FRAME TOP RAIL SIDE FRAME BOTTOM RAIL SIDE FRAME POST 2 PCS 2 PCS 14 PCS GUARDRAIL POST BOTTOM GUARDRAIL LEFT FRONT POST 11 PCS 1 PC 1 PC RIGHT FRONT POST...
- Page 6 TWIN WOODEN DAYBED WM6394E / WM6394W STEP 1 Insert wood dowels (4) into ends of side frame top rail (G) and side frame bottom rail (H). Insert stoppers (7) and side frame posts (I) into the side frame bottom rail (H) and push down until firmly in place.
- Page 7 TWIN WOODEN DAYBED WM6394E / WM6394W STEP 2 Insert wood dowels (4) into top/bottom guardrails (C & K) as shown. Attach top/bottom guardrails (C & K) to the left back post (A) with wood joint connectors (3). Use Hex key (6) to tighten them.
- Page 8 TWIN WOODEN DAYBED WM6394E / WM6394W STEP 3 Insert wood dowels (4) into top/bottom guardrails (C & K) as shown. Attach top/bottom guardrails (C & K) to the right back post (B) with wood joint connectors (3). Insert barrel nuts (2) into front/back rails (D). Attach front/back rails (D) to the posts (B & M) with joint...
- Page 9 TWIN WOODEN DAYBED WM6394E / WM6394W STEP 4 Attach slats (E) to front/back rails (D) with flat head screws (5). Use space blocks (F) to space them out evenly. Tighten all flat head screws (5) with a Phillips head screwdriver (not included).
- Page 10 TWIN WOODEN DAYBED WM6394E / WM6394W CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the aximum weights indicated may result in instability or cause possible injury.
- Page 11 MODEL #:WM6394E / WM6394W Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com Customer Service Fax Number 514-353-7819...
