DOREL ASIA
Model No.:

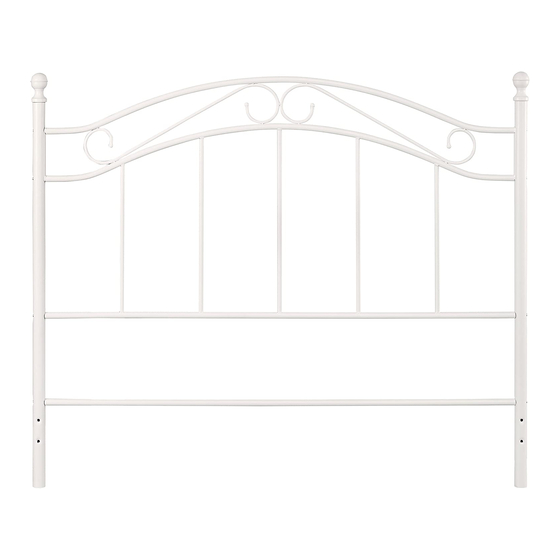

FULL/QUEEN METAL
WM5278Q
HEADBOARD
UPC CODE:
0-65857-15659-1
NOTE:
THIS INSTRUCTION BOOKLET
CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND
KEEP FOR FUTURE REFERENCE.
Lot number:
(TAKEN FROM CARTON)
Date of purchase:
_______ / _______ / _______
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
Tel # : 1-800-295-1980
E-Mail: das@dorel.com
Fax #: 514-353-7819
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Dorel Asia WM5278Q
Summary of Contents for Dorel Asia WM5278Q
- Page 1 DOREL ASIA Model No.: FULL/QUEEN METAL WM5278Q HEADBOARD UPC CODE: 0-65857-15659-1 NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Lot number: (TAKEN FROM CARTON) Date of purchase: _______ / _______ / _______ DO NOT RETURN PRODUCT TO THE STORE.
- Page 2 Check bolts/screws periodically and tighten them if necessary. LIMITED WARRANTY DOREL ASIA warrants its product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers 1 year from the date of original purchase. This warranty is valid only upon presentation of proof of purchase.
- Page 3 FULL/QUEEN METAL HEADBOARD WM5278Q THREADED PIN - 2 PCS...
- Page 4 FULL/QUEEN METAL HEADBOARD WM5278Q PARTS LIST HEADBOARD PANEL ADAPTER PLATE HEADBOARD - 1 PC 1 PC 2 PCS LONG BED POST BOTTOM CROSS BAR FINIAL BED POST - 2 PCS 2 PCS 1 PC 2 PCS...
- Page 5 FULL/QUEEN METAL HEADBOARD WM5278Q STEP 1 Attach finials (E) to bed posts (A) with threaded pins (2).
- Page 6 FULL/QUEEN METAL HEADBOARD WM5278Q STEP 2 Attach bed posts (A) to headboard (B) and bottom cross bar (D) with hex socket head bolts (1). Leave the bolts loose to facilitate assembly. Once all bolts are installed, use hex key (3) to tighten bolts (1).
- Page 7 FULL/QUEEN METAL HEADBOARD WM5278Q NOTE: THE BED FRAME IS NOT INCLUDED AND MUST BE PURCHASED SEPARATLEY. THE FOLLOWING ILLUSTRATIONS ARE FOR REFERENCE ONLY. Attaching the Bed Frame to make a Queen Metal Bed. Attach bed frame (purchased separately) to bed posts (A) using bolts (1), spring washers (5)
- Page 8 FULL/QUEEN METAL HEADBOARD WM5278Q Attaching the Bed Frame to make a Full Size Bed Step 1 Attach adapter plates (C) to bed posts (A) using bolts (1), spring washers (5) and nuts (6). Use hex key (3) to tighten bolts and open end wrench (4) to tighten the nuts.
- Page 9 FULL/QUEEN METAL HEADBOARD WM5278Q NOTE: THE BED FRAME IS NOT INCLUDED AND MUST BE PURCHASED SEPARATELY. THE FOLLOWING ILLUSTRATIONS ARE FOR REFERENCE ONLY. Step 2 Attach the bed frame (purchased separately) to adapter plate (C) using bolts (7), spring washers (8) and nuts (9). Use hex key (3) to tighten bolts and the open end wrench (4) to...
- Page 10 FULL/QUEEN METAL HEADBOARD WM5278Q CAUTION: This unit is intended for use only with the products and/ or maximum weights indicated. Use with other products and/ or products heavier than the maximum weights indicated may result in instability or cause possible injury.
- Page 11 Also available at Walmart & Walmart.com Mainstays Adjustable Metal Bed Frame Model # 3215098W / MS12-084-006-10 - 9 Gliders and Headboard attachement included - Fits all standard headboards Adjusts to the following sizes: - Twin - 39 in x 75 in - Full - 54 in x 75 in - Queen - 60 in x 80 in...
-
Page 12: Customer Service
MODEL #: WM5278Q Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com Customer Service Fax Number 514-353-7819...
