USE AND CARE GUIDE

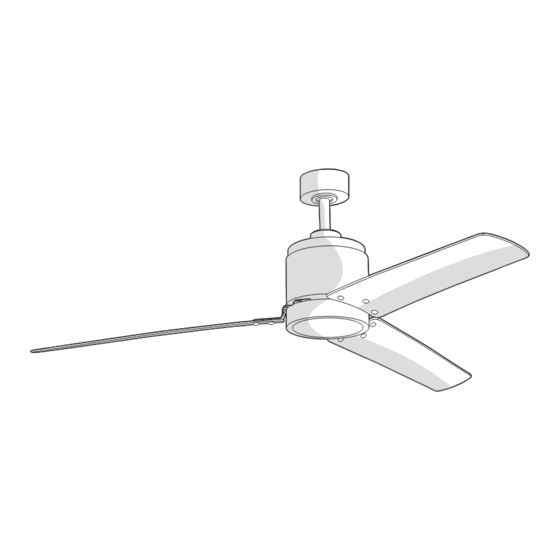

RAILEY 60 IN. CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
HOMEDEPOT.COM/HOMEDECORATORS
Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to find
this fan and click the link of visual instruction in the product overview section.
1-800-986-3460
THANK YOU
THANK YOU
Item #1001 202 939
Model #YG446-BN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RAILEY YG446-BN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Home Decorators Collection RAILEY YG446-BN

  • Page 1 USE AND CARE GUIDE RAILEY 60 IN. CEILING FAN Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Visual instruction of how to install this fan: Visit www.homedepot.com and enter either the Item or Model number to find...
  • Page 2: Table Of Contents

    Table of Contents Table of Contents ............Operation ..............Remote Control Operating Instructions ........Safety Information ............Installing the Remote Control Holder ........Reverse Switch Operating Instructions ........Warranty ................. Care and Cleaning ............Pre-Installation .............. Troubleshooting ............Tools Required ................. Service Parts ...............
  • Page 3: Safety Information

    Safety Information To reduce the risk of electric shock, ensure electricity has However, there is no guarantee that interference will not occur been turned off at the circuit breaker or fuse box before in a particular installation. If this equipment does cause harmful beginning.
  • Page 4: Warranty

    Warranty The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any glass), to be free from defects in workmanship and material present at time of shipment from the factory for a period of five years after the date of purchase by the original purchaser.
  • Page 5: Hardware Included

    Pre-Installation (continued) HARDWARE INCLUDED HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Part Description Description Quantity Quantity Plastic wire nut Canopy mounting screw with lock washer (preassembled) Blade attachment screw and fiber washer Remote control holder mounting screw Remote control holder plug (preassembled) Clevis pin (preassembled) Cotter pin (preassembled)
  • Page 6: Package Contents

    Pre-Installation (continued) PACKAGE CONTENTS PACKAGE CONTENTS Part Part Description Description Quantity Quantity Part Part Description Description Quantity Quantity Mounting bracket (preassembled) Blade arm Canopy ring (preassembled) Medallion Canopy 16 watt LED light kit Canopy bottom cover (preassembled) Light kit cover Hanger ball/downrod assembly Receiver Coupling cover...
  • Page 7: Dual Mounting Instructions

    Pre-Installation (continued) DUAL MOUNTING INSTRUCTIONS DUAL MOUNTING INSTRUCTIONS This ceiling fan is supplied with two types of hanging assemblies: the standard ceiling installation using the downrod with ball and socket mounting, and the "close-to-ceiling" mounting. The "close-to-ceiling" mounting is recommended in rooms with less than 8 ft. ceilings or in areas where additional space is desired from the floor to the fan blades.
  • Page 8: Installation

    Installation MOUNTING OPTIONS MOUNTING OPTIONS NOTE: You may need a longer downrod to maintain proper WARNING: To reduce the risk of fire, electric shock, or blade clearance when installing on a steep, sloped ceiling. personal injury, mount the fan to an outlet box marked The maximum angle allowable is 18°...
  • Page 9: Assembly

    Assembly — Standard Ceiling Mounting Preparing the canopy Preparing the motor □ Remove the cotter pin (GG) and clevis pin (FF), and □ Remove the canopy ring (B) from the canopy (C). loosen the two collar setscrews (JJ) from the motor collar.
  • Page 10: Close-To-Ceiling Mounting

    Assembly — Close-to-Ceiling Mounting Preparing the canopy Preparing the motor □ □ Remove the cotter pin (GG) and clevis pin (FF), and Remove the canopy ring (B) from the canopy (C). loosen the two collar setscrews (JJ) from the motor □...
  • Page 11: Hanging The Fan

    Assembly — Hanging the Fan Attaching the fan to the electrical box WARNING: To reduce the risk of fire, electric shock or other personal injury, mount the fan only to an outlet box or supporting system marked acceptable for fan support and use the mounting screws provided with the outlet box.
  • Page 12 Assembly — Hanging the Fan (continued) Preparing the receiver and remote control WARNING: To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring. CAUTION: Do not use with a wall light dimmer switch. If you feel you do not have enough electrical wiring knowledge or experience, have your fan installed by a licensed electrician.
  • Page 13 Assembly — Hanging the Fan (continued) Making the electrical connections Ground conductor Black White WARNING: Check to see that all connections are tight, including ground, and that no bare wire is visible at the wire nuts, except for the ground wire. CAUTION: Do not use with a wall light dimmer switch.
  • Page 14 Assembly — Hanging the Fan (continued) Standard ceiling mounting Close-to-ceiling mounting WARNING: Make sure the tab on the mounting bracket (A) WARNING: Locking slots of the canopy (C) are provided properly sits in the groove in the hanger ball (E) before only as an aid to mounting.
  • Page 15: Attaching The Fan Blades

    Assembly — Attaching the Fan Blades Removing the rubber Attaching the blades to the packing mounts blade arms □ □ The fan motor assembly (G) is shipped with rubber Attach the blades (H) to the blade arms (I) using the three blade attachment screws and fiber washers (CC) packing mounts (TT) to prevent movement during and the medallions (J).
  • Page 16: Installing The Light Kit

    Assembly — Installing the Light Kit Attaching the LED light kit and light kit cover CAUTION: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at the fuse box. Turning power off using the fan switch is not sufficient to prevent electric shock.
  • Page 17: Operation

    Operation REMOTE CONTROL OPERATING INSTRUCTIONS REMOTE CONTROL OPERATING INSTRUCTIONS □ Install the 12V MN21/A23 battery (NN) (included) into the remote control (N). To prevent damage to the remote control (N), remove the battery if not used for long periods. □ Restore power to the ceiling fan and test for proper operation. HI, MED, LOW buttons: Sets the fan speed.
  • Page 18: Reverse Switch Operating Instructions

    Operation (continued) REVERSE SWITCH OPERATING INSTRUCTIONS REVERSE SWITCH OPERATING INSTRUCTIONS The reverse switch is located on the top of the motor housing. Slide the switch to the left for warm weather operation. Slide the switch to the right for cool weather operation. Reverse switch NOTE: Wait for the fan to stop before reversing the direction of the blade rotation.
  • Page 19: Troubleshooting

    Troubleshooting WARNING: Make sure the power is off at the electrical panel box before you attempt any repairs. Refer to step 7 “Making the electrical connections” on page 13. Problem Problem Solution Solution □ Check the main and branch circuit fuses or breakers. □...
  • Page 20: Service Parts

    Service Parts Part Part Description Description Part Part Description Description Mounting bracket (preassembled) Plastic wire nut Canopy ring (preassembled) Canopy mounting screw with lock washer Canopy (preassembled) Canopy bottom cover (preassembled) Blade attachment screw and washer Hanger ball/downrod assembly Remote control holder mounting screw Coupling cover Remote control holder plug (preassembled) Fan motor assembly...
  • Page 21 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use.
