I/O Configuration (Recommended)
This Configuration utilizes many of the commonly used ProPAC-3 product features.
1. Connector P4 (AC Power) is pre-wired with 18" leads. This is the only connector with external leads.
Shown with bold lines.
2. Input 1 (DC Isolated solid state Input Module)
- Used for counting 1:1 Product Pulses inputs
- Shielded cable must be used when using DC product pulse inputs
Continue to next page>

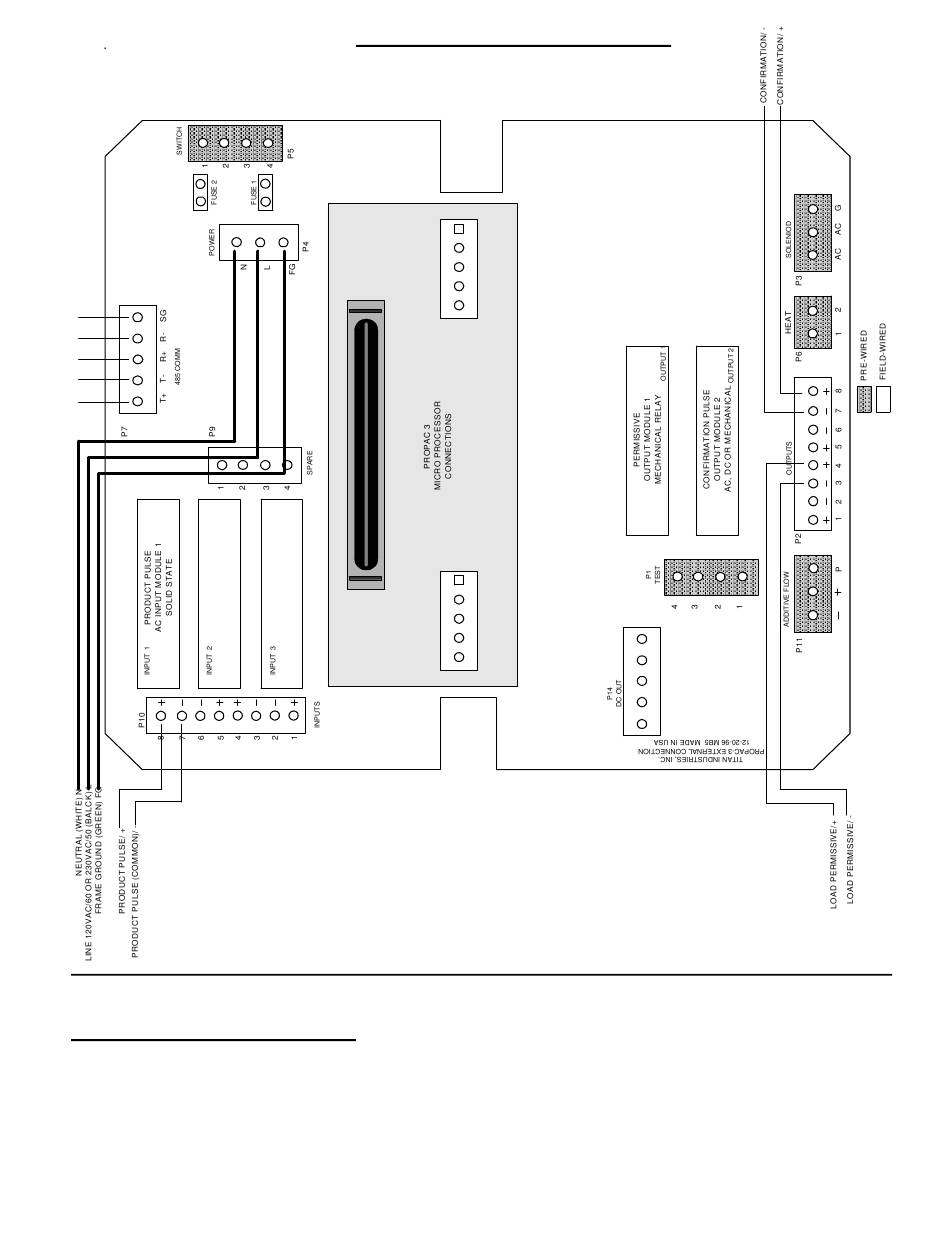

Pro Pac-3 Main Circuit Board Wiring Schematic
I/O Configuration (Recommended )
48
-12
GND
+5
GND
+12
