Titan ProPAC-3 Manual page 25

3.3 Multiple Station Injector - Load State Operation
Provided the ProPAC-3 is programmed Authorize-Enable, and Permissive Input programmed (1,2, or 3), on
receipt of a Permissive Input (rate selection), the ProPAC-3 will enter the Load State for the channel
permitted, and the injector will automatically display the appropriate Load Screen.

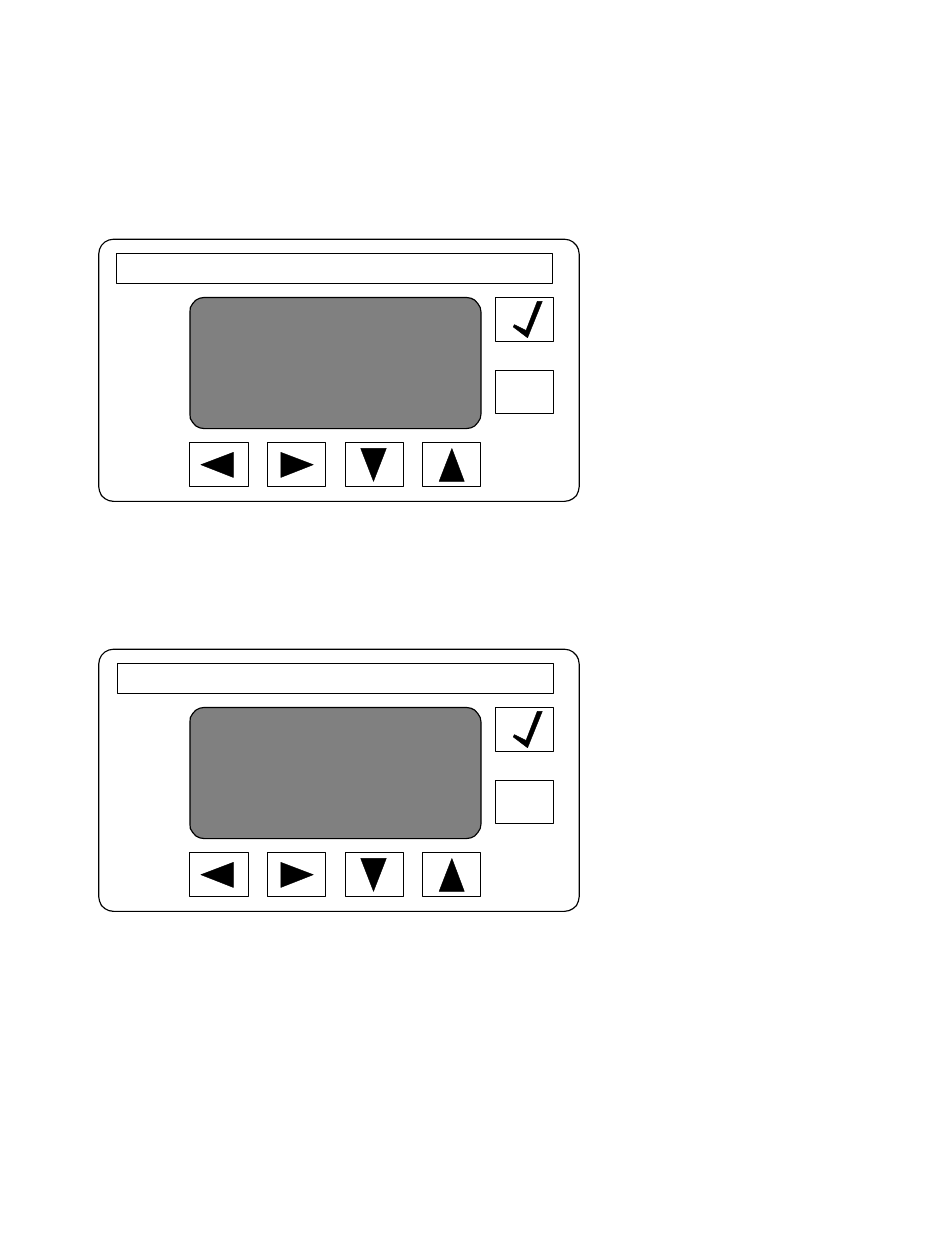

Load Screen - Load Start
TITAN PRO PAC-3
Ch1 Load Additive
0.000
Ch1 Load Product
0
During the product load, the Batch Injection counter will increment each injection of additive, as
programmed. If the Additive Set is programmed 100.00 cc's, and the Product Set is programmed 40, the
ProPAC-3 will inject 100 cc's of additive every 40 gallons of product loaded.
Load Screen - Load End
TITAN PRO PAC-3
Ch1 Load Additive
2.774
Ch1 Load Product
4,200
Note: The Channel ID defaults: Ch1, Ch2, Ch3 can be changed to a six character alphanumeric ID. The
Channel ID has been changed to Red Dye in Fig 6 next page.
BATCH CONTROLLER
X
BATCH CONTROLLER
100.2
X
25
Load Additive (0.000), Load Product (0),
and the Batch Injection (0.0) shall be
displayed, on the receipt of product pulses.
Provided 1:1 product pulses are provided to
the injector, on receipt of each pulse the
Load Product total shall increment 1 gallon
for each product pulse received.
If the Product Set is programmed 40, the
ProPAC-3 will inject, as programmed, each
40 gallons of product loaded
Load Additive, Load Product, and the Batch
Injection (0.0), will increment accordingly
during product loading activity.
At the end of the product load, the Load Screen
shall display the total additive loaded and the
total product loaded during the load period.
Additionally, the Batch Injection will display the
last injected additive volume (cc's).
Following the removal of the Permissive Input,
the ProPAC-3 will revert to cycling the various
Idle State Screens.
.
